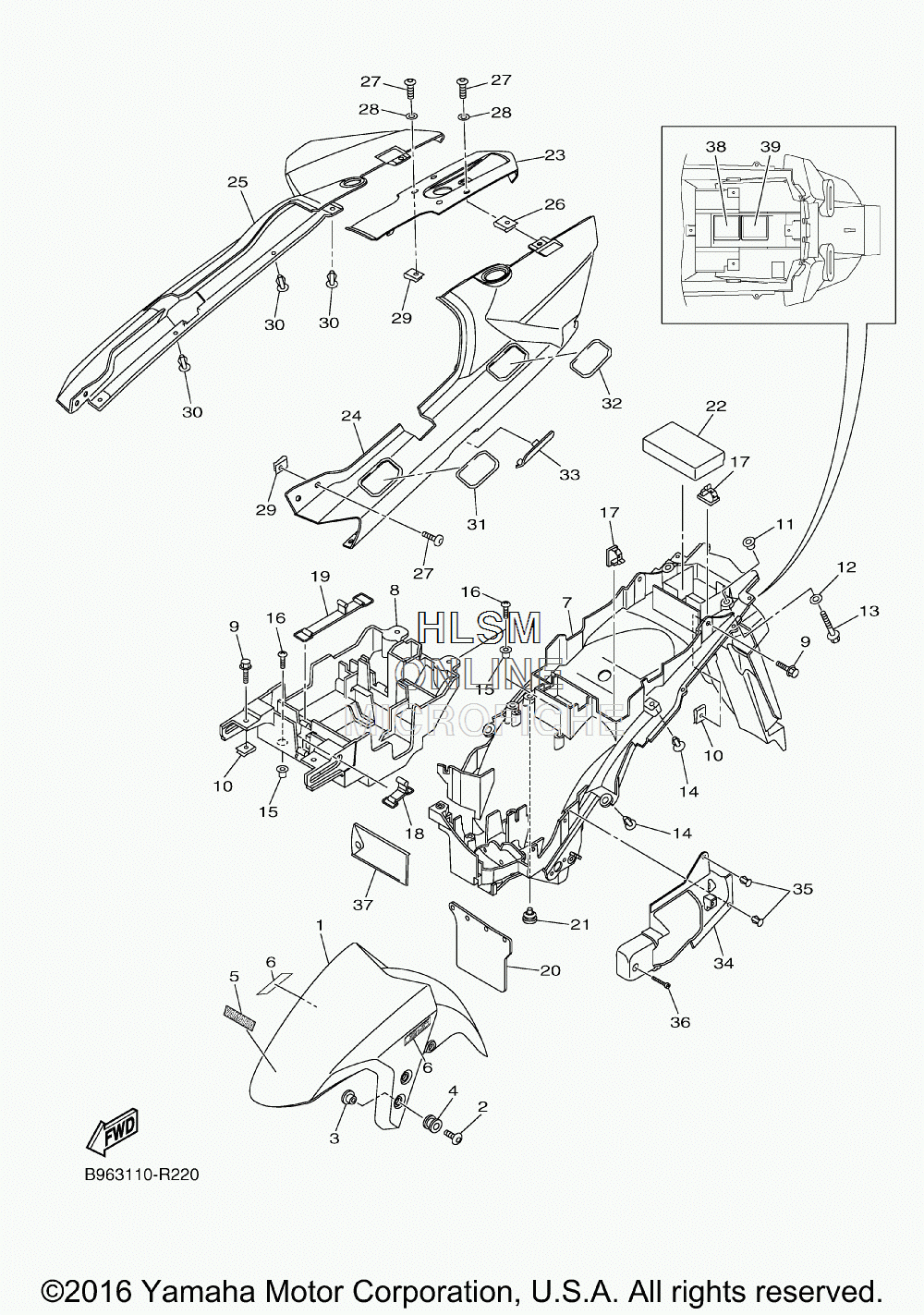

FENDER - FRONT / REAR для Yamaha FJR 1300ES - 2017 года выпуска
-
№АртикулНазвание
-
11MD-21511-00-P0 FENDER, FRONT (SMX - BLACK METALLIC)FENDER, FRONT (SMX - BLACK METALLIC)
-
290111-06043-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
390387-065J6-00 COLLARCOLLAR
-
490480-12072-00 GROMMETGROMMET
-
53WF-2153E-70-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
62BS-21578-00-00 EMBLEMEMBLEM
-
7B88-21611-00-00 FENDER, REARFENDER, REAR
-
81MD-2160E-00-00 BOXBOX
-
990119-06159-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090183-060A7-00 NUT, SPRINGNUT, SPRING
-
1190387-06231-00 COLLARCOLLAR
-
1290201-07081-00 WASHER, PLATEWASHER, PLATE
-
1395802-06040-00 BOLT, FLANGEBOLT, FLANGE
-
1490269-06081-00 RIVETRIVET
-
1590338-08226-00 PLUGPLUG
-
1697702-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
1790464-13185-00 CLAMPCLAMP
-
18B88-2811G-00-00 BANDBAND
-
194J2-82131-01-00 BAND, BATTERYBAND, BATTERY
-
205JW-21621-10-00 FLAPFLAP
-
2190480-10M36-00 GROMMETGROMMET
-
22B95-8252U-00-00 COVERCOVER
-
23B88-21651-00-P3 COVER, REAR FENDER (SMX - BLACK METALLIC)COVER, REAR FENDER (SMX - BLACK METALLIC)
-
24B88-2471K-00-P3 COVER, TAIL 1 (SMX - BLACK METALLIC)COVER, TAIL 1 (SMX - BLACK METALLIC)
-
25B88-2472K-00-P3 COVER, TAIL 2 (SMX - BLACK METALLIC)COVER, TAIL 2 (SMX - BLACK METALLIC)
-
2690183-051A0-00 NUT, SPRINGNUT, SPRING
-
2790111-05044-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2890202-05180-00 WASHER, PLATEWASHER, PLATE
-
2990183-050A0-00 NUT, SPRINGNUT, SPRING
-
3090269-06081-00 RIVETRIVET
-
313P6-2163E-01-P3 COVER, REAR FENDER 2 (SMX - BLACK METALLIC)COVER, REAR FENDER 2 (SMX - BLACK METALLIC)
-
323P6-2163E-11-P3 COVER, REAR FENDER 2 (SMX - BLACK METALLIC)COVER, REAR FENDER 2 (SMX - BLACK METALLIC)
-
333P6-2163F-01-P3 COVER, REAR FENDER 3 (SMX - BLACK METALLIC)COVER, REAR FENDER 3 (SMX - BLACK METALLIC)
-
341MC-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
3590269-06081-00 RIVETRIVET
-
3697702-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
37B95-28100-00-00 TOOL KITTOOL KIT
-
3813S-21684-10-00 PLATE, ROUTING (CALIF ONLY)PLATE, ROUTING (CALIF ONLY)
-
391MC-21686-00-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
