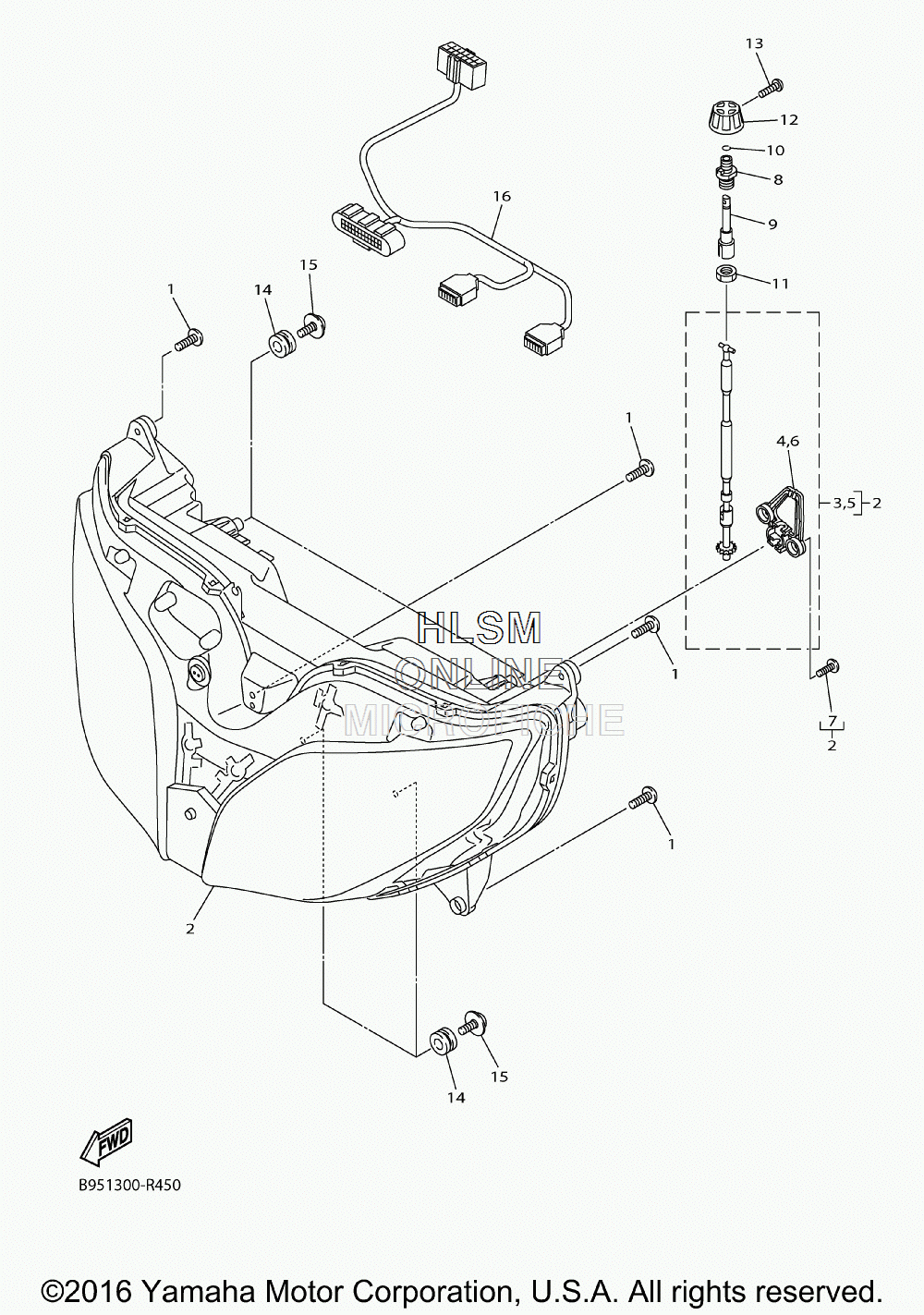

HEADLIGHT для Yamaha FJR 1300ES - 2017 года выпуска
-
№АртикулНазвание
-
197702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
2B95-8430B-00-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
3B88-8A3V1-00-00 ...GEAR MODULE 1 (LEFT HAND)...GEAR MODULE 1 (LEFT HAND)
-
4B88-84544-00-00 ......COVER (LEFT HAND)......COVER (LEFT HAND)
-
5B88-8A3V2-00-00 ...GEAR MODULE 2 (RIGHT HAND)...GEAR MODULE 2 (RIGHT HAND)
-
6B88-84797-00-00 ......COVER (RIGHT HAND)......COVER (RIGHT HAND)
-
797707-40614-00 ...SCREW, TAPPING...SCREW, TAPPING
-
83P6-8431U-00-00 HOLDERHOLDER
-
9B88-84387-00-00 HOLDERHOLDER
-
1093440-06190-00 CIRCLIPCIRCLIP
-
1190170-12407-00 NUTNUT
-
123P6-8432N-00-00 KNOBKNOB
-
1398507-03010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
144XV-83513-00-00 DAMPERDAMPER
-
1590164-05001-00 SCREW, TAPPINGSCREW, TAPPING
-
16B95-84359-00-00 CORD, HEADLIGHTCORD, HEADLIGHT
