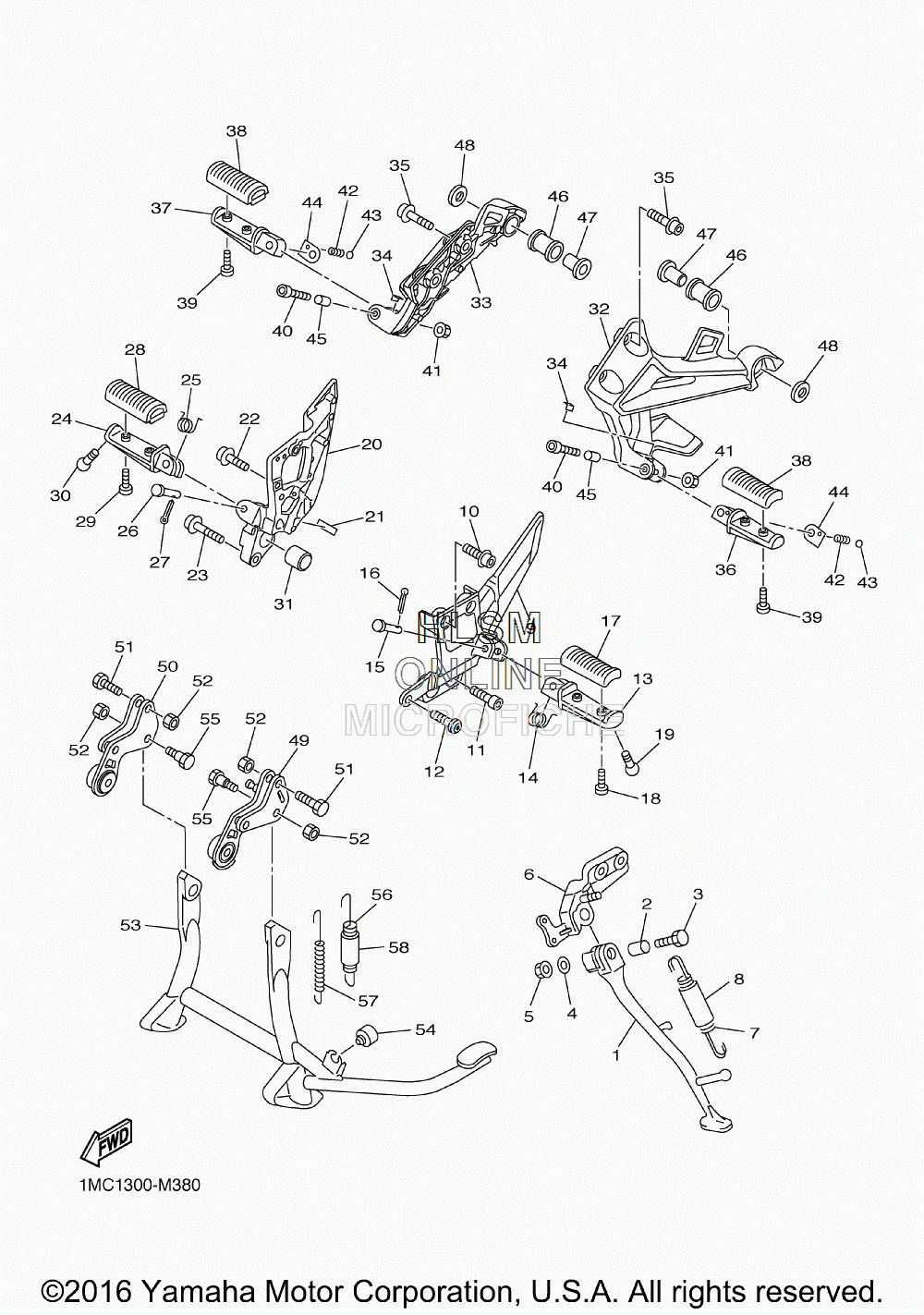

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha FJR 1300ES - 2017 года выпуска
-
№АртикулНазвание
-
15JW-27311-00-00 STAND, SIDESTAND, SIDE
-
290387-10007-00 COLLARCOLLAR
-
390101-10025-00 BOLTBOLT
-
492902-10200-00 WASHERWASHER
-
595602-10100-00 NUT, UNUT, U
-
65JW-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
790506-20008-00 SPRING, TENSIONSPRING, TENSION
-
890445-197J2-00 HOSE (L60)HOSE (L60)
-
91MC-27442-00-00 BRACKET 2BRACKET 2
-
1090110-08087-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190109-10031-00 BOLTBOLT
-
1290149-10012-00 SCREWSCREW
-
134BH-27451-01-00 FOOTRESTFOOTREST
-
1490508-183B9-00 SPRING, TORSIONSPRING, TORSION
-
1591701-08042-00 PINPIN
-
1691401-25015-00 PIN, COTTERPIN, COTTER
-
174BP-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
1890157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1990109-08203-00 BOLTBOLT
-
201MC-27443-00-00 BRACKET 3BRACKET 3
-
213TU-2178A-00-00 LABELLABEL
-
2290110-08056-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2390110-08107-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
244BH-27461-01-00 FOOTRESTFOOTREST
-
2590508-184B0-00 SPRING, TORSIONSPRING, TORSION
-
2691701-08040-00 PINPIN
-
2791401-25015-00 PIN, COTTERPIN, COTTER
-
284BP-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
2990157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3090109-08203-00 BOLTBOLT
-
3190380-20213-00 BUSH, SOLIDBUSH, SOLID
-
321MC-2741L-00-00 BRACKET 4BRACKET 4
-
331MD-2742L-00-00 BRACKET 5BRACKET 5
-
345JW-23844-00-00 SEALSEAL
-
3590110-08056-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
365LV-27431-01-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
375LV-27441-01-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
384BP-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
3990157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4091312-06040-00 BOLTBOLT
-
4195602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4290501-15001-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4393501-04011-00 BALLBALL
-
445JJ-27437-01-00 WASHER, SPECIALWASHER, SPECIAL
-
4590387-06014-00 COLLARCOLLAR
-
4636Y-27424-01-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
4790387-10048-00 COLLARCOLLAR
-
4890201-10669-00 WASHER, PLATEWASHER, PLATE
-
491MC-27151-00-00 BRACKET, MAIN STANDBRACKET, MAIN STAND
-
501MC-27152-00-00 BRACKET, MAIN STAND 2BRACKET, MAIN STAND 2
-
5190101-10004-00 BOLTBOLT
-
5295602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
535P5-27111-10-00 STAND, MAINSTAND, MAIN
-
54116-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
5590109-10029-00 BOLTBOLT
-
5690506-40001-00 SPRING, TENSIONSPRING, TENSION
-
5790506-23001-00 SPRING, TENSIONSPRING, TENSION
-
5890445-170K9-00 HOSE (L60)HOSE (L60)
