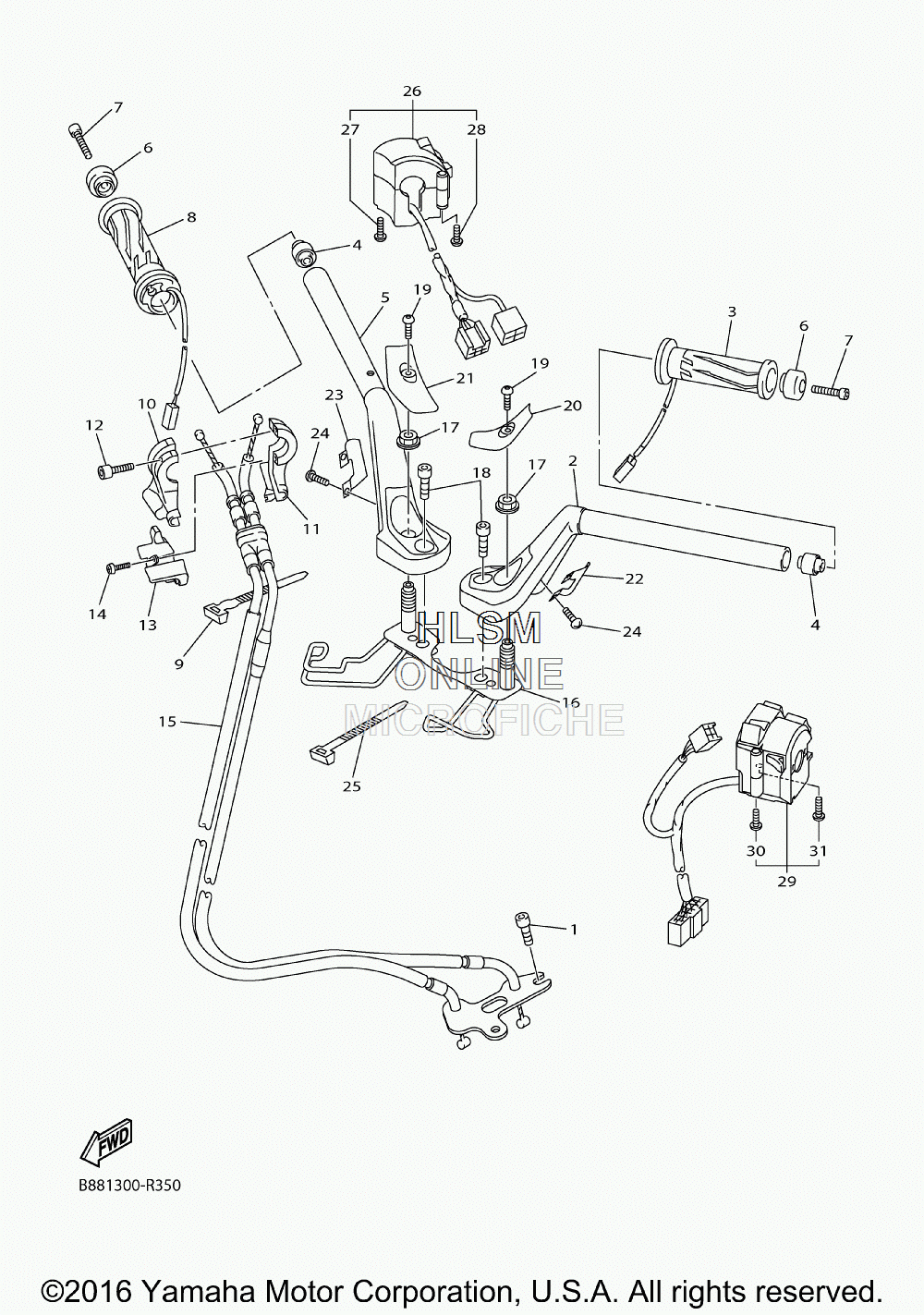

HANDLEBAR W/ CABLES для Yamaha FJR 1300ES - 2017 года выпуска
-
№АртикулНазвание
-
190110-05032-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
21MC-26121-00-00 HANDLEBAR (LEFT)HANDLEBAR (LEFT)
-
31MC-82963-00-00 GRIP, WARMER (LEFT)GRIP, WARMER (LEFT)
-
44XV-23434-00-00 HOLDER, DAMPERHOLDER, DAMPER
-
51MC-26122-00-00 HANDLEBAR (RIGHT)HANDLEBAR (RIGHT)
-
64XV-26246-10-00 END, GRIPEND, GRIP
-
791317-06025-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
81MC-82960-00-00 GRIP, WARMERGRIP, WARMER
-
990465-10098-00 CLAMPCLAMP
-
102D2-26281-01-00 CAP, GRIP UPPERCAP, GRIP UPPER
-
112D2-26282-01-00 CAP, GRIP UNDERCAP, GRIP UNDER
-
1291317-05035-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
132D2-2622K-00-00 PROTECTOR 1PROTECTOR 1
-
1490154-03001-00 SCREW, BINDINGSCREW, BINDING
-
151MC-26302-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
161MC-26169-00-00 ADJUSTERADJUSTER
-
1795702-12500-00 NUT, FLANGENUT, FLANGE
-
1891312-08030-00 BOLTBOLT
-
1990111-04006-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
203P6-26143-10-00 COVER, HANDLE UPPER 1COVER, HANDLE UPPER 1
-
213P6-26145-10-00 COVER, HANDLE UPPER 2COVER, HANDLE UPPER 2
-
223P6-26144-10-00 COVER, HANDLEBAR LOWER 1COVER, HANDLEBAR LOWER 1
-
233P6-26146-10-00 COVER, HANDLEBAR LOWER 2COVER, HANDLEBAR LOWER 2
-
2498507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2590464-16061-00 CLAMPCLAMP
-
261MC-83963-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
2798507-05035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2898507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
29B88-83954-00-00 SWITCH, HANDLE 7SWITCH, HANDLE 7
-
3098507-05040-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
3198507-05055-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
