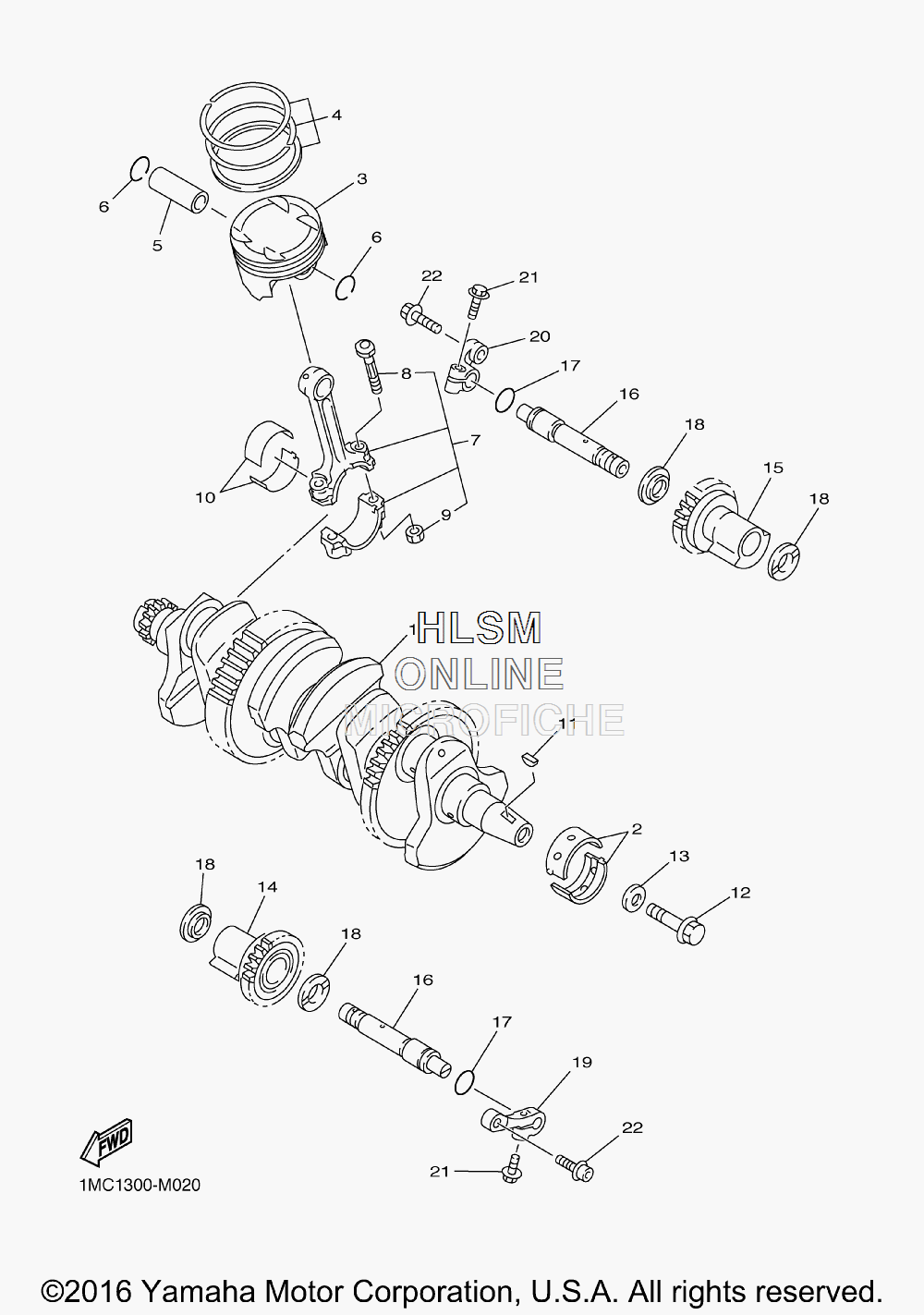

CRANKSHAFT - PISTON для Yamaha FJR 1300ES - 2017 года выпуска
-
№АртикулНазвание
-
15JW-11411-00-00 CRANKSHAFTCRANKSHAFT
-
23LD-11416-70-00 PLANE BEARING, CRANKSHAFT 1 (WHITE)PLANE BEARING, CRANKSHAFT 1 (WHITE)
-
23LD-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)PLANE BEARING, CRANKSHAFT 1 (BROWN)
-
23LD-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (GREEN)PLANE BEARING, CRANKSHAFT 1 (GREEN)
-
23LD-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (YELLOW)PLANE BEARING, CRANKSHAFT 1 (YELLOW)
-
23LD-11416-50-00 PLANE BEARING, CRANKSHAFT 1 (PINK)PLANE BEARING, CRANKSHAFT 1 (PINK)
-
23LD-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)PLANE BEARING, CRANKSHAFT 1 (BLACK)
-
23LD-11416-60-00 PLANE BEARING, CRANKSHAFT 1 (RED)PLANE BEARING, CRANKSHAFT 1 (RED)
-
35JW-11631-00-00 PISTON (STD)PISTON (STD)
-
41MC-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
55JW-11633-00-00 PIN, PISTONPIN, PISTON
-
693450-19095-00 CIRCLIPCIRCLIP
-
75JW-11650-01-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
85JW-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
990179-08327-00 ...NUT...NUT
-
105JW-11656-30-00 PLANE BEARING, CONNECTING ROD (GREEN)PLANE BEARING, CONNECTING ROD (GREEN)
-
105JW-11656-40-00 PLANE BEARING, CONNECTING ROD (YELLOW)PLANE BEARING, CONNECTING ROD (YELLOW)
-
105JW-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)PLANE BEARING, CONNECTING ROD (BLACK)
-
105JW-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE)PLANE BEARING, CONNECTING ROD (BLUE)
-
105JW-11656-50-00 PLANE BEARING, CONNECTING ROD (PINK)PLANE BEARING, CONNECTING ROD (PINK)
-
105JW-11656-20-00 PLANE BEARING, CONNECTING ROD (BROWN)PLANE BEARING, CONNECTING ROD (BROWN)
-
1190280-05029-00 KEY, WOODRUFFKEY, WOODRUFF
-
1290105-12005-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-121H0-00 WASHER, PLATEWASHER, PLATE
-
145JW-11500-00-00 BALANCER ASSYBALANCER ASSY
-
155JW-11510-00-00 BALANCER ASSY, 2BALANCER ASSY, 2
-
165JW-11583-00-00 SHAFT, BALANCER 1SHAFT, BALANCER 1
-
1793210-16325-00 O-RINGO-RING
-
185JW-11557-00-00 WASHER 1WASHER 1
-
195JW-13831-10-00 LEVER 1LEVER 1
-
205JW-13832-10-00 LEVER 2LEVER 2
-
2195022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2290110-08056-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
