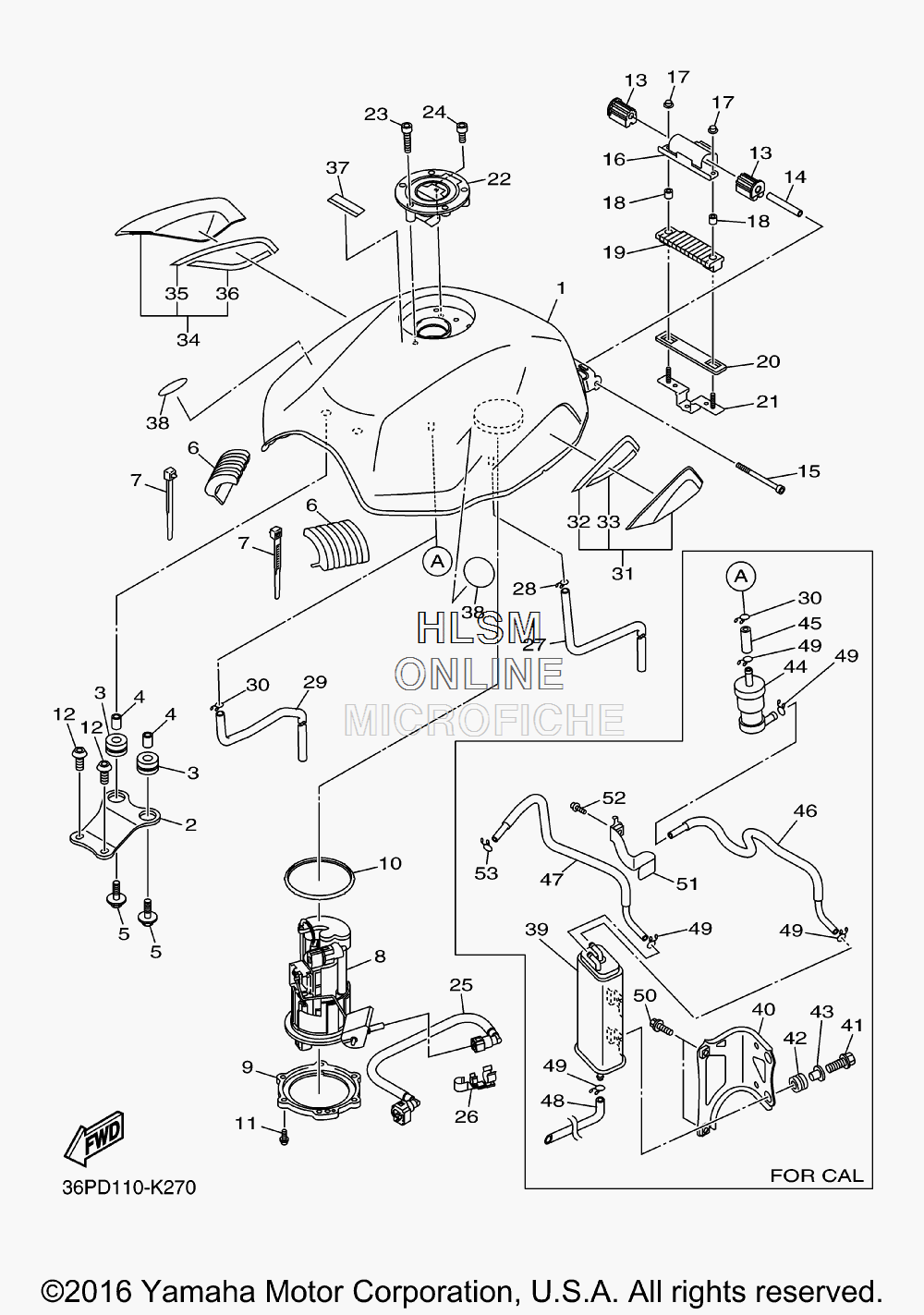

FUEL TANK для Yamaha FZ6R - 2017 года выпуска
-
№АртикулНазвание
-
120S-YK241-00-P0 FUEL TANK COMP. (SMX - BLACK METALLIC)FUEL TANK COMP. (SMX - BLACK METALLIC)
-
220S-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
390480-16010-00 GROMMETGROMMET
-
490387-06068-00 COLLARCOLLAR
-
590119-06264-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
620S-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
790465-15011-00 CLAMPCLAMP
-
820S-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
913S-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
1019B-24486-01-00 O-RINGO-RING
-
1190110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
135VX-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1490387-061W6-00 COLLARCOLLAR
-
1591312-06090-00 BOLTBOLT
-
1620S-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
1795702-06500-00 NUT, FLANGENUT, FLANGE
-
1890387-06299-00 COLLARCOLLAR
-
1920S-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
2020S-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
2120S-21296-00-00 NUTNUT
-
2239P-24602-10-00 CAP ASSYCAP ASSY
-
2390110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2491317-05010-00 BOLT, HEX.SOCKET HEADBOLT, HEX.SOCKET HEAD
-
255VX-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
2690464-16005-00 CLAMPCLAMP
-
2790445-106J2-00 HOSE (L650)HOSE (L650)
-
2890467-090A2-00 CLIPCLIP
-
2990445-106J2-00 HOSE (L650)HOSE (L650)
-
3090467-090A2-00 CLIP (EXCEPT CALIF)CLIP (EXCEPT CALIF)
-
3090467-100A1-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
3120S-24106-01-00 TANK SIDE COVER ASSY 1TANK SIDE COVER ASSY 1
-
3220S-2173T-10-00 ...TAPE 1...TAPE 1
-
3320S-2173T-20-00 ...TAPE 1...TAPE 1
-
3420S-24108-01-00 TANK SIDE COVER ASSY 2TANK SIDE COVER ASSY 2
-
3520S-2173U-10-00 ...TAPE 2...TAPE 2
-
3620S-2173U-20-00 ...TAPE 2...TAPE 2
-
371TP-2118K-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
385JW-2413B-00-00 EMBLEMEMBLEM
-
395C7-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
4036P-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)BRACKET, CANISTOR (CALIF ONLY)
-
4195802-06016-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
4290480-13163-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
4390387-062L2-00 COLLAR (CALIF ONLY)COLLAR (CALIF ONLY)
-
445RB-24180-00-00 ROLL OVER VALVE ASSY (CALIF ONLY)ROLL OVER VALVE ASSY (CALIF ONLY)
-
4590445-11065-00 HOSE (L30) (CALIF ONLY)HOSE (L30) (CALIF ONLY)
-
4636P-24314-00-00 PIPE 4 (CALIF ONLY)PIPE 4 (CALIF ONLY)
-
4736P-14466-00-00 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
4836P-24315-00-00 PIPE 5 (CALIF ONLY)PIPE 5 (CALIF ONLY)
-
4990467-100A1-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
5095802-08016-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
5136P-24667-00-00 GUIDE, PIPE (CALIF ONLY)GUIDE, PIPE (CALIF ONLY)
-
5295802-06010-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
5390467-100A1-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
