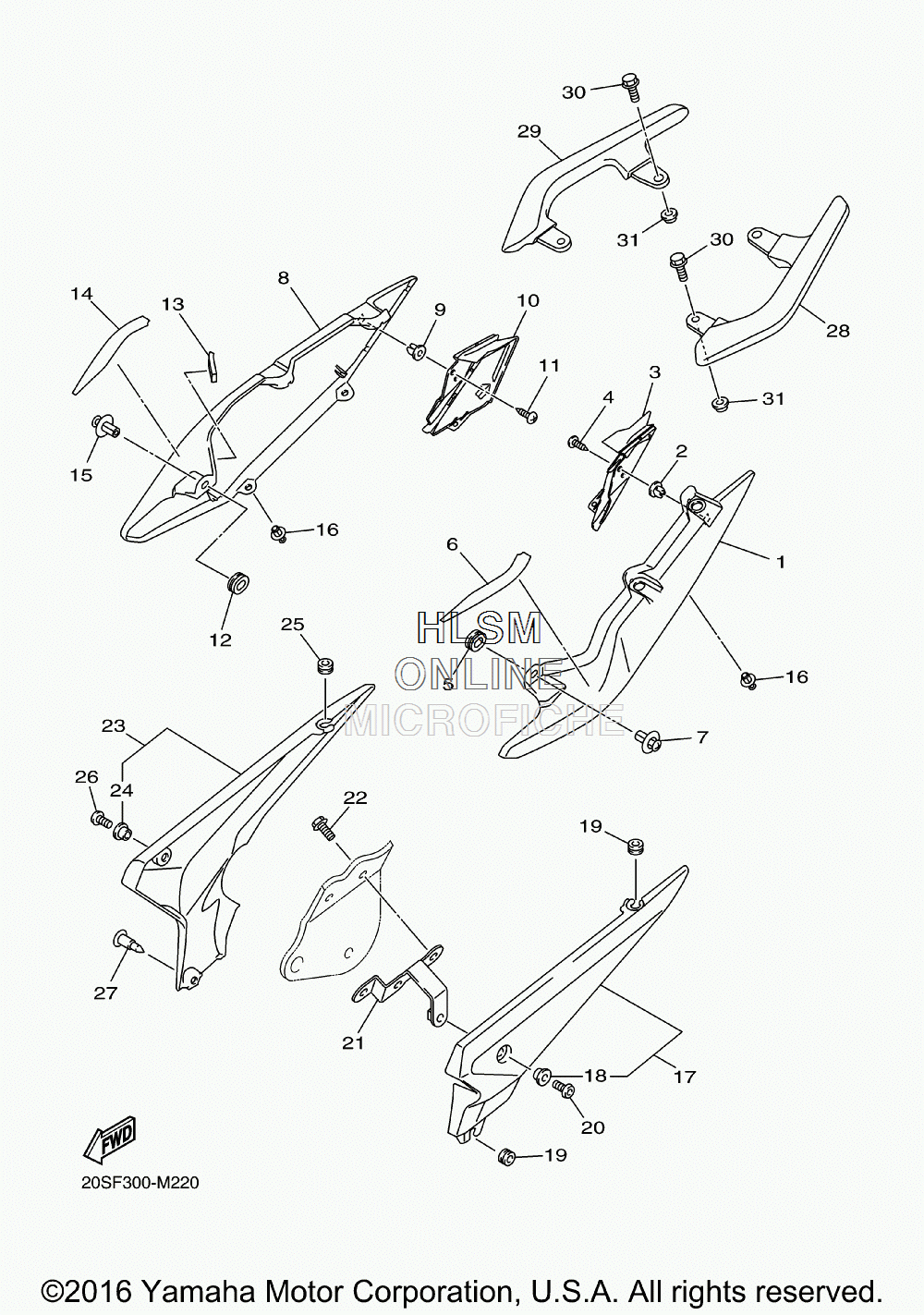

SIDE COVER для Yamaha FZ6R - 2017 года выпуска
-
№АртикулНазвание
-
120S-21711-00-PF COVER, SIDE 1 (MS1 - MAT SILVER)COVER, SIDE 1 (MS1 - MAT SILVER)
-
290480-08005-00 GROMMETGROMMET
-
320S-2163A-10-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
497702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
55PW-2174X-00-00 DAMPERDAMPER
-
620S-21732-00-00 SEAL 1SEAL 1
-
790269-07076-00 RIVETRIVET
-
820S-21721-00-PF COVER, SIDE 2 (MS1 - MAT SILVER)COVER, SIDE 2 (MS1 - MAT SILVER)
-
990480-08005-00 GROMMETGROMMET
-
1020S-2163E-10-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
1197702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
125PW-2174X-00-00 DAMPERDAMPER
-
134C8-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
1420S-21735-00-00 SEAL 2SEAL 2
-
1590269-07076-00 RIVETRIVET
-
1690269-07077-00 RIVETRIVET
-
1720S-21730-00-00 SIDE COVER ASSY 3SIDE COVER ASSY 3
-
1890387-06130-00 ...COLLAR...COLLAR
-
1990480-10334-00 GROMMETGROMMET
-
2090111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2120S-2172U-00-00 BRKT 7BRKT 7
-
2295802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2320S-21740-00-00 SIDE COVER ASSY 4SIDE COVER ASSY 4
-
2490387-06130-00 ...COLLAR...COLLAR
-
2590480-10334-00 GROMMETGROMMET
-
2690111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2790269-07008-00 RIVETRIVET
-
2820S-2474A-10-00 ASSIST, GRIPASSIST, GRIP
-
2920S-2474W-10-00 ASSIST, GRIP 2ASSIST, GRIP 2
-
3092017-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3190387-08089-00 COLLARCOLLAR
