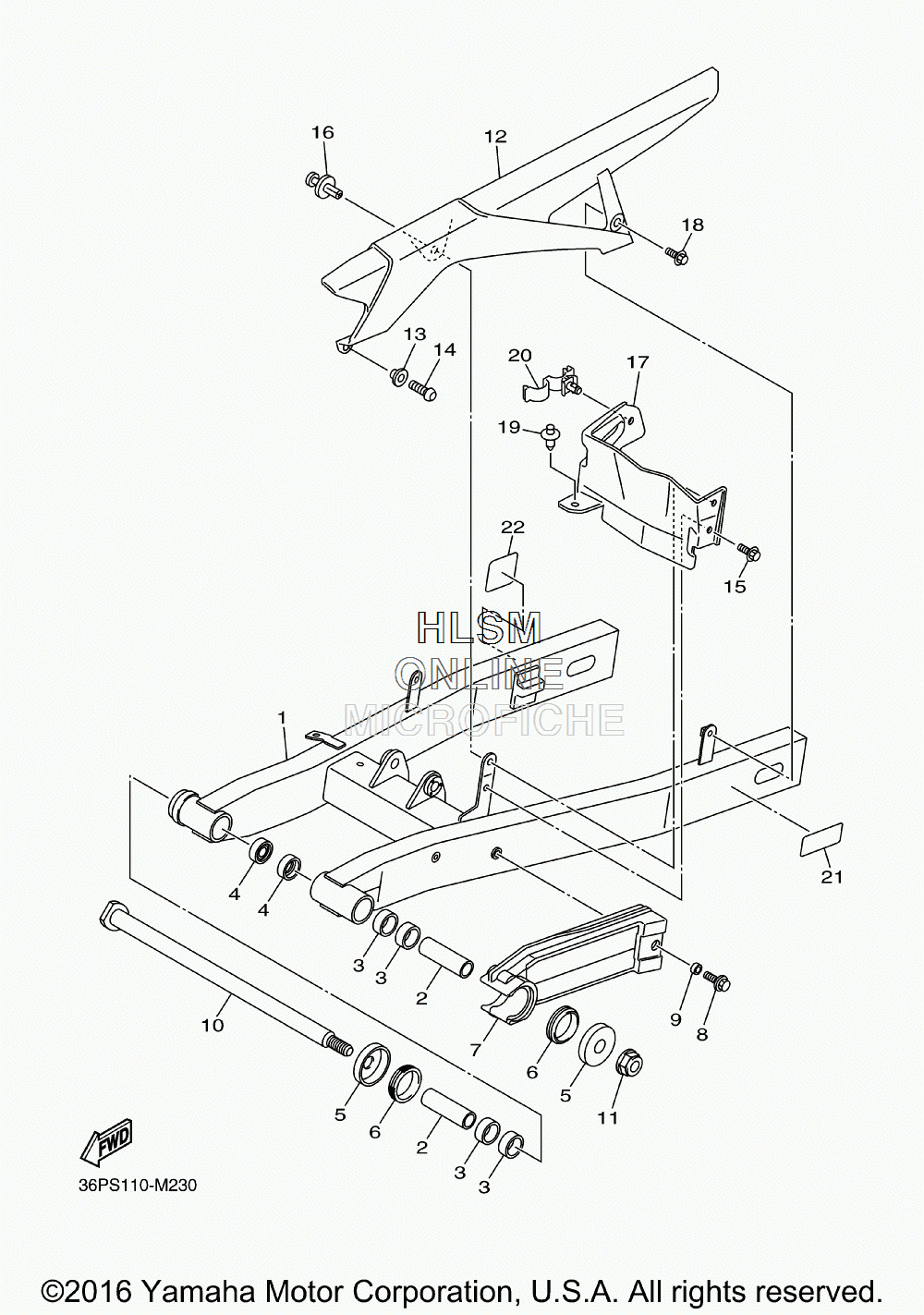

SUSPENSION - REAR ARM для Yamaha FZ6R - 2017 года выпуска
-
№АртикулНазвание
-
120S-22110-30-00 REAR ARM COMP.REAR ARM COMP.
-
25VK-22124-00-00 BUSH 2BUSH 2
-
393317-22262-00 BEARINGBEARING
-
493106-22019-00 OIL SEAL (DC 22-28-8)OIL SEAL (DC 22-28-8)
-
530X-2219X-00-00 COVERCOVER
-
693108-35004-00 OIL SEAL (35-41-8)OIL SEAL (35-41-8)
-
720S-22151-00-00 SEAL, GUARDSEAL, GUARD
-
890119-06147-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
990387-06372-00 COLLARCOLLAR
-
101AE-22141-01-00 SHAFT, PIVOTSHAFT, PIVOT
-
1190185-14012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1220S-22311-00-00 CASE, CHAINCASE, CHAIN
-
1390387-06130-00 COLLARCOLLAR
-
1492012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1590119-06154-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690269-07076-00 RIVETRIVET
-
1720S-22325-01-00 COVER, DUSTCOVER, DUST
-
1890119-06154-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1990269-08001-00 RIVETRIVET
-
2090464-16011-00 CLAMPCLAMP
-
213XW-21668-A1-00 LABEL, TIRELABEL, TIRE
-
225SL-21686-00-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
