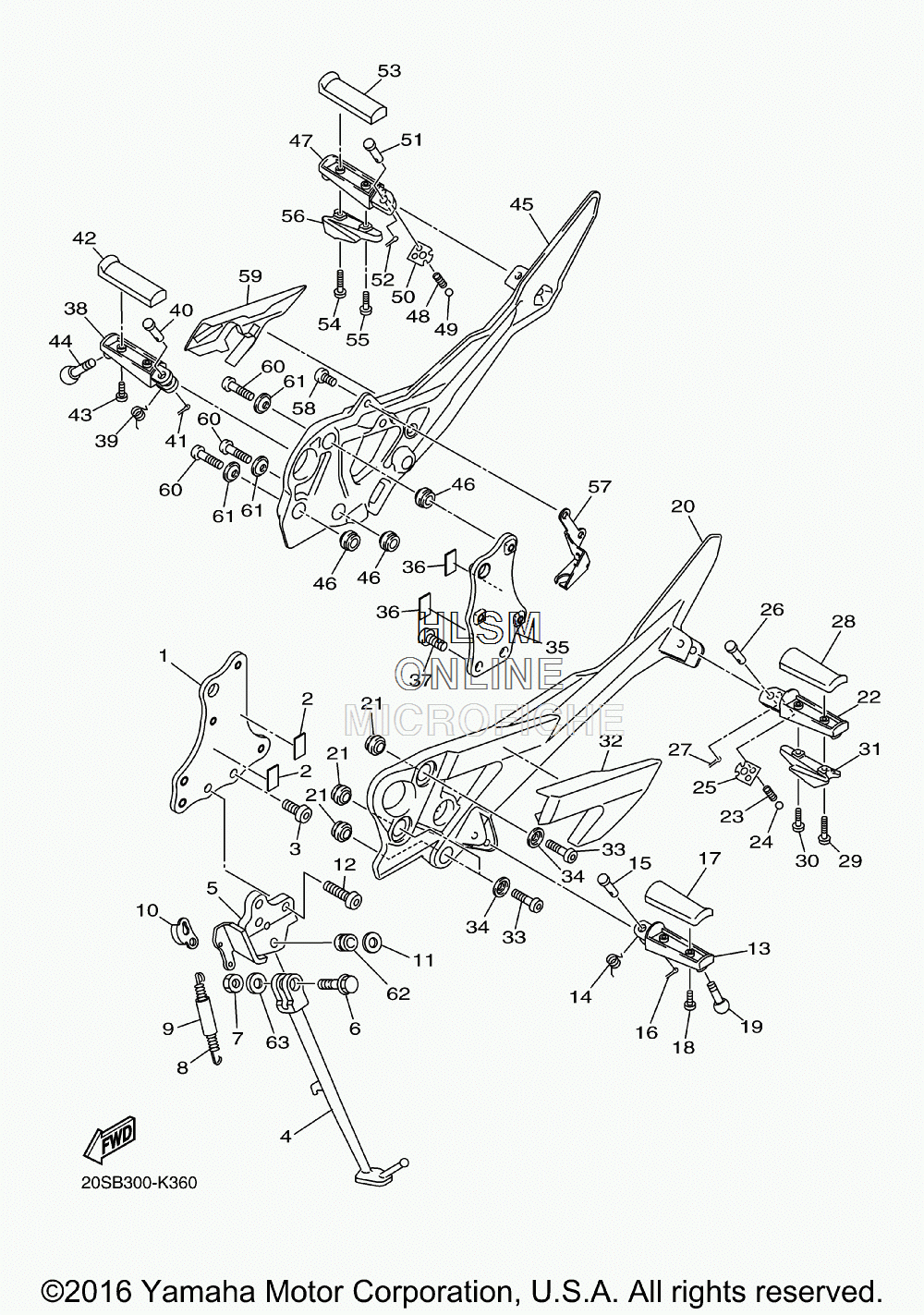

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha FZ6R - 2017 года выпуска
-
№АртикулНазвание
-
120S-274A3-00-00 BRACKET, ADAPTER 1BRACKET, ADAPTER 1
-
24RR-21485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
390111-10043-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
420S-27311-00-00 STAND, SIDESTAND, SIDE
-
520S-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
690105-10365-00 BOLT, FLANGEBOLT, FLANGE
-
790185-10023-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890506-23018-00 SPRING, TENSIONSPRING, TENSION
-
95VX-27351-00-00 GUIDE, SIDE STANDGUIDE, SIDE STAND
-
105VX-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
1190201-10051-00 WASHER, PLATEWASHER, PLATE
-
1290111-10045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
134BH-27451-01-00 FOOTRESTFOOTREST
-
1490508-20572-00 SPRING, TORSIONSPRING, TORSION
-
1591701-08042-00 PINPIN
-
1691402-25015-00 PIN, COTTERPIN, COTTER
-
174BP-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
1890157-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1990109-08203-00 BOLTBOLT
-
2020S-27442-00-00 BRACKET 2BRACKET 2
-
215VX-27424-00-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
225RT-27431-00-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
2390501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2493501-04011-00 BALLBALL
-
255VX-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
2691701-08042-00 PINPIN
-
2791402-25015-00 PIN, COTTERPIN, COTTER
-
284BP-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
2990159-05187-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
3090159-05004-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
315LV-2741E-01-00 ARM 2ARM 2
-
3220S-27486-00-00 COVER 1COVER 1
-
3390111-08066-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3490209-08295-00 WASHERWASHER
-
3520S-274A4-00-00 BRACKET, ADAPTER 2BRACKET, ADAPTER 2
-
364RR-21485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
3790111-10036-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
384BH-27461-01-00 FOOTRESTFOOTREST
-
3990508-20572-00 SPRING, TORSIONSPRING, TORSION
-
4091701-08042-00 PINPIN
-
4191402-25015-00 PIN, COTTERPIN, COTTER
-
424BP-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
4390157-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4490109-08203-00 BOLTBOLT
-
4520S-27443-00-00 BRACKET 3BRACKET 3
-
465VX-27424-00-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
475RT-27441-00-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
4890501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4993501-04011-00 BALLBALL
-
505VX-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
5191701-08042-00 PINPIN
-
5291402-25015-00 PIN, COTTERPIN, COTTER
-
534BP-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
5490159-05187-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
5590159-05004-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
565LV-2741E-01-00 ARM 2ARM 2
-
5720S-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
5892014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5920S-27487-00-00 COVER 2COVER 2
-
6090111-08066-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6190209-08295-00 WASHERWASHER
-
6290387-1003G-00 COLLARCOLLAR
-
6390201-10035-00 WASHER, PLATEWASHER, PLATE
