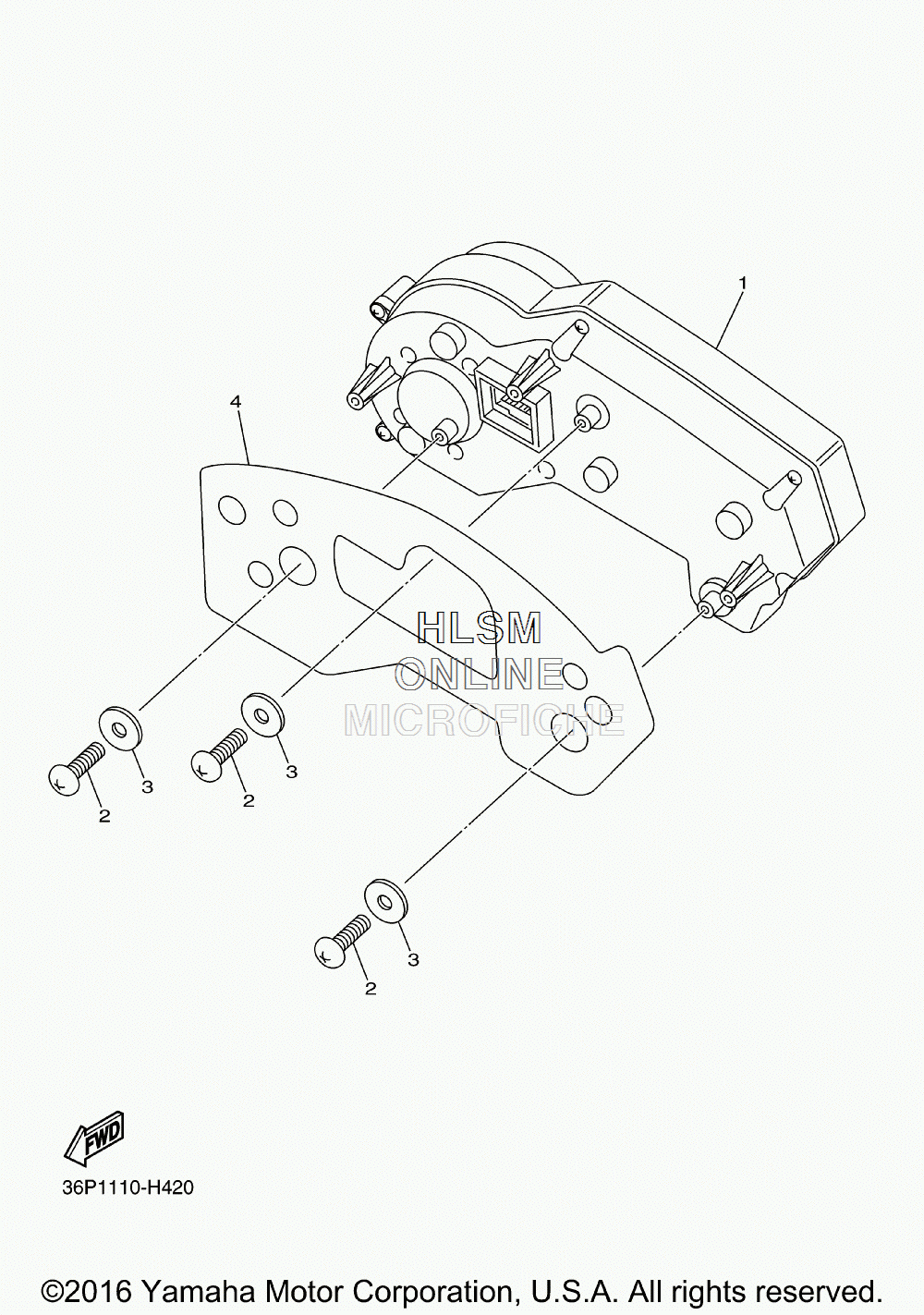

INSTRUMENT PANEL для Yamaha FZ6R - 2017 года выпуска
-
№АртикулНазвание
-
136P-83500-30-00 METER ASSY (MPH)METER ASSY (MPH)
-
290160-05012-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
390201-05036-00 WASHER, PLATEWASHER, PLATE
-
436P-83615-00-00 BLIND, METERBLIND, METER
