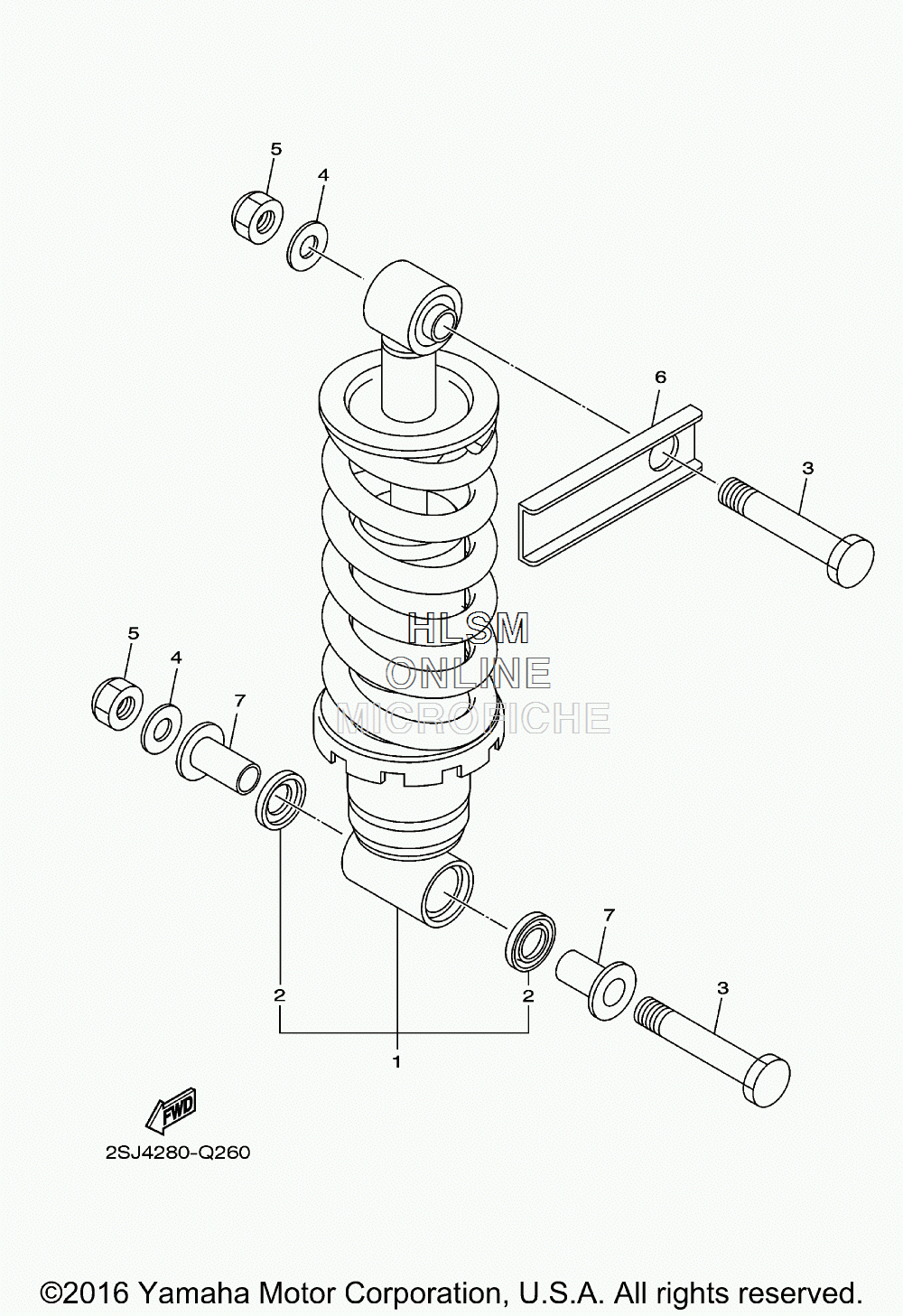

SUSPENSION - REAR SHOCK ABSORBER для Yamaha FZ6R - 2017 года выпуска
-
№АртикулНазвание
-
1B40-22210-40-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
293109-18020-00 ...OIL SEAL...OIL SEAL
-
390109-125F1-00 BOLTBOLT
-
490201-12050-00 WASHER, PLATEWASHER, PLATE
-
595612-12100-00 NUT, UNUT, U
-
620S-22243-00-00 WASHER 1WASHER 1
-
790387-123X6-00 COLLARCOLLAR
