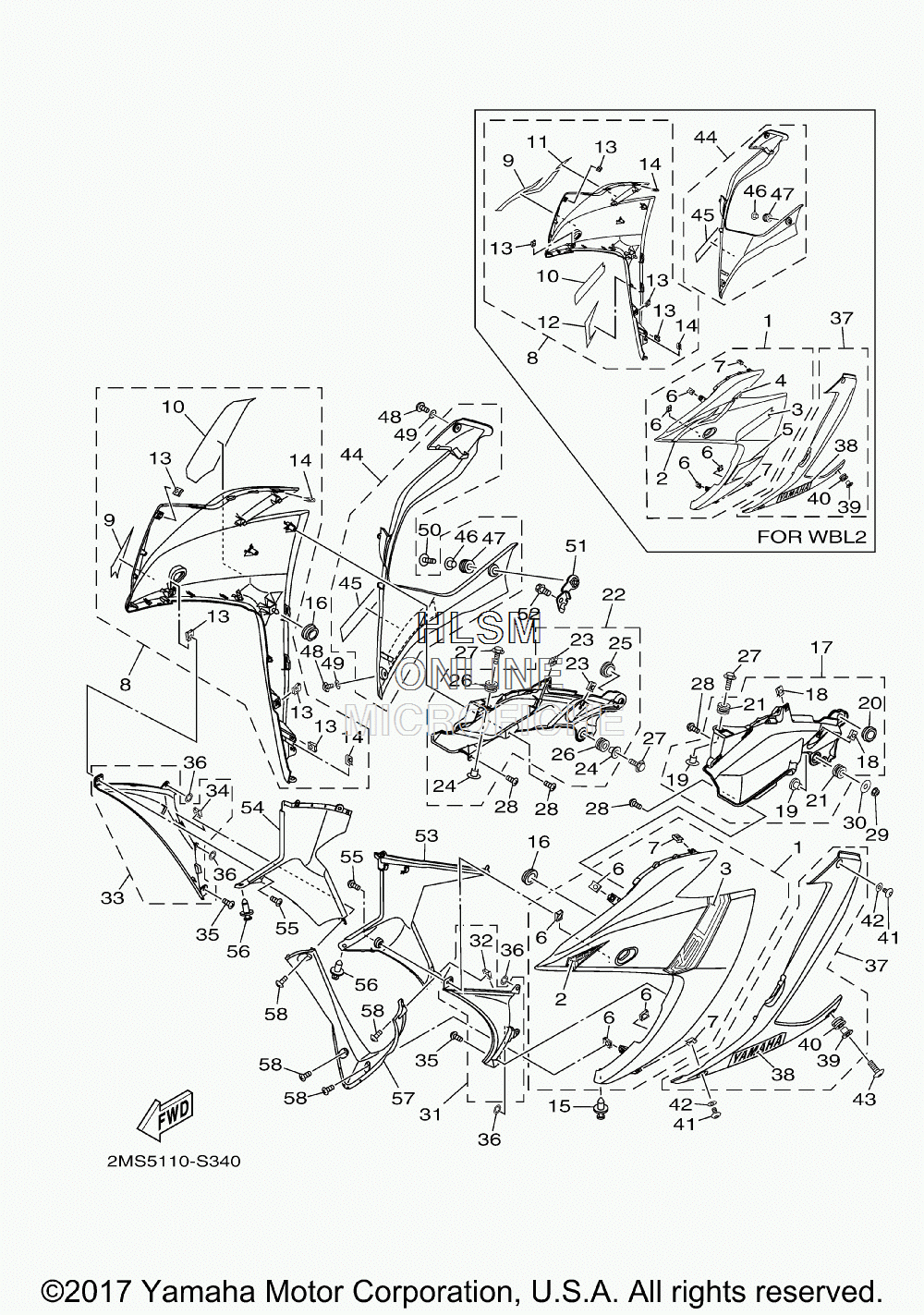

COWLING для Yamaha YZFR3 - 2017 года выпуска
-
№АртикулНазвание
-
11WD-XF83L-50-P3 BODY, FRONT UNDER 1 SUB ASSY (DPBMC - PURPLISH BLUE)BODY, FRONT UNDER 1 SUB ASSY (DPBMC - PURPLISH BLUE)
-
11WD-XF83L-10-P5 BODY, FRONT UNDER 1 SUB ASSY (MBL2 - MAT BLACK)BODY, FRONT UNDER 1 SUB ASSY (MBL2 - MAT BLACK)
-
21WD-F8393-A0-00 ...GRAPHIC 3 (DPBMC - PURPLISH BLUE)...GRAPHIC 3 (DPBMC - PURPLISH BLUE)
-
21WD-F8393-B0-00 ...GRAPHIC 3 (MBL2 - MAT BLACK)...GRAPHIC 3 (MBL2 - MAT BLACK)
-
32MS-F8398-70-00 ...GRAPHIC 5 (DPBMC - PURPLISH BLUE)...GRAPHIC 5 (DPBMC - PURPLISH BLUE)
-
32MS-F8398-80-00 ...GRAPHIC 5 (MBL2 - MAT BLACK)...GRAPHIC 5 (MBL2 - MAT BLACK)
-
41WD-F83GA-90-00 ...GRAPHIC, 7 (MBL2 - MAT BLACK)...GRAPHIC, 7 (MBL2 - MAT BLACK)
-
51WD-F83GC-40-00 ...GRAPHIC, 9 (MBL2 - MAT BLACK)...GRAPHIC, 9 (MBL2 - MAT BLACK)
-
690183-05807-00 ...NUT, SPRING...NUT, SPRING
-
790183-050A7-00 ...NUT, SPRING...NUT, SPRING
-
81WD-XF83M-50-P3 BODY, FRONT UNDER 2 SUB ASSY (DPBMC - PURPLISH BLUE)BODY, FRONT UNDER 2 SUB ASSY (DPBMC - PURPLISH BLUE)
-
81WD-XF83M-10-P5 BODY, FRONT UNDER 2 SUB ASSY (MBL2 - MAT BLACK)BODY, FRONT UNDER 2 SUB ASSY (MBL2 - MAT BLACK)
-
91WD-F8394-A0-00 ...GRAPHIC 4 (DPBMC - PURPLISH BLUE)...GRAPHIC 4 (DPBMC - PURPLISH BLUE)
-
91WD-F8394-B0-00 ...GRAPHIC 4 (MBL2 - MAT BLACK)...GRAPHIC 4 (MBL2 - MAT BLACK)
-
102MS-F8398-80-00 ...GRAPHIC 5 (MBL2 - MAT BLACK)...GRAPHIC 5 (MBL2 - MAT BLACK)
-
102MS-F8399-70-00 ...GRAPHIC 6 (DPBMC - PURPLISH BLUE)...GRAPHIC 6 (DPBMC - PURPLISH BLUE)
-
111WD-F83GB-90-00 ...GRAPHIC, 8 (MBL2 - MAT BLACK)...GRAPHIC, 8 (MBL2 - MAT BLACK)
-
121WD-F83GD-40-00 ...GRAPHIC, 10 (MBL2 - MAT BLACK)...GRAPHIC, 10 (MBL2 - MAT BLACK)
-
1390183-05807-00 ...NUT, SPRING...NUT, SPRING
-
1490183-050A7-00 ...NUT, SPRING...NUT, SPRING
-
1590269-06081-00 RIVETRIVET
-
1690480-01558-00 GROMMETGROMMET
-
171WD-XF11W-00-P2 COVER 7 (SMX - BLACK METALLIC FOR MBL2 - MAT BLACK)COVER 7 (SMX - BLACK METALLIC FOR MBL2 - MAT BLACK)
-
171WD-XF11W-00-P4 COVER 7 (MS1 - MAT SILVER FOR DPBMC - PURPLISH BLUE)COVER 7 (MS1 - MAT SILVER FOR DPBMC - PURPLISH BLUE)
-
1890183-050A7-00 ...NUT, SPRING...NUT, SPRING
-
1990387-06899-00 ...COLLAR...COLLAR
-
2090480-01558-00 ...GROMMET...GROMMET
-
2190480-12808-00 ...GROMMET...GROMMET
-
221WD-XF11X-00-P2 COVER 8 (SMX - BLACK METALLIC FOR MBL2 - MAT BLACK)COVER 8 (SMX - BLACK METALLIC FOR MBL2 - MAT BLACK)
-
221WD-XF11X-00-P3 COVER 8 (MS1 - MAT SILVER FOR DPBMC - PURPLISH BLUE)COVER 8 (MS1 - MAT SILVER FOR DPBMC - PURPLISH BLUE)
-
2390183-050A7-00 ...NUT, SPRING...NUT, SPRING
-
2490387-06899-00 ...COLLAR...COLLAR
-
2590480-01558-00 ...GROMMET...GROMMET
-
2690480-12808-00 ...GROMMET...GROMMET
-
2790119-06810-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2897707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2995702-06500-00 NUT, FLANGENUT, FLANGE
-
3090201-06380-00 WASHER PLAINWASHER PLAIN
-
311WD-XF835-00-P0 PANEL ASSY (MBL2 - MAT BLACK FOR DPBMC - PURPLISH BLUE)PANEL ASSY (MBL2 - MAT BLACK FOR DPBMC - PURPLISH BLUE)
-
311WD-XF835-00-P1 PANEL ASSY (SMX - BLACK METALLIC FOR MBL2 - MAT BLACK)PANEL ASSY (SMX - BLACK METALLIC FOR MBL2 - MAT BLACK)
-
3290183-05807-00 ...NUT, SPRING...NUT, SPRING
-
331WD-XF83B-00-P0 PANEL ASSY 2 (MBL2 - MAT BLACK FOR DPBMC - PURPLISH BLUE)PANEL ASSY 2 (MBL2 - MAT BLACK FOR DPBMC - PURPLISH BLUE)
-
331WD-XF83B-00-P1 PANEL ASSY 2 (SMX - BLACK METALLIC FOR MBL2 - MAT BLACK)PANEL ASSY 2 (SMX - BLACK METALLIC FOR MBL2 - MAT BLACK)
-
3490183-05807-00 ...NUT, SPRING...NUT, SPRING
-
3597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
3690183-06815-00 NUT, SPRINGNUT, SPRING
-
371WD-XF838-00-P3 UNDER COVER ASSY 1 (MS1 - MAT SILVER FOR DPBMC - PURPLISH BLUE)UNDER COVER ASSY 1 (MS1 - MAT SILVER FOR DPBMC - PURPLISH BLUE)
-
371WD-XF838-10-P2 UNDER COVER ASSY 1 (SMX - BLACK METALLIC FOR MBL2 - MAT BLACK)UNDER COVER ASSY 1 (SMX - BLACK METALLIC FOR MBL2 - MAT BLACK)
-
381WD-F8328-30-00 ...EMBLEM (MBL2 - MAT BLACK)...EMBLEM (MBL2 - MAT BLACK)
-
381WD-F8328-50-00 ...EMBLEM (DPBMC - PURPLISH BLUE)...EMBLEM (DPBMC - PURPLISH BLUE)
-
3990387-06899-00 ...COLLAR...COLLAR
-
4090480-12808-00 ...GROMMET...GROMMET
-
4190111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4290202-05180-00 WASHER, PLATEWASHER, PLATE
-
4390111-06117-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
441WD-XF839-00-P3 UNDER COVER ASSY 2 (MS1 - MAT SILVER FOR DPBMC - PURPLISH BLUE)UNDER COVER ASSY 2 (MS1 - MAT SILVER FOR DPBMC - PURPLISH BLUE)
-
441WD-XF839-10-P2 UNDER COVER ASSY 2 (SMX - BLACK METALLIC FOR MBL2 - MAT BLACK)UNDER COVER ASSY 2 (SMX - BLACK METALLIC FOR MBL2 - MAT BLACK)
-
451WD-F8328-30-00 ...EMBLEM (MBL2 - MAT BLACK)...EMBLEM (MBL2 - MAT BLACK)
-
451WD-F8328-50-00 ...EMBLEM (DPBMC - PURPLISH BLUE)...EMBLEM (DPBMC - PURPLISH BLUE)
-
4690387-06899-00 ...COLLAR...COLLAR
-
4790480-12808-00 ...GROMMET...GROMMET
-
4890111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4990202-05180-00 WASHER, PLATEWASHER, PLATE
-
5090111-06117-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
511WD-F833E-00-00 BRACKET 8BRACKET 8
-
5295022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
531WD-F836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
541WD-F836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
5597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
5690269-06081-00 RIVETRIVET
-
571WD-F836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
5897707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
