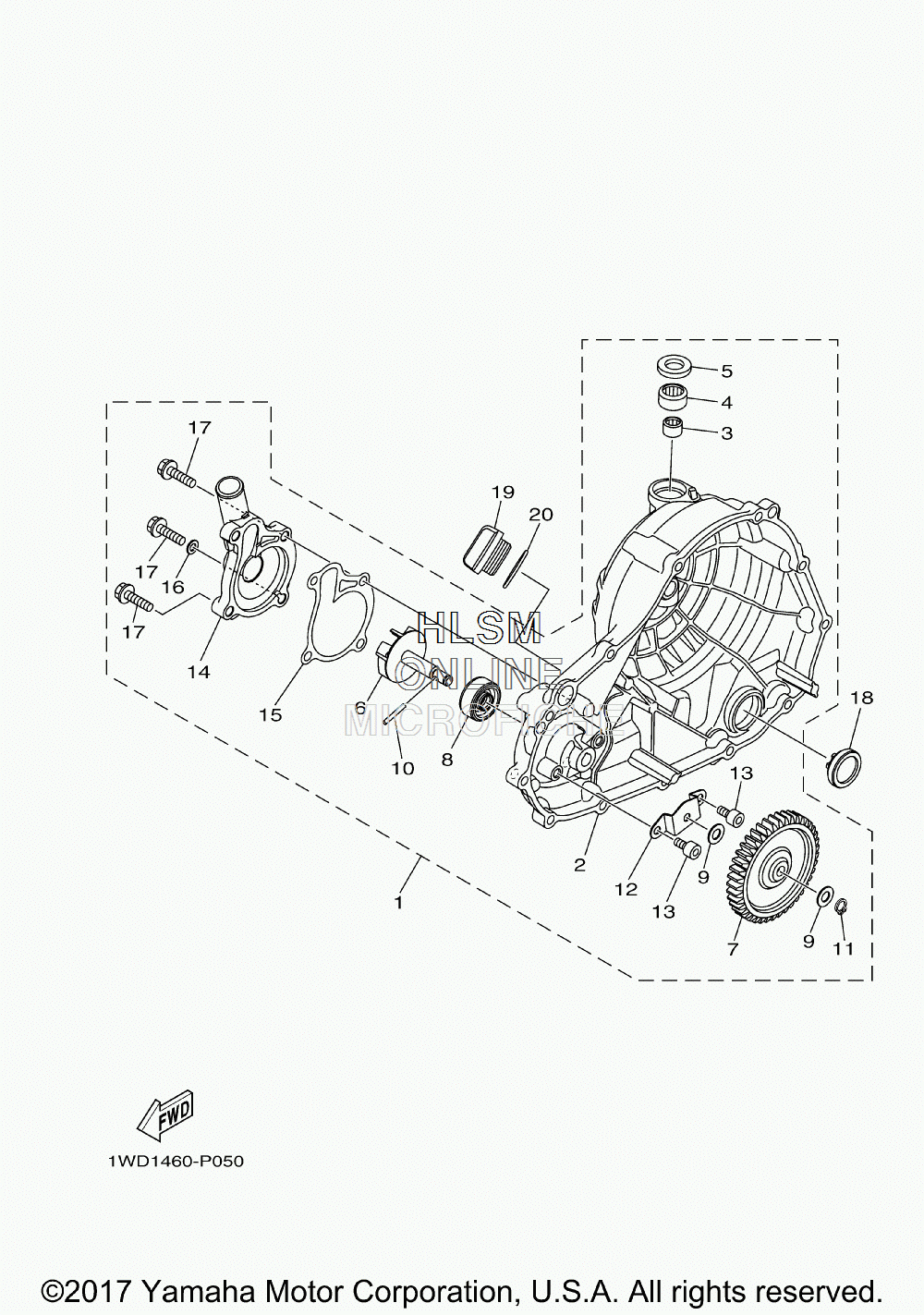

WATER PUMP для Yamaha YZFR3 - 2017 года выпуска
-
№АртикулНазвание
-
11WD-E2420-00-00 WATER PUMP ASSYWATER PUMP ASSY
-
21WD-E5421-00-00 ...COVER, CRANKCASE 2...COVER, CRANKCASE 2
-
393317-11096-00 ...BEARING...BEARING
-
493315-21570-00 ...BEARING...BEARING
-
593102-15801-00 ...OIL SEAL...OIL SEAL
-
61WD-E2450-00-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
71WD-E2453-00-00 ...GEAR...GEAR
-
833S-E2223-00-00 ...SEAL...SEAL
-
933S-E2456-00-00 ...WASHER...WASHER
-
101WD-E319L-00-00 ...PIN, STRAIGHT...PIN, STRAIGHT
-
1199009-08400-00 ...CIRCLIP...CIRCLIP
-
121WD-E2681-00-00 ...PLATE...PLATE
-
1391312-06010-00 ...BOLT...BOLT
-
141WD-E2422-00-00 ...COVER, HOUSING...COVER, HOUSING
-
151WD-E2428-00-00 ...GASKET, HOUSING COVER 2...GASKET, HOUSING COVER 2
-
1690430-06014-00 ...GASKET...GASKET
-
1795022-06025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
182H7-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
-
191WD-E5362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2093210-27807-00 O-RINGO-RING
