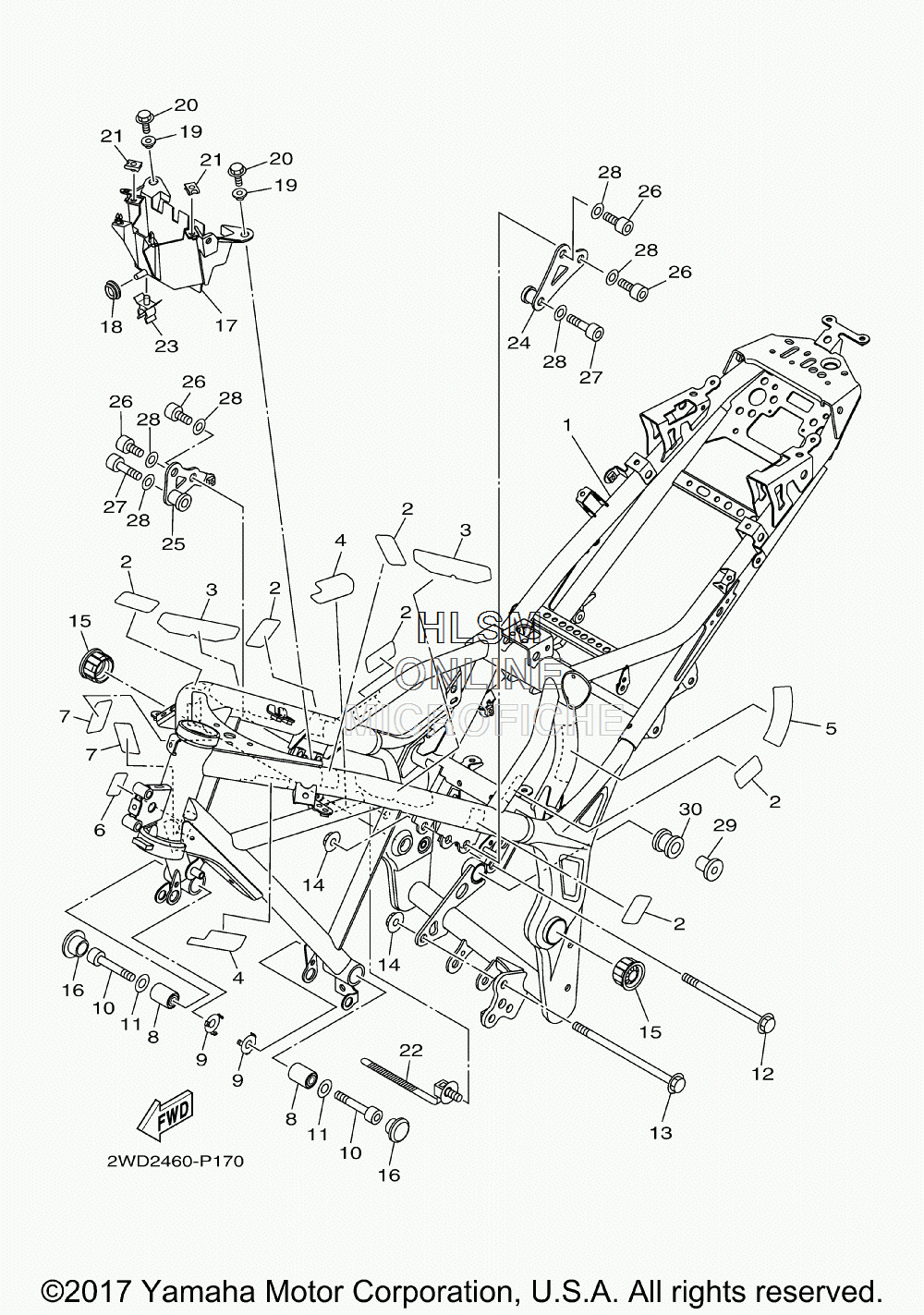

FRAME для Yamaha YZFR3 - 2017 года выпуска
-
№АртикулНазвание
-
11WD-F1110-11-00 FRAME COMP.FRAME COMP.
-
21WD-F113B-00-00 DAMPERDAMPER
-
31WD-F112C-00-00 DAMPER 2DAMPER 2
-
41WD-F117G-00-00 PROTECTORPROTECTOR
-
51WD-F1652-00-00 PROTECTORPROTECTOR
-
61WD-F193A-00-00 PROTECTORPROTECTOR
-
75D9-F414G-00-00 SEALSEAL
-
81WD-F2123-00-00 BUSH 1BUSH 1
-
91WD-F191B-00-00 PLATE 1PLATE 1
-
1091317-10060-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
1192902-10200-00 WASHERWASHER
-
1290105-10889-00 BOLT, FLANGEBOLT, FLANGE
-
1390105-10891-00 BOLT, FLANGEBOLT, FLANGE
-
1490179-10805-00 NUTNUT
-
151WD-F135F-00-00 COVERCOVER
-
1690338-23801-00 PLUGPLUG
-
171WD-F1171-00-00 BOXBOX
-
1890480-13398-00 GROMMETGROMMET
-
1990387-07819-00 COLLARCOLLAR
-
2095022-06014-00 BOLT, FLANGEBOLT, FLANGE
-
2190183-06818-00 NUT, SPRINGNUT, SPRING
-
2290464-30009-00 CLAMPCLAMP
-
2390464-12015-00 CLAMPCLAMP
-
241WD-F122A-00-00 STAY 1STAY 1
-
251WD-F122B-00-00 STAY 2STAY 2
-
2691317-10020-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
2791317-10045-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
2892907-10600-00 WASHER, PLATEWASHER, PLATE
-
2990387-08813-00 COLLARCOLLAR
-
305TP-E4747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
