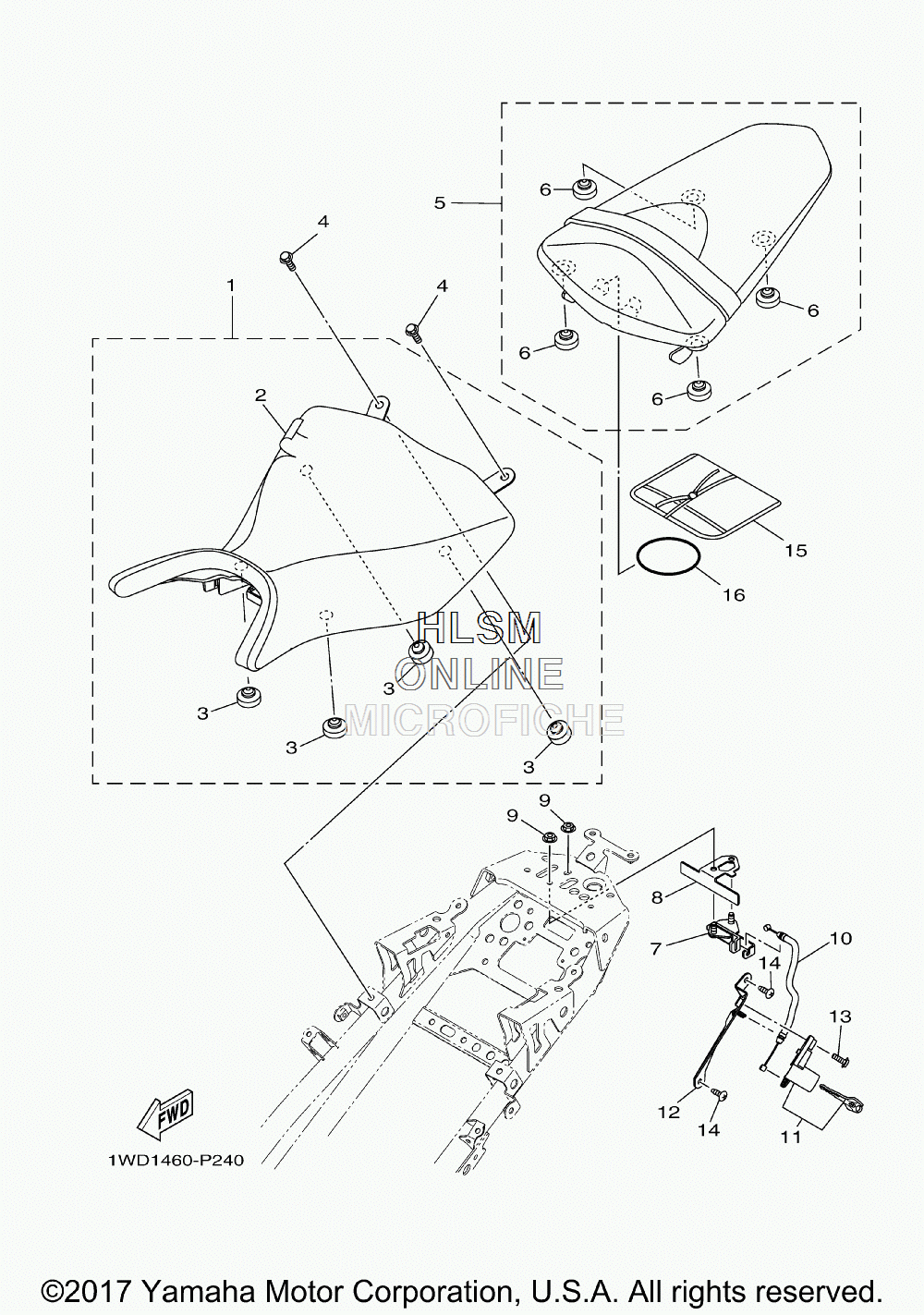

SEAT для Yamaha YZFR3 - 2017 года выпуска
-
№АртикулНазвание
-
11WD-F4710-01-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
21WD-F4711-00-00 ...COVER, SINGLE SEAT...COVER, SINGLE SEAT
-
35BP-F4741-00-00 ...PAD, SEAT...PAD, SEAT
-
495022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
51WD-F4750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
63C1-F4741-00-00 ...PAD, SEAT...PAD, SEAT
-
71WD-F4780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
81WD-F4792-00-00 PLATEPLATE
-
995707-06500-00 NUT, FLANGENUT, FLANGE
-
101WD-F478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
111WD-WF479-00-00 ROTOR SUB ASSY WITH KEYROTOR SUB ASSY WITH KEY
-
121WD-F117K-00-00 STAY, LOCKSTAY, LOCK
-
1390159-06054-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1497702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
151WD-F8100-00-00 TOOL KITTOOL KIT
-
165TL-H2131-00-00 BAND, BATTERYBAND, BATTERY
