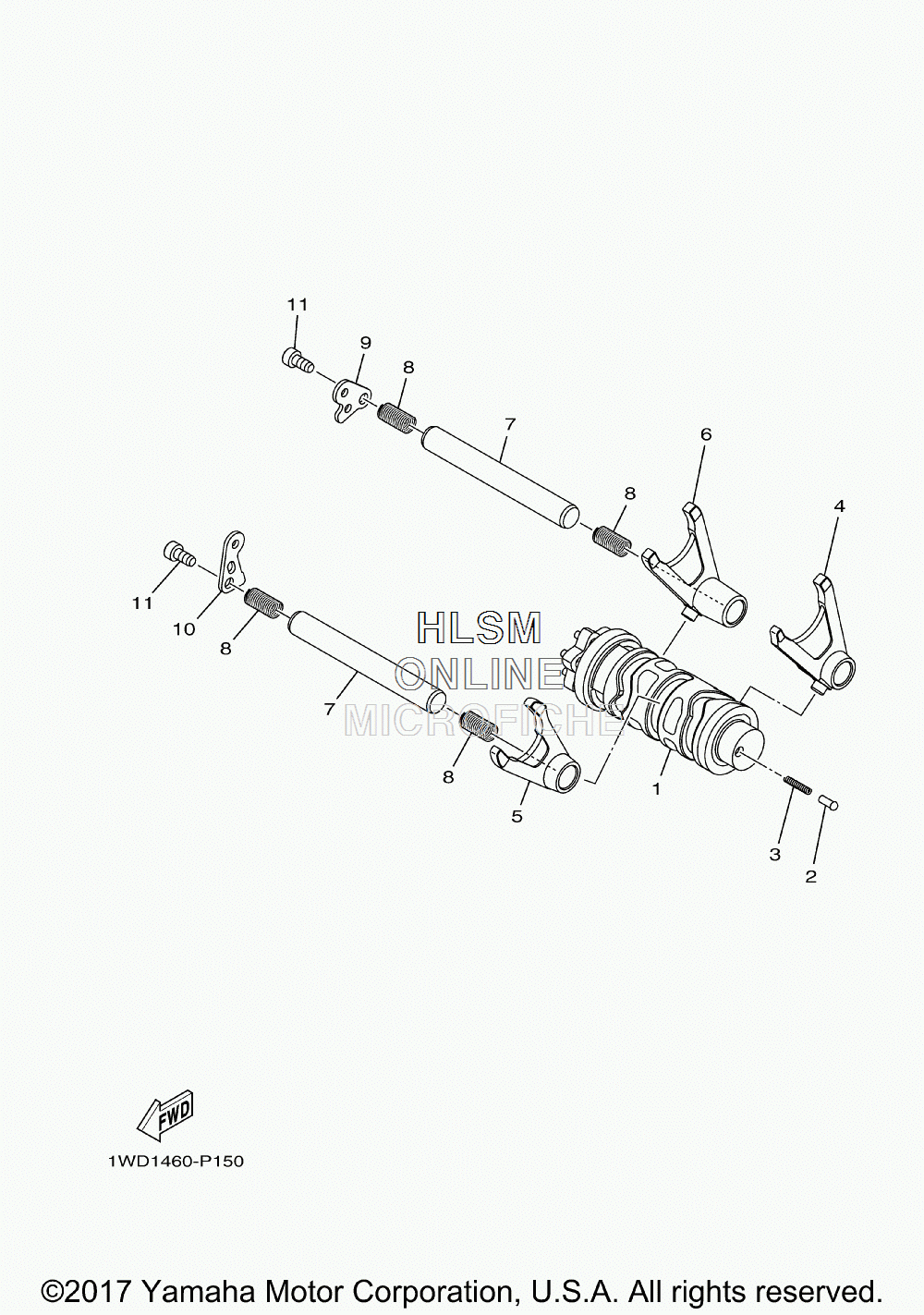

SHIFT CAM W/ FORK для Yamaha YZFR3 - 2017 года выпуска
-
№АртикулНазвание
-
11WD-E8540-10-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
25TP-E8542-00-00 POINT, NEUTRALPOINT, NEUTRAL
-
390501-06022-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
41WD-E8511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
51WD-E8512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
61WD-E8513-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
71WD-E8531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
890501-080A2-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
91WD-E8536-00-00 STOPPER, SHIFT BARSTOPPER, SHIFT BAR
-
101WD-E8562-00-00 PLATE, STOPPER 2PLATE, STOPPER 2
-
1190110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
