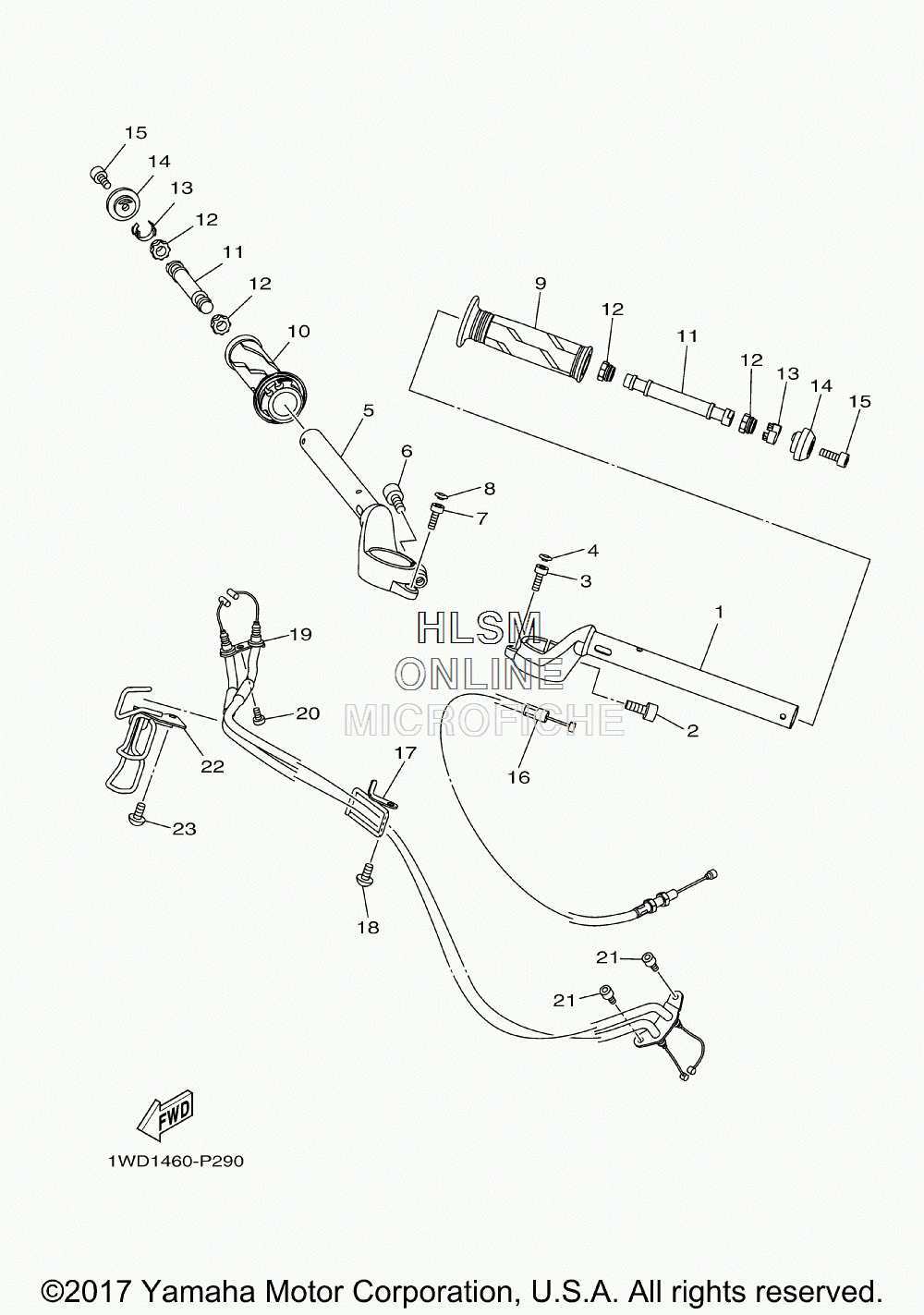

HANDLEBAR W/ CABLES для Yamaha YZFR3 - 2017 года выпуска
-
№АртикулНазвание
-
11WD-F6121-01-00 HANDLEBAR (LEFT)HANDLEBAR (LEFT)
-
291317-08020-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
391317-06016-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
490338-05010-00 PLUGPLUG
-
51WD-F6122-00-00 HANDLEBAR (RIGHT)HANDLEBAR (RIGHT)
-
691317-08020-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
791317-06016-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
890338-05010-00 PLUGPLUG
-
92DP-F6241-00-00 GRIPGRIP
-
101WD-F6240-00-00 GRIP ASSYGRIP ASSY
-
112MS-F622H-00-00 WEIGHTWEIGHT
-
121S7-F622F-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
131S7-F6257-00-00 STOPPERSTOPPER
-
141WD-F6246-00-00 END, GRIPEND, GRIP
-
1591317-06020-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
161WD-F6335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
171WD-F6131-00-00 GUIDE, CABLE 1GUIDE, CABLE 1
-
1892012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
191WD-F6301-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
2098507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2191312-05010-00 BOLTBOLT
-
221WD-F6132-00-00 GUIDE, CABLE 2GUIDE, CABLE 2
-
2392012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
