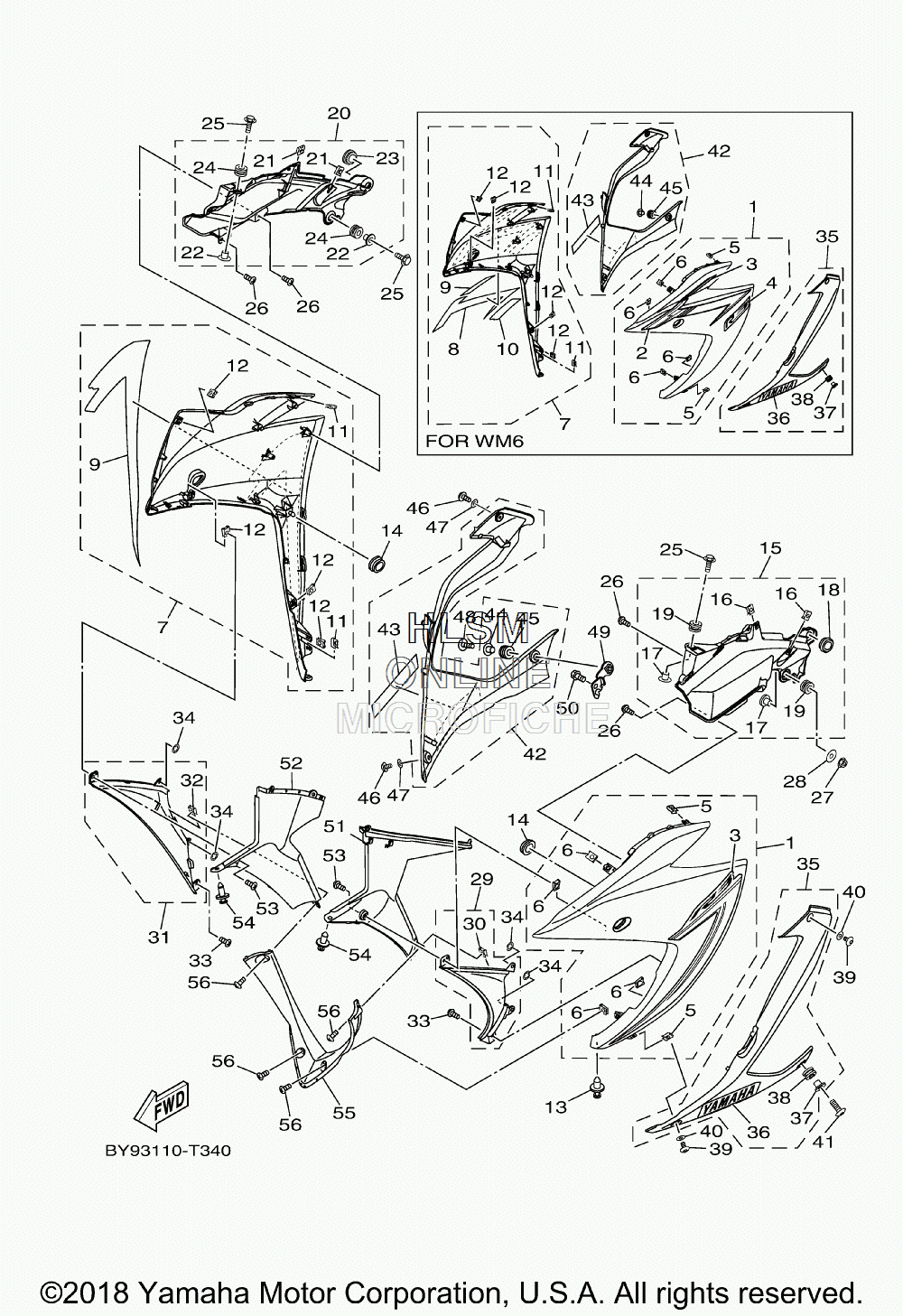

COWLING для Yamaha YZFR3 ABS - 2018 года выпуска
-
№АртикулНазвание
-
11WD-XF83L-90-P0 BODY, FRONT UNDER 1 SUB ASSY (SMX - BLACK METALLIC X)BODY, FRONT UNDER 1 SUB ASSY (SMX - BLACK METALLIC X)
-
11WD-XF83L-D0-P2 BODY, FRONT UNDER 1 SUB ASSY (OPT)BODY, FRONT UNDER 1 SUB ASSY (OPT)
-
21WD-F8393-F0-00 ...GRAPHIC 3 (WM6 - WHITE METALLIC 6)...GRAPHIC 3 (WM6 - WHITE METALLIC 6)
-
3BR5-F8398-00-00 ...GRAPHIC 5 (SMX - BLACK METALLIC X)...GRAPHIC 5 (SMX - BLACK METALLIC X)
-
31WD-F8398-E0-00 ...GRAPHIC 5 (WM6 - WHITE METALLIC 6)...GRAPHIC 5 (WM6 - WHITE METALLIC 6)
-
4BR5-F83GA-00-00 ...GRAPHIC, 7 (WM6 - WHITE METALLIC 6)...GRAPHIC, 7 (WM6 - WHITE METALLIC 6)
-
590183-050A7-00 ...NUT, SPRING...NUT, SPRING
-
690183-05807-00 ...NUT, SPRING...NUT, SPRING
-
71WD-XF83M-D0-P2 BODY, FRONT UNDER 2 SUB ASSY (WM6 - WHITE METALLIC 6)BODY, FRONT UNDER 2 SUB ASSY (WM6 - WHITE METALLIC 6)
-
71WD-XF83M-90-P0 BODY, FRONT UNDER 2 SUB ASSY (SMX - BLACK METALLIC X)BODY, FRONT UNDER 2 SUB ASSY (SMX - BLACK METALLIC X)
-
81WD-F8394-F0-00 ...GRAPHIC 4 (WM6 - WHITE METALLIC 6)...GRAPHIC 4 (WM6 - WHITE METALLIC 6)
-
9BR5-F8399-00-00 ...GRAPHIC 6 (SMX - BLACK METALLIC X)...GRAPHIC 6 (SMX - BLACK METALLIC X)
-
91WD-F8399-E0-00 ...GRAPHIC 6 (WM6 - WHITE METALLIC 6)...GRAPHIC 6 (WM6 - WHITE METALLIC 6)
-
10BR5-F83GA-00-00 ...GRAPHIC 7 (WM6 - WHITE METALLIC 6)...GRAPHIC 7 (WM6 - WHITE METALLIC 6)
-
1190183-050A7-00 ...NUT, SPRING...NUT, SPRING
-
1290183-05807-00 ...NUT, SPRING...NUT, SPRING
-
1390269-06081-00 RIVETRIVET
-
1490480-01558-00 GROMMETGROMMET
-
151WD-XF11W-40-P0 COVER 7 (MBL2 - MAT BLACK)COVER 7 (MBL2 - MAT BLACK)
-
1690183-050A7-00 ...NUT, SPRING...NUT, SPRING
-
1790387-06899-00 ...COLLAR...COLLAR
-
1890480-01558-00 ...GROMMET...GROMMET
-
1990480-12808-00 ...GROMMET...GROMMET
-
201WD-XF11X-40-P0 COVER 8 (MBL2 - MAT BLACK)COVER 8 (MBL2 - MAT BLACK)
-
2190183-050A7-00 ...NUT, SPRING...NUT, SPRING
-
2290387-06899-00 ...COLLAR...COLLAR
-
2390480-01558-00 ...GROMMET...GROMMET
-
2490480-12808-00 ...GROMMET...GROMMET
-
2590119-06810-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2795702-06500-00 NUT, FLANGENUT, FLANGE
-
2890201-06380-00 WASHER PLAINWASHER PLAIN
-
291WD-XF835-00-P0 PANEL ASSY (MBL2 - MAT BLACK)PANEL ASSY (MBL2 - MAT BLACK)
-
3090183-05807-00 ...NUT, SPRING...NUT, SPRING
-
311WD-XF83B-00-P0 PANEL ASSY 2 (MBL2 - MAT BLACK)PANEL ASSY 2 (MBL2 - MAT BLACK)
-
3290183-05807-00 ...NUT, SPRING...NUT, SPRING
-
3397707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
3490183-06815-00 NUT, SPRINGNUT, SPRING
-
351WD-XF838-20-P0 UNDER COVER ASSY 1 (MBL2 - MAT BLACK)UNDER COVER ASSY 1 (MBL2 - MAT BLACK)
-
351WD-XF838-30-P0 UNDER COVER ASSY 1 (MBL2 - MAT BLACK)UNDER COVER ASSY 1 (MBL2 - MAT BLACK)
-
361WD-F8328-70-00 ...EMBLEM (WM6 - WHITE METALLIC 6)...EMBLEM (WM6 - WHITE METALLIC 6)
-
361WD-F8328-30-00 ...EMBLEM (SMX - BLACK METALLIC X)...EMBLEM (SMX - BLACK METALLIC X)
-
3790387-06899-00 ...COLLAR...COLLAR
-
3890480-12808-00 ...GROMMET...GROMMET
-
3990111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4090202-05180-00 WASHER, PLATEWASHER, PLATE
-
4190111-06117-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
421WD-XF839-20-P0 UNDER COVER ASSY 2 (MBL2 - MAT BLACK)UNDER COVER ASSY 2 (MBL2 - MAT BLACK)
-
421WD-XF839-30-P0 UNDER COVER ASSY 2 (MBL2 - MAT BLACK)UNDER COVER ASSY 2 (MBL2 - MAT BLACK)
-
431WD-F8328-70-00 ...EMBLEM (WM6 - WHITE METALLIC 6)...EMBLEM (WM6 - WHITE METALLIC 6)
-
431WD-F8328-30-00 ...EMBLEM (SMX - BLACK METALLIC X)...EMBLEM (SMX - BLACK METALLIC X)
-
4490387-06899-00 ...COLLAR...COLLAR
-
4590480-12808-00 ...GROMMET...GROMMET
-
4690111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4790202-05180-00 WASHER, PLATEWASHER, PLATE
-
4890111-06117-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
491WD-F833E-00-00 BRACKET 8BRACKET 8
-
5095022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
511WD-F836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
521WD-F836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
5397707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
5490269-06081-00 RIVETRIVET
-
551WD-F836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
5697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
