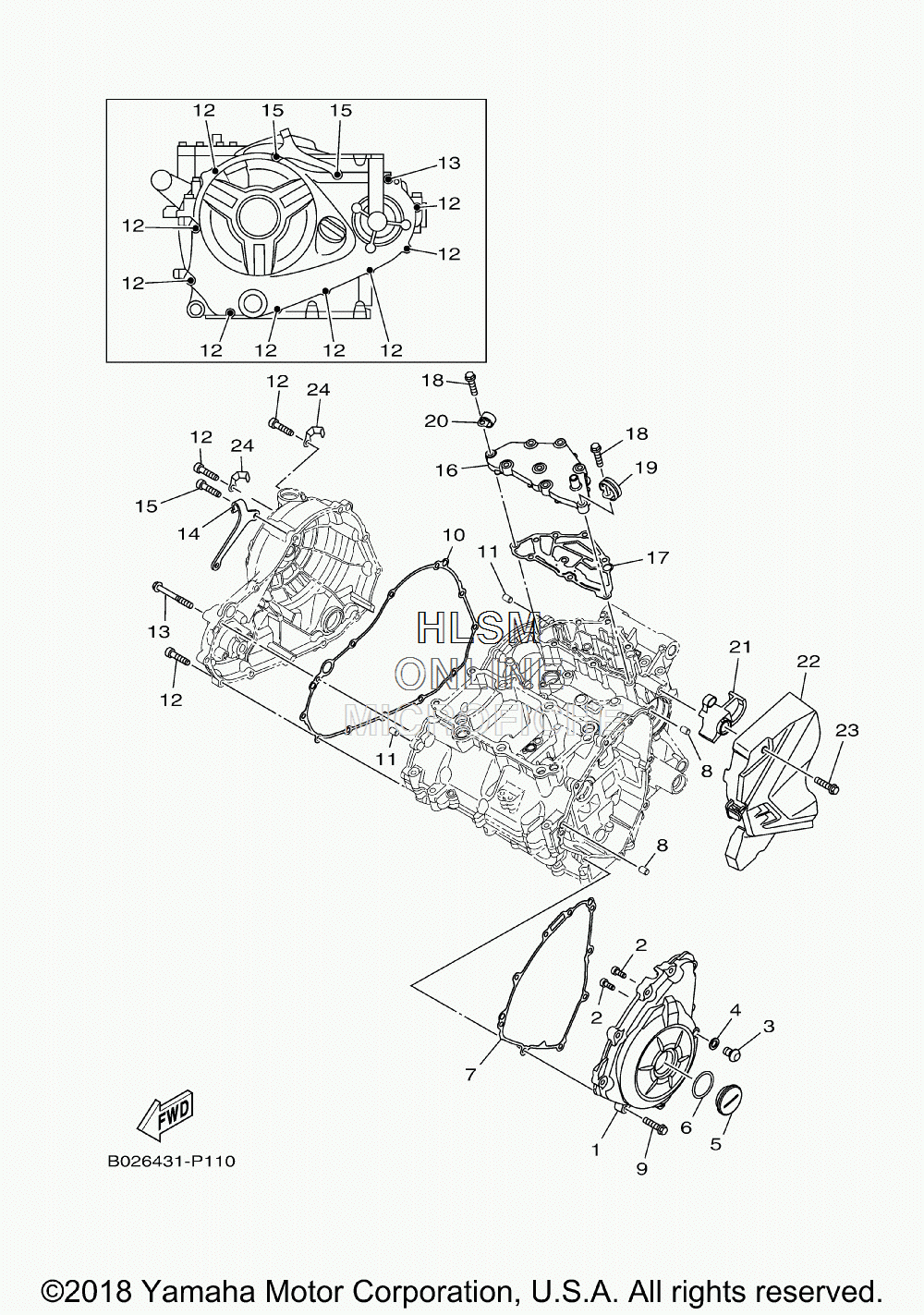

CRANKCASE COVER для Yamaha YZFR3 ABS - 2018 года выпуска
-
№АртикулНазвание
-
11WD-E5411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
291312-05012-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
392014-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
490430-08143-00 GASKETGASKET
-
590340-32819-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
693210-32816-00 O-RINGO-RING
-
71WD-E5451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
899530-08012-00 PIN, DOWELPIN, DOWEL
-
995022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
101WD-E5461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1199530-08012-00 PIN, DOWELPIN, DOWEL
-
1295022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1395022-06050-00 BOLT, FLANGEBOLT, FLANGE
-
142MS-E5441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
1591312-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
161WD-E5413-10-00 COVERCOVER
-
171WD-E5462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
1895022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1990462-08812-00 CLAMPCLAMP
-
2090462-08806-00 CLAMPCLAMP
-
211WD-E5377-00-00 GUIDE, INLETGUIDE, INLET
-
221WD-E5418-00-00 COVER, CHAIN CASECOVER, CHAIN CASE
-
2395022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2490462-08225-00 CLAMPCLAMP
