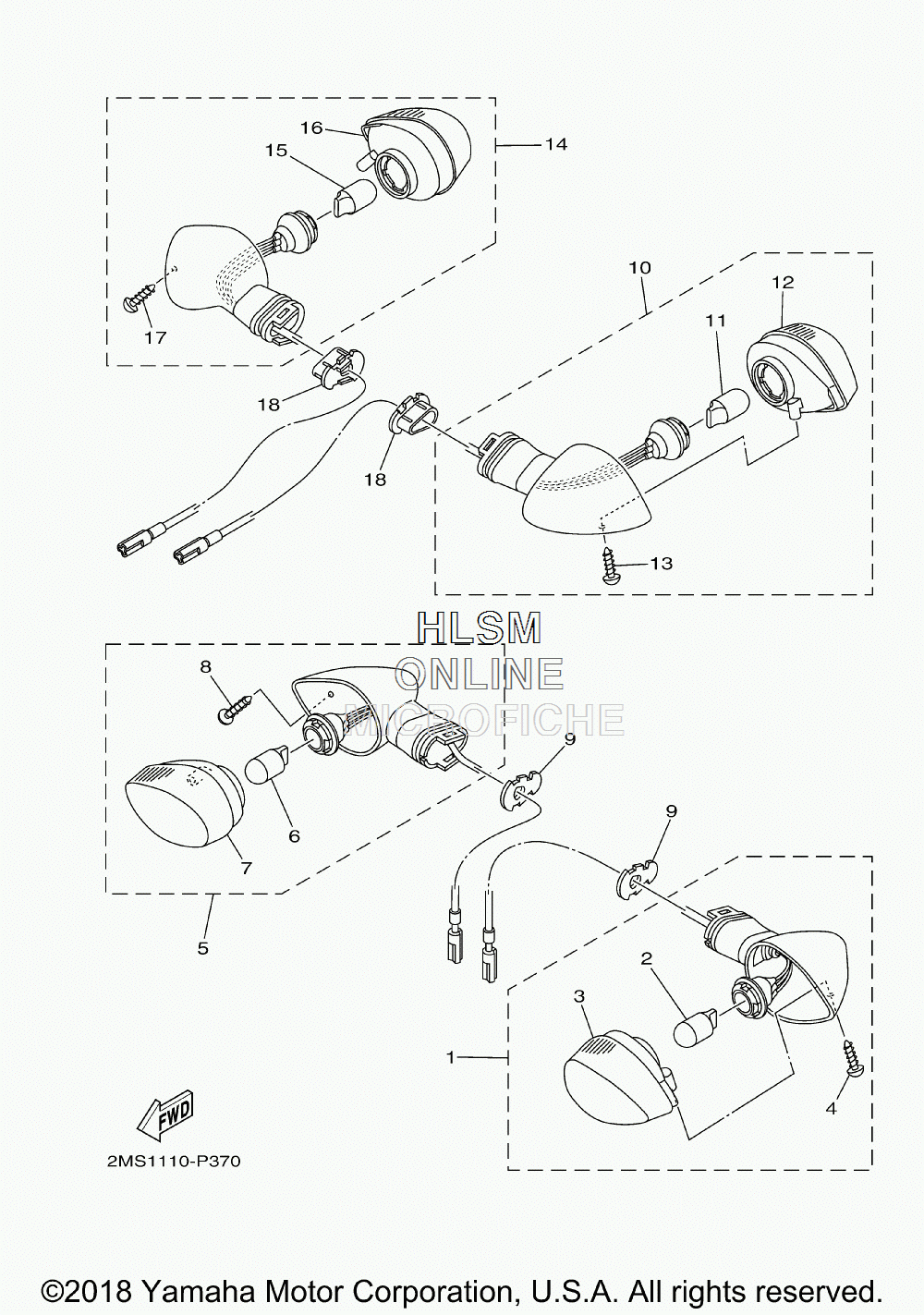

FLASHER LIGHT для Yamaha YZFR3 ABS - 2018 года выпуска
-
№АртикулНазвание
-
12MS-H3310-00-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
25GJ-83331-00-00 ...BULB, FLASHER (12V-21/5W T2...BULB, FLASHER (12V-21/5W T2
-
35PW-8333A-10-00 ...LENS COMP 1...LENS COMP 1
-
497707-40012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
52MS-H3320-00-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
65GJ-83331-00-00 ...BULB, FLASHER (12V-21/5W T2...BULB, FLASHER (12V-21/5W T2
-
75PW-8334A-10-00 ...LENS COMP 2...LENS COMP 2
-
897707-40012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
93D7-83318-10-00 STAY, FLASHER 1STAY, FLASHER 1
-
102MS-H3330-00-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
115PW-83331-00-00 ...BULB (12V-21/5W T20)...BULB (12V-21/5W T20)
-
125PW-8334A-10-00 ...LENS COMP 2...LENS COMP 2
-
1397707-40012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
142MS-H3340-00-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
155PW-83331-00-00 ...BULB (12V-21/5W T20)...BULB (12V-21/5W T20)
-
165PW-8333A-10-00 ...LENS COMP 1...LENS COMP 1
-
1797707-40012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
181WD-H3318-00-00 STAY, FLASHER 1STAY, FLASHER 1
