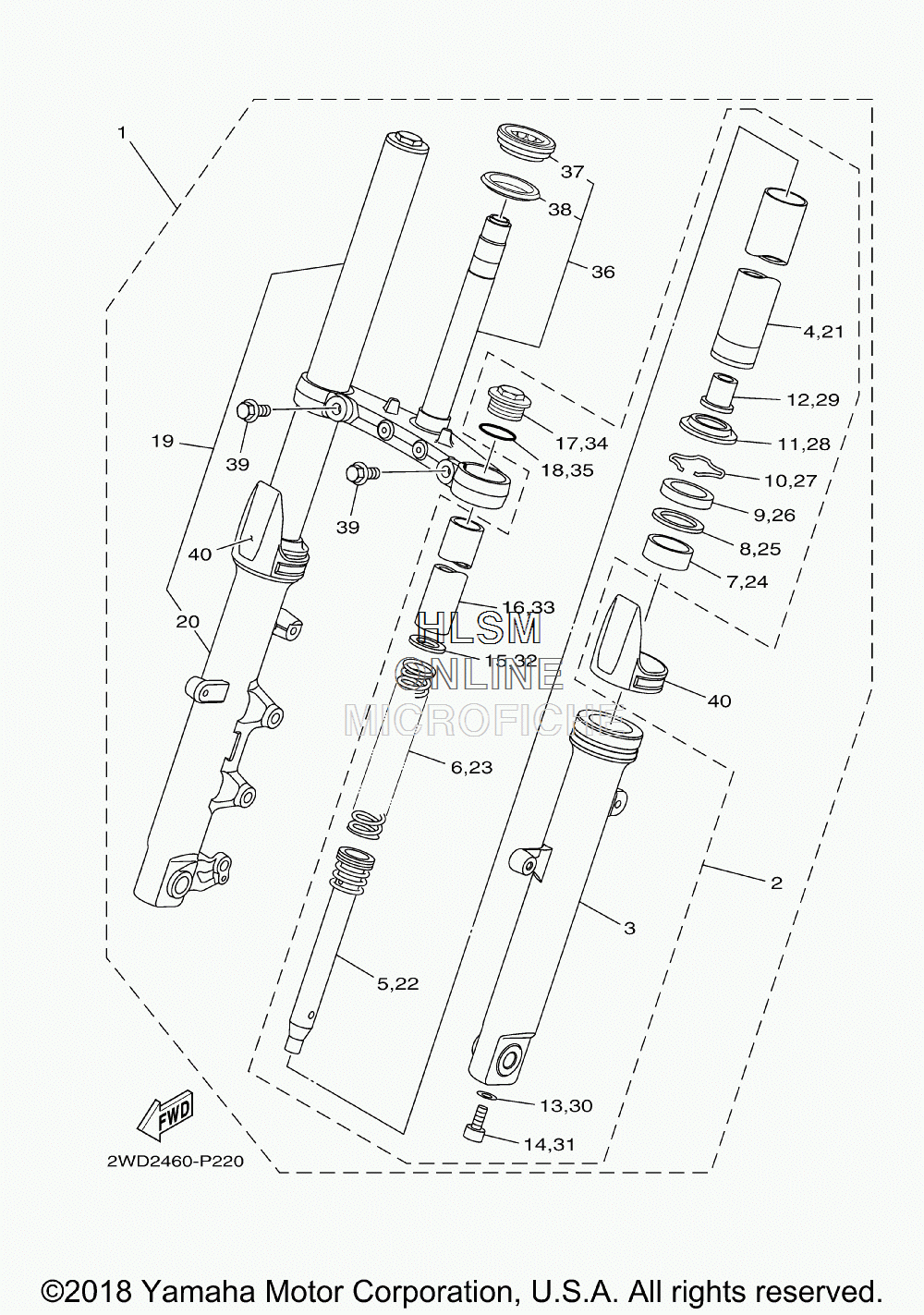

SUSPENSION - FRONT FORK для Yamaha YZFR3 ABS - 2018 года выпуска
-
№АртикулНазвание
-
12WD-F3100-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
21WD-F3102-00-00 ...FRONT FORK ASSY (L.H)...FRONT FORK ASSY (L.H)
-
31WD-F3126-00-00 ......TUBE, OUTER (L.H)......TUBE, OUTER (L.H)
-
41WD-F3110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
51WD-F3170-00-00 ......CYLINDER COMP., FRONT FOR......CYLINDER COMP., FRONT FOR
-
61WD-F3141-00-00 ......SPRING, FRONT FORK......SPRING, FRONT FORK
-
745P-F3125-00-00 ......METAL, SLIDE 1......METAL, SLIDE 1
-
845P-F3146-00-00 ......WASHER, OIL SEAL......WASHER, OIL SEAL
-
945P-F3145-00-00 ......OIL SEAL (INCL. IN FORK SEAL KIT)......OIL SEAL (INCL. IN FORK SEAL KIT)
-
1045P-F3156-00-00 ......RING, SNAP......RING, SNAP
-
1145P-F3144-00-00 ......SEAL, DUST (INCL. IN FORK SEAL KIT)......SEAL, DUST (INCL. IN FORK SEAL KIT)
-
121WD-F3173-00-00 ......SPINDLE, TAPER......SPINDLE, TAPER
-
13509-F3158-L0-00 ......GASKET......GASKET
-
1431B-F3181-00-00 ......BOLT, HEXAGON SOCKET HEAD......BOLT, HEXAGON SOCKET HEAD
-
1545P-F3149-00-00 ......WASHER, SPRING UPPER......WASHER, SPRING UPPER
-
161WD-F3118-00-00 ......SPACER......SPACER
-
1745P-F3111-00-00 ......BOLT, CAP......BOLT, CAP
-
1845P-F3188-00-00 ......O-RING......O-RING
-
192WD-F3103-00-00 ...FRONT FORK ASSY (R.H)...FRONT FORK ASSY (R.H)
-
202WD-F3136-00-00 ......TUBE, OUTER (R.H)......TUBE, OUTER (R.H)
-
211WD-F3110-00-00 .........INNER TUBE COMP. 1.........INNER TUBE COMP. 1
-
221WD-F3170-00-00 .........CYLINDER COMP., FRONT FOR.........CYLINDER COMP., FRONT FOR
-
231WD-F3141-00-00 .........SPRING, FRONT FORK.........SPRING, FRONT FORK
-
2445P-F3125-00-00 .........METAL, SLIDE 1.........METAL, SLIDE 1
-
2545P-F3146-00-00 .........WASHER, OIL SEAL.........WASHER, OIL SEAL
-
2645P-F3145-00-00 .........OIL SEAL (INCL. IN FORK SEAL KIT).........OIL SEAL (INCL. IN FORK SEAL KIT)
-
2745P-F3156-00-00 .........RING, SNAP.........RING, SNAP
-
2845P-F3144-00-00 .........SEAL, DUST (INCL. IN FORK SEAL KIT).........SEAL, DUST (INCL. IN FORK SEAL KIT)
-
291WD-F3173-00-00 .........SPINDLE, TAPER.........SPINDLE, TAPER
-
30509-F3158-L0-00 .........GASKET.........GASKET
-
3131B-F3181-00-00 .........BOLT, HEXAGON SOCKET HEAD.........BOLT, HEXAGON SOCKET HEAD
-
3245P-F3149-00-00 .........WASHER, SPRING UPPER.........WASHER, SPRING UPPER
-
331WD-F3118-00-00 .........SPACER.........SPACER
-
3445P-F3111-00-00 .........BOLT, CAP.........BOLT, CAP
-
3545P-F3188-00-00 .........O-RING.........O-RING
-
361WD-F3340-00-00 ...UNDER BRACKET COMP....UNDER BRACKET COMP.
-
3793399-99932-00 ......BEARING......BEARING
-
383FV-23462-00-00 ......SEAL, STEERING......SEAL, STEERING
-
3945P-F3346-00-00 ...BOLT 1...BOLT 1
-
401WS-2331G-00-00 ...COVER...COVER
-
412MS-W003B-00-00 FORK SEAL KITFORK SEAL KIT
