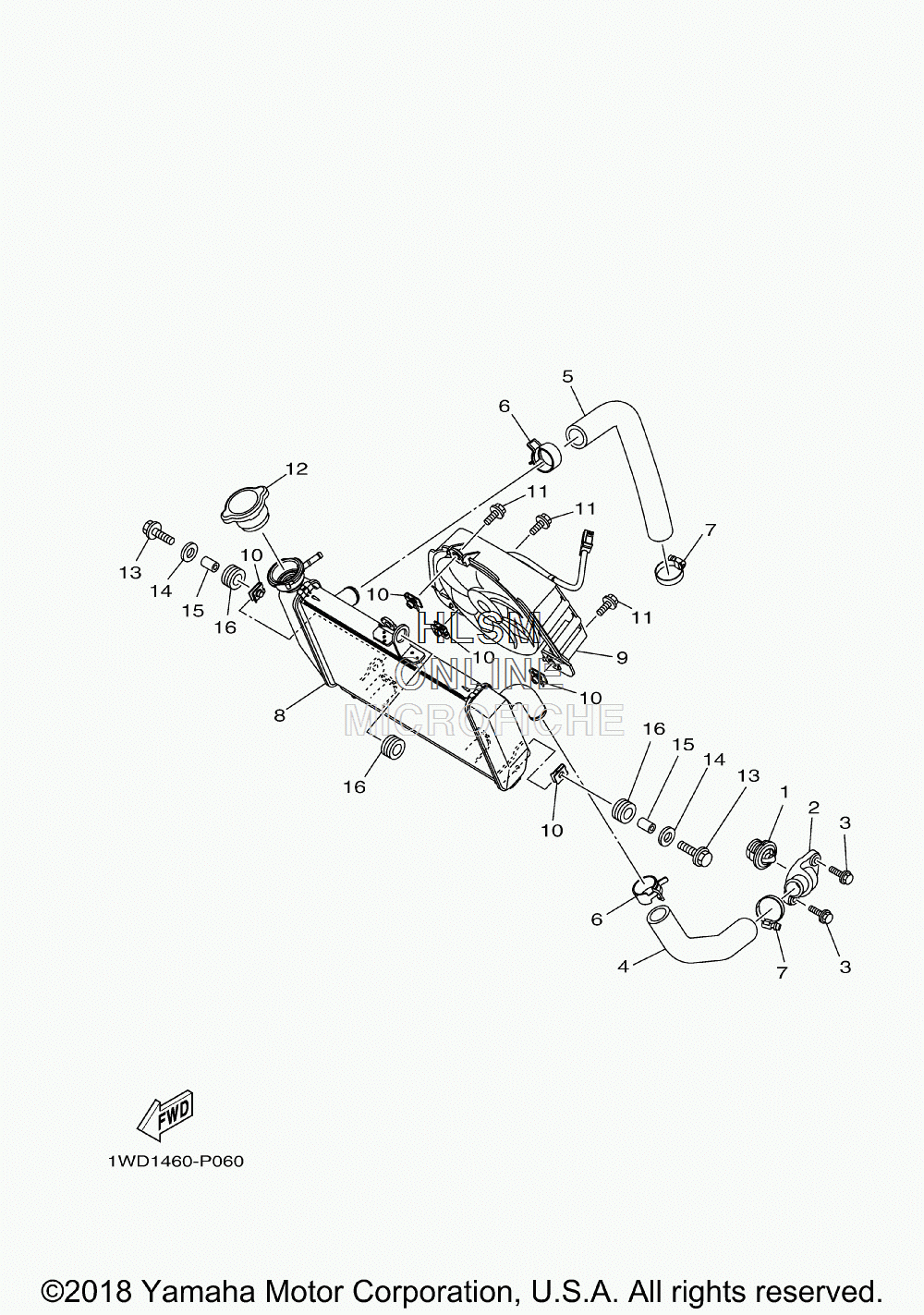

RADIATOR для Yamaha YZFR3 ABS - 2018 года выпуска
-
№АртикулНазвание
-
15P0-12411-00-00 THERMOSTATTHERMOSTAT
-
21WD-E2413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
395022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
42MS-E2577-00-00 HOSE 2HOSE 2
-
51WD-E2578-00-00 HOSE 3HOSE 3
-
690467-250A1-00 CLIPCLIP
-
790450-28001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
81WD-E2461-00-00 RADIATOR COMPRADIATOR COMP
-
92MS-E2405-00-00 BLOWER ASSYBLOWER ASSY
-
101WD-E2671-00-00 NUT 1NUT 1
-
115YP-E2675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
125ST-E2462-00-00 CAP, RADIATORCAP, RADIATOR
-
1395827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1490201-06072-00 WASHER, PLATEWASHER, PLATE
-
1590387-064W3-00 COLLARCOLLAR
-
1690480-15808-00 GROMMETGROMMET
