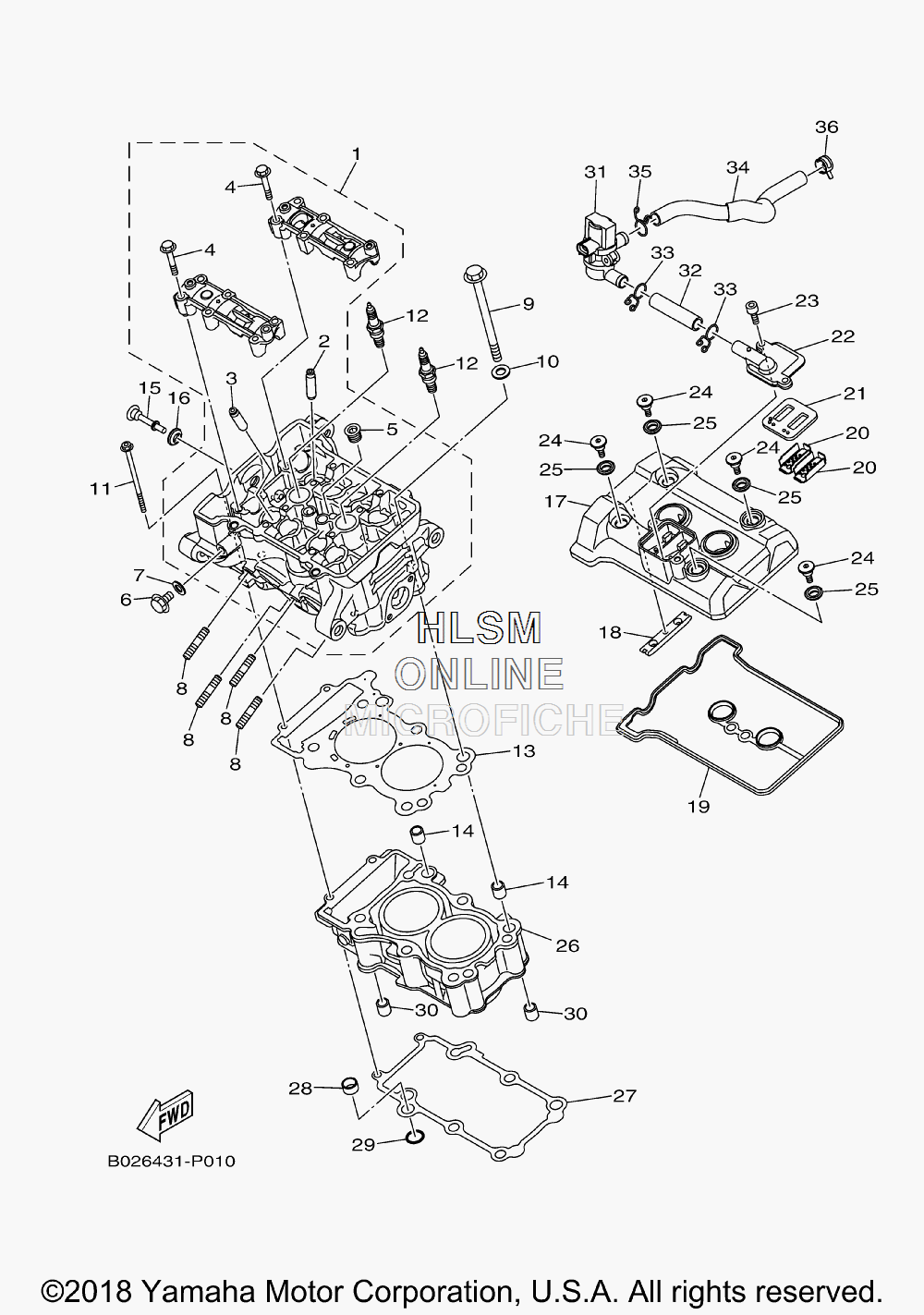

CYLINDER HEAD для Yamaha YZFR3 ABS - 2018 года выпуска
-
№АртикулНазвание
-
12MS-E1102-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
22MS-E1133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
31WD-E1133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
490105-06027-00 ...BOLT, FLANGE...BOLT, FLANGE
-
590340-18002-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
695022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
790430-08119-00 GASKETGASKET
-
895612-08625-00 BOLT, STUDBOLT, STUD
-
92MS-11361-00-00 BOLT, CYLINDER HOLDING 1BOLT, CYLINDER HOLDING 1
-
1090201-10845-00 WASHER, PLATEWASHER, PLATE
-
1190110-06870-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1294700-00330-00 PLUG, SPARK (NGK R CR8E)PLUG, SPARK (NGK R CR8E)
-
132MS-E1181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1499530-14016-00 PIN, DOWELPIN, DOWEL
-
1590109-06898-00 BOLTBOLT
-
161WD-E111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
171WD-E1191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
181WD-E2241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
191WD-E1193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
205VY-1482K-00-00 PLATEPLATE
-
211WD-E4890-00-00 REED VALVE ASSYREED VALVE ASSY
-
221WD-E4899-00-00 CAP, CASECAP, CASE
-
2391312-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2490109-06899-00 BOLTBOLT
-
251WD-E111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
262MS-E1311-00-00 CYLINDER 1CYLINDER 1
-
271WD-E1351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
285NL-12564-00-00 PIPE, WATERPIPE, WATER
-
2993210-16716-00 O-RINGO-RING
-
3099530-14016-00 PIN, DOWELPIN, DOWEL
-
311WD-E4840-00-00 AIR CUT VALVE ASSYAIR CUT VALVE ASSY
-
321WD-E4881-00-00 HOSE, BEND 1HOSE, BEND 1
-
3390467-16801-00 CLIPCLIP
-
341WD-E4882-01-00 HOSE, BEND 2HOSE, BEND 2
-
3590467-16801-00 CLIPCLIP
-
3690467-16800-00 CLIPCLIP
