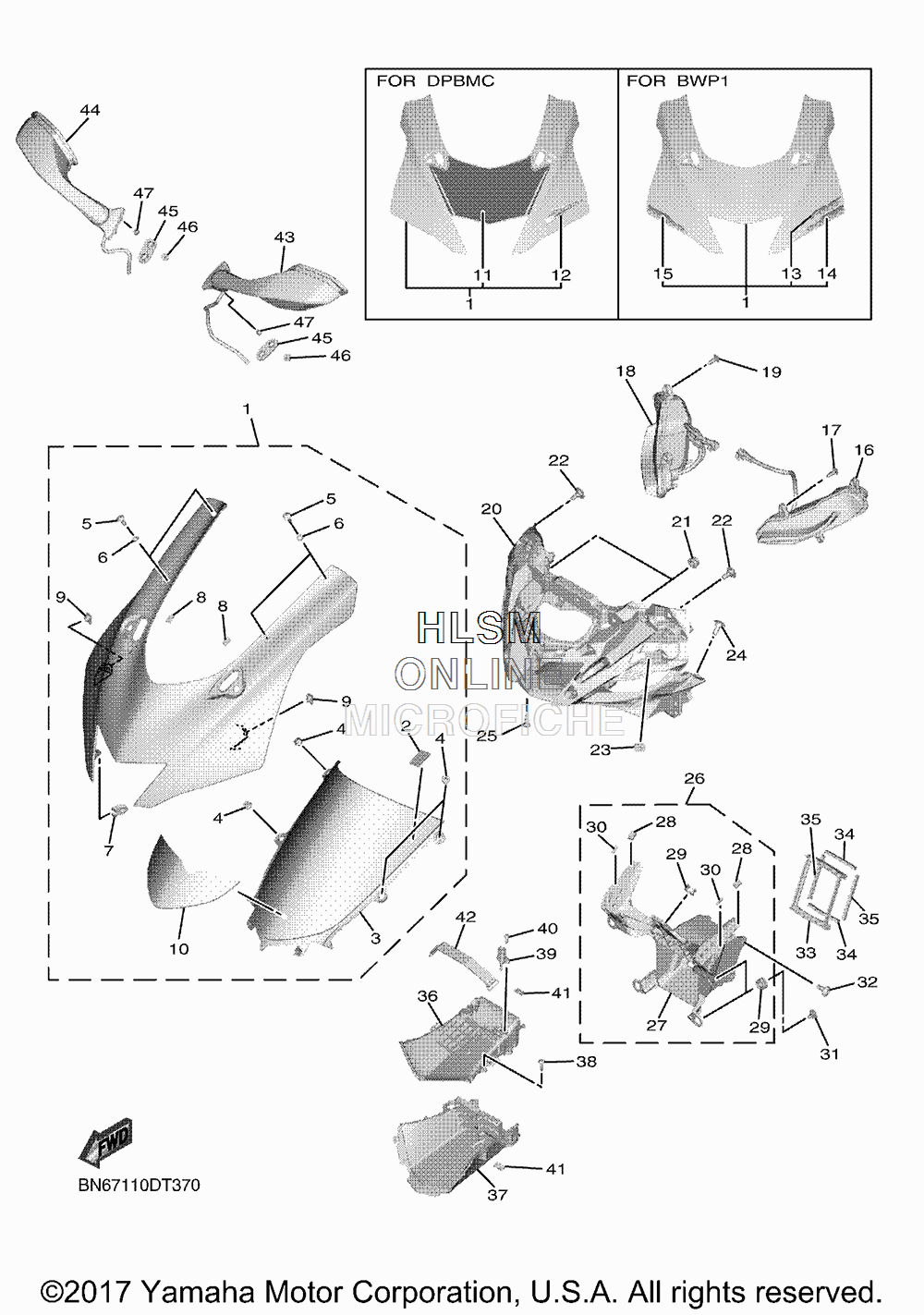

COWLING - FRONT для Yamaha YZFR6 - 2018 года выпуска
-
№АртикулНазвание
-
1BN6-Y283G-A0-P0 BODY, FRONT UPPER 1 (DPBMC - DEEP PURPLISH BLUE)BODY, FRONT UPPER 1 (DPBMC - DEEP PURPLISH BLUE)
-
1BN6-Y283G-C0-P3 BODY, FRONT UPPER 1 (MNM3 - MAT GRAY)BODY, FRONT UPPER 1 (MNM3 - MAT GRAY)
-
1BN6-Y283G-E0-P2 BODY, FRONT UPPER 1 (BWP1 - BLUISH WHITE)BODY, FRONT UPPER 1 (BWP1 - BLUISH WHITE)
-
24B5-2815K-00-00 ...LABEL, NOTICE WINDSHIELD 1...LABEL, NOTICE WINDSHIELD 1
-
3BN6-28381-00-00 ...WINDSHIELD...WINDSHIELD
-
490179-05523-00 ...NUT...NUT
-
590150-05023-00 ...SCREW, ROUND HEAD...SCREW, ROUND HEAD
-
690202-05088-00 ...WASHER, PLATE...WASHER, PLATE
-
790464-07018-00 ...CLAMP...CLAMP
-
820S-2814H-11-00 ...HOOK 1...HOOK 1
-
990183-060A6-00 ...NUT, SPRING...NUT, SPRING
-
10BN6-2832P-00-00 ...GRAPHIC, 18...GRAPHIC, 18
-
11BN6-2832D-00-00 ......GRAPHIC 17 (DPBMC - DEEP PURPLISH BLUE)......GRAPHIC 17 (DPBMC - DEEP PURPLISH BLUE)
-
122CR-2173X-00-00 ......GRAPHIC 7 (DPBMC - DEEP PURPLISH BLUE)......GRAPHIC 7 (DPBMC - DEEP PURPLISH BLUE)
-
13BN6-28328-20-00 ......EMBLEM (BWP1 - BLUISH WHITE)......EMBLEM (BWP1 - BLUISH WHITE)
-
14BN6-2832K-30-00 ......GRAPHIC, 12 (BWP1 - BLUISH WHITE)......GRAPHIC, 12 (BWP1 - BLUISH WHITE)
-
15BN6-2832L-30-00 ......GRAPHIC, 13 (BWP1 - BLUISH WHITE)......GRAPHIC, 13 (BWP1 - BLUISH WHITE)
-
16BN6-84301-00-00 PILOT LIGHT ASSY 1PILOT LIGHT ASSY 1
-
1797707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
18BN6-84302-00-00 PILOT LIGHT ASSY 2PILOT LIGHT ASSY 2
-
1997707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
20BN6-2830A-00-00 BODY, COWLINGBODY, COWLING
-
2190480-10003-00 GROMMETGROMMET
-
2290109-06061-00 BOLTBOLT
-
2390183-05076-00 NUT, SPRINGNUT, SPRING
-
2490109-06061-00 BOLTBOLT
-
2590269-06008-00 RIVETRIVET
-
26BN6-28320-00-00 LEG SHIELD STAY SETLEG SHIELD STAY SET
-
27BN6-28356-00-00 ...STAY 1...STAY 1
-
2820S-2814H-11-00 ...HOOK 1...HOOK 1
-
294XV-83513-00-00 ...DAMPER...DAMPER
-
301HX-27415-00-00 ...PLATE, DAMPER...PLATE, DAMPER
-
3190160-05006-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
3290111-06116-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
332C0-28342-01-00 JOINTJOINT
-
342C0-28217-00-00 DAMPER 1DAMPER 1
-
352C0-28227-00-00 DAMPER 2DAMPER 2
-
36BN6-2838R-00-00 DUCT 2DUCT 2
-
37BN6-2838T-00-00 DUCT 3DUCT 3
-
3897707-40016-00 SCREW, TAPPINGSCREW, TAPPING
-
398FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
4097702-50116-00 SCREW, TAPPINGSCREW, TAPPING
-
4151Y-21639-00-00 DAMPER 2DAMPER 2
-
42133-82131-00-00 BAND, BATTERYBAND, BATTERY
-
43BN6-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
44BN6-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
454C8-26298-00-00 PLATE, MIRROR FITTING 1PLATE, MIRROR FITTING 1
-
4690176-06055-00 NUT, CROWNNUT, CROWN
-
4790387-064T3-00 COLLARCOLLAR
