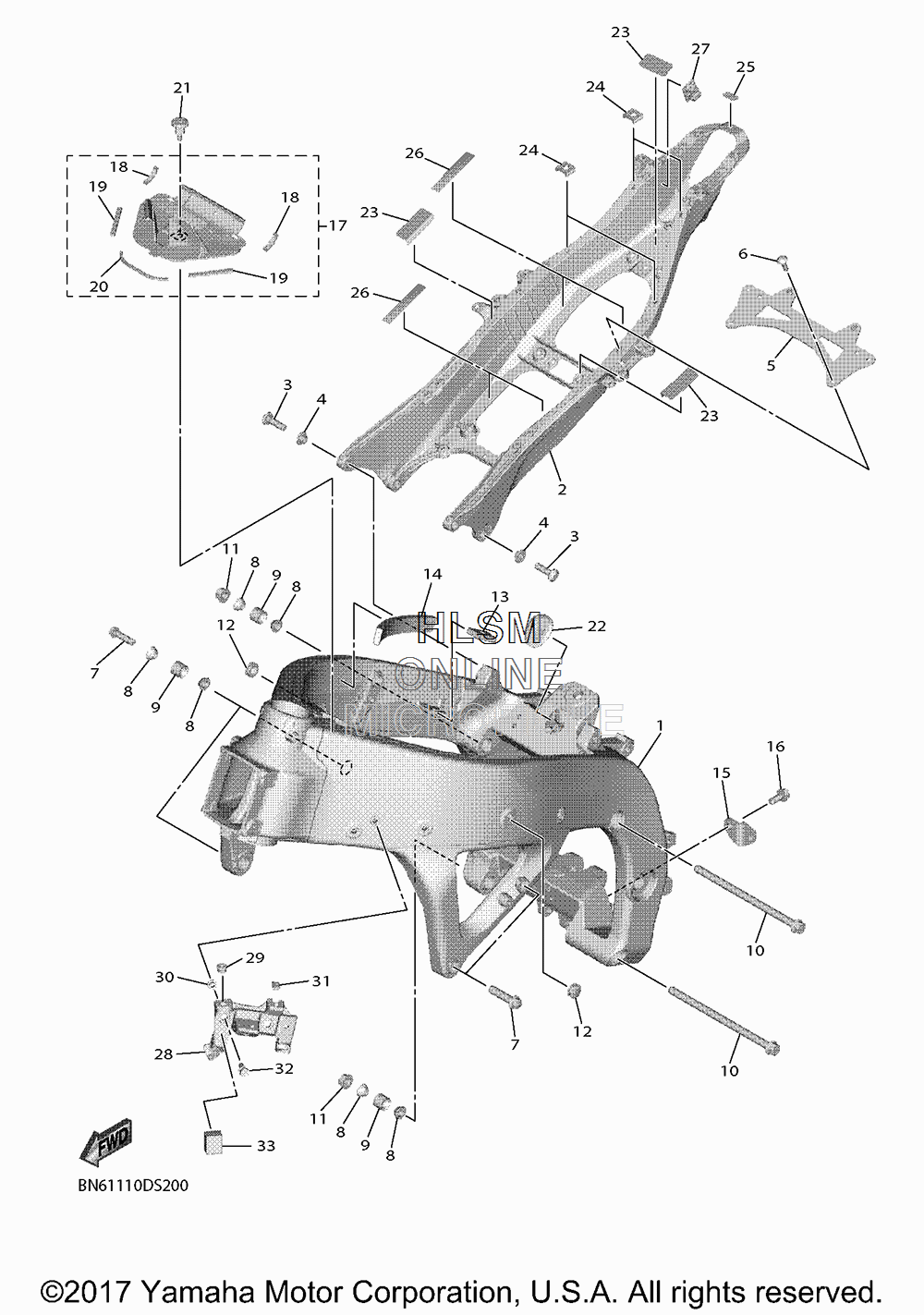

FRAME для Yamaha YZFR6 - 2018 года выпуска
-
№АртикулНазвание
-
1BN6-21110-00-00 FRAME COMP.FRAME COMP.
-
2BN6-21190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
390149-10002-00 SCREWSCREW
-
42CR-21116-00-00 COLLARCOLLAR
-
5BN6-21670-00-00 REINF. COMP.REINF. COMP.
-
690111-06155-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
795024-10040-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
813S-21414-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
913S-21424-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
1090105-12228-00 BOLT, FLANGEBOLT, FLANGE
-
1190179-12004-00 NUTNUT
-
1290338-15004-00 PLUGPLUG
-
132C0-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
142C0-21486-00-00 DAMPER 2DAMPER 2
-
1513S-21435-00-00 BRACKET, MUFFLER 1BRACKET, MUFFLER 1
-
1690105-08171-00 BOLT, FLANGEBOLT, FLANGE
-
1713S-2110M-00-00 COVER ASSY 1COVER ASSY 1
-
1813S-2174X-00-00 ...DAMPER...DAMPER
-
192C0-2174Y-00-00 ...DAMPER...DAMPER
-
202C0-21746-00-00 ...DAMPER...DAMPER
-
2190269-07010-00 RIVETRIVET
-
222C0-21279-00-00 PLUG, BLINDPLUG, BLIND
-
234B5-28268-00-00 SEAL 4SEAL 4
-
242CR-22875-01-00 SEAL 3SEAL 3
-
255SL-21268-00-00 SEALSEAL
-
264B5-28238-00-00 SEAL 3SEAL 3
-
2790464-13004-00 CLAMPCLAMP
-
2813S-2833A-00-00 BRACKET 7BRACKET 7
-
2990480-10003-00 GROMMETGROMMET
-
3090387-06048-00 COLLARCOLLAR
-
3190183-05076-00 NUT, SPRINGNUT, SPRING
-
3295D02-06020-00 BOLT, FLANGE DEEP RECESSBOLT, FLANGE DEEP RECESS
-
3313S-12679-00-00 DAMPER, SHROUD 6DAMPER, SHROUD 6
