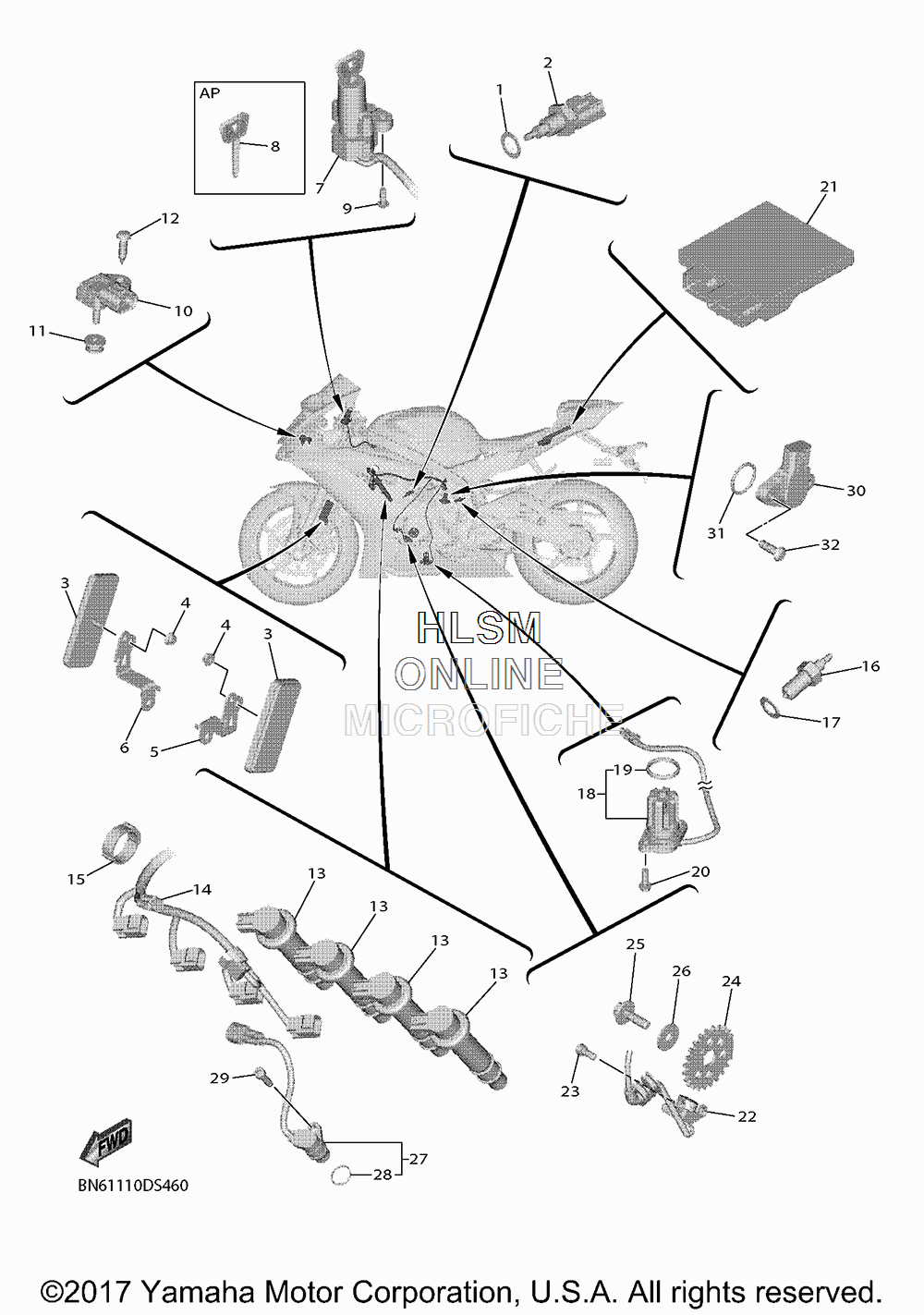

ELECTRICAL для Yamaha YZFR6 - 2018 года выпуска
-
№АртикулНазвание
-
190201-12790-00 WASHER, PLATEWASHER, PLATE
-
25YP-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
311H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
495702-05500-00 NUT, FLANGENUT, FLANGE
-
5BN6-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
6BN6-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
7BN6-82501-10-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
84BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
990109-08195-00 BOLTBOLT
-
101WS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
1190480-08006-00 GROMMETGROMMET
-
1297702-50120-00 SCREW, TAPPINGSCREW, TAPPING
-
13BN6-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
14BN6-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
1590464-28003-00 CLAMPCLAMP
-
163GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1790430-10148-00 GASKETGASKET
-
185VX-85720-01-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
195VY-8A8E0-00-00 ...O-RING...O-RING
-
2095022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
21BN6-8591A-10-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
22BN6-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
2390110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
242C0-81673-01-00 ROTORROTOR
-
2590105-08113-00 BOLT, FLANGEBOLT, FLANGE
-
2690201-08054-00 WASHER, PLATEWASHER, PLATE
-
275VY-85896-01-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
284D9-81168-00-00 ...O-RING...O-RING
-
2990110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
302CR-85899-10-00 SENSOR, GEAR POSITIONSENSOR, GEAR POSITION
-
3193210-17008-00 O-RINGO-RING
-
3290149-05037-00 SCREWSCREW
