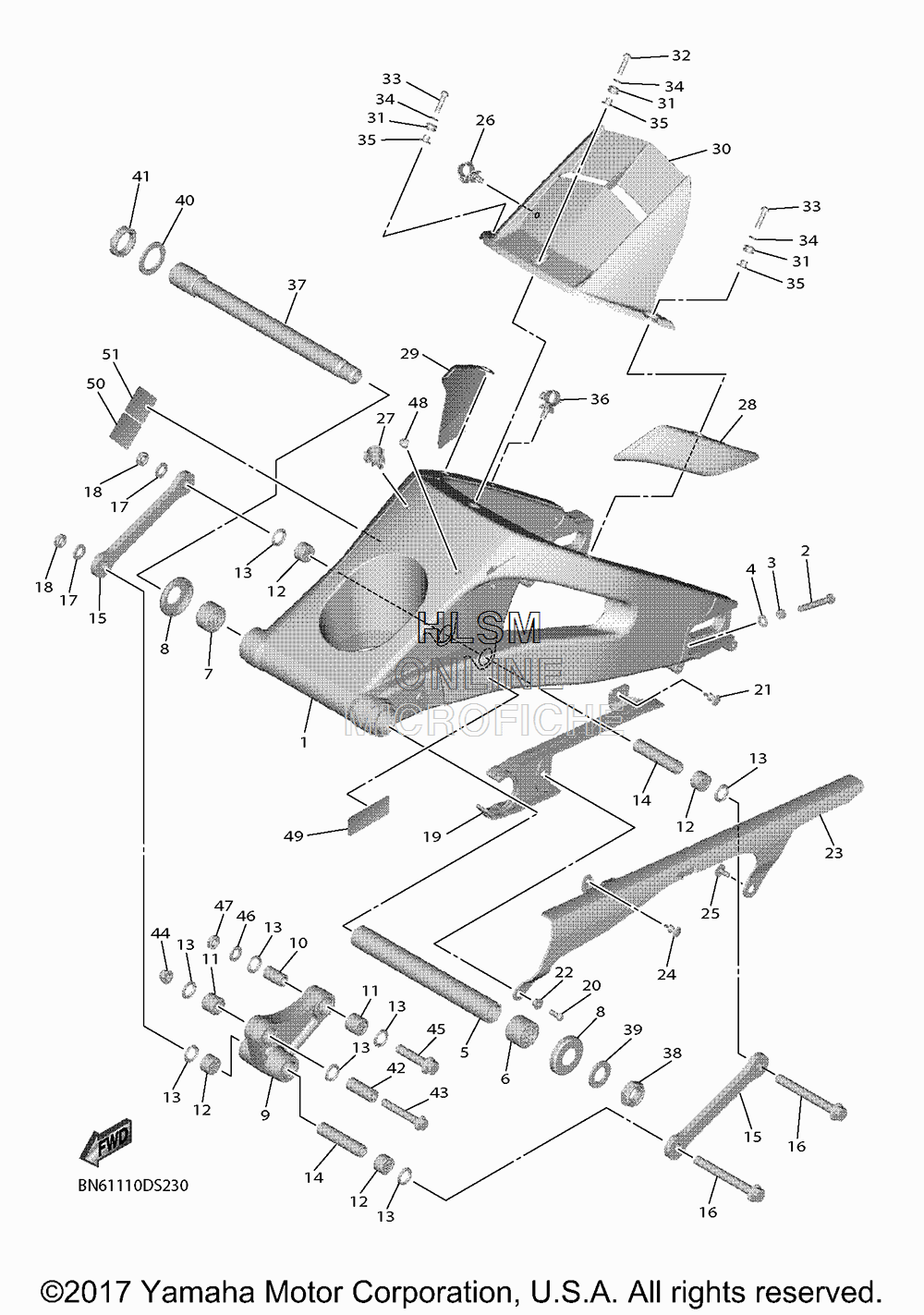

SUSPENSION - REAR ARM для Yamaha YZFR6 - 2018 года выпуска
-
№АртикулНазвание
-
1BN6-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
290101-08013-00 BOLTBOLT
-
395302-08600-00 NUT, HEXAGONNUT, HEXAGON
-
490201-08057-00 WASHER, PLATEWASHER, PLATE
-
52C0-22184-00-00 BUSHBUSH
-
693317-330A0-00 BEARINGBEARING
-
793317-330A1-00 BEARINGBEARING
-
82C0-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
92C0-2217A-00-00 ARM, RELAYARM, RELAY
-
1090387-127W0-00 COLLARCOLLAR
-
1193315-31759-00 BEARINGBEARING
-
1293315-31758-00 BEARINGBEARING
-
1393109-17071-00 OIL SEALOIL SEAL
-
1490387-126Y1-00 COLLARCOLLAR
-
152C0-2217M-00-00 ARM 1ARM 1
-
1690105-12081-00 BOLT, FLANGEBOLT, FLANGE
-
1792902-12600-00 WASHER, PLATEWASHER, PLATE
-
1890185-12011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
192C0-22151-00-00 SEAL, GUARDSEAL, GUARD
-
2092012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2190269-07008-00 RIVETRIVET
-
2290387-062X0-00 COLLARCOLLAR
-
232C0-22311-00-00 CASE, CHAINCASE, CHAIN
-
2490269-07007-00 RIVETRIVET
-
2590110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2690464-16012-00 CLAMPCLAMP
-
2790464-16011-00 CLAMPCLAMP
-
282C0-228A0-00-00 COVER ASSY 1COVER ASSY 1
-
292C0-228B0-00-00 COVER ASSY 2COVER ASSY 2
-
302C0-21650-10-00 REAR FENDER COMP.REAR FENDER COMP.
-
3190480-11006-00 GROMMETGROMMET
-
3292014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3392014-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3490201-06016-00 WASHER, PLATEWASHER, PLATE
-
3590387-06078-00 COLLARCOLLAR
-
3690464-16012-00 CLAMPCLAMP
-
372C0-22141-10-00 SHAFT, PIVOTSHAFT, PIVOT
-
3890185-22009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3990201-22014-00 WASHER, PLATEWASHER, PLATE
-
4090201-33014-00 WASHER, PLATEWASHER, PLATE
-
412C0-22252-00-00 NUTNUT
-
4290387-1012B-00 COLLARCOLLAR
-
4390105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
4495602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
4590105-12082-00 BOLT, FLANGEBOLT, FLANGE
-
4692902-12600-00 WASHER, PLATEWASHER, PLATE
-
4790185-12011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4890338-06018-00 PLUGPLUG
-
492CR-21668-00-00 LABEL, TIRELABEL, TIRE
-
5013S-21684-10-00 PLATE, ROUTING (CALIF ONLY)PLATE, ROUTING (CALIF ONLY)
-
5113S-21686-10-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
