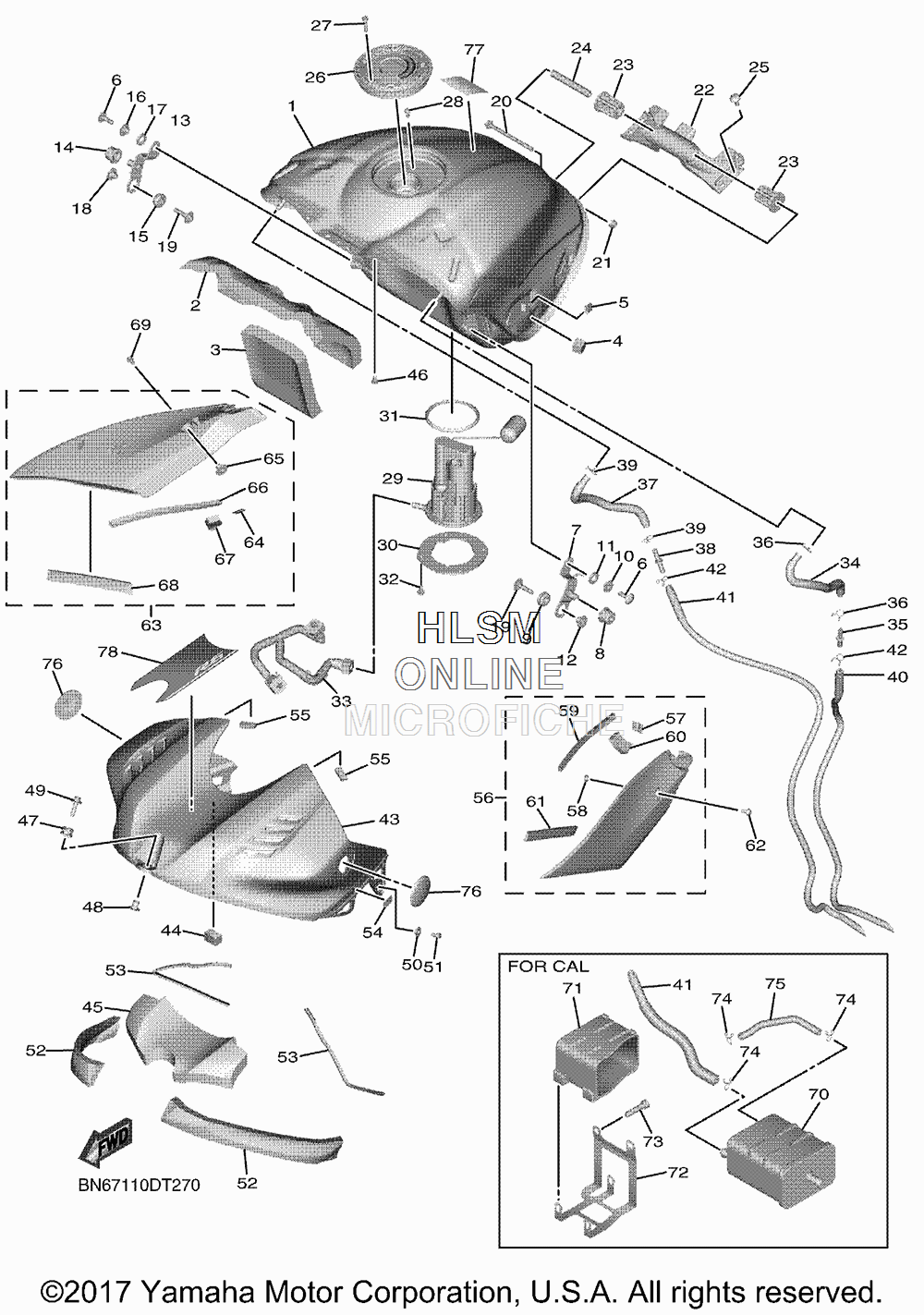

FUEL TANK для Yamaha YZFR6 - 2018 года выпуска
-
№АртикулНазвание
-
1BN6-YK241-00-P0 FUEL TANK COMP. (DPBMC - DEEP PURPLISH BLUE)FUEL TANK COMP. (DPBMC - DEEP PURPLISH BLUE)
-
1BN6-24110-00-P2 FUEL TANK COMP. (BWP1 - BLUISH WHITE)FUEL TANK COMP. (BWP1 - BLUISH WHITE)
-
1BN6-24110-00-P3 FUEL TANK COMP. (MNM3 - MAT GRAY)FUEL TANK COMP. (MNM3 - MAT GRAY)
-
2BN6-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
390520-15014-00 DAMPER, PLATEDAMPER, PLATE
-
414B-2836U-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
55PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
690111-06137-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
7BN6-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
85VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
990480-16278-00 GROMMETGROMMET
-
1090387-06171-00 COLLARCOLLAR
-
11BN6-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1290387-066Y6-00 COLLARCOLLAR
-
13BN6-24191-10-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
145VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1590480-16278-00 GROMMETGROMMET
-
1690387-06171-00 COLLARCOLLAR
-
17BN6-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1890387-066Y6-00 COLLARCOLLAR
-
1990119-06262-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2095812-06090-00 BOLT, FLANGEBOLT, FLANGE
-
2195702-06500-00 NUT, FLANGENUT, FLANGE
-
22BN6-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
235SL-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
2490387-06055-00 COLLARCOLLAR
-
2590111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2639P-24602-00-00 CAP ASSYCAP ASSY
-
2790110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2891312-05010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
29BN6-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
302CR-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
311RC-24486-00-00 O-RINGO-RING
-
3290119-05015-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3313S-13971-01-00 PIPE, FUEL 1PIPE, FUEL 1
-
34BN6-24313-00-00 PIPE 3PIPE 3
-
354XY-14568-00-00 JOINTJOINT
-
3690467-09006-00 CLIPCLIP
-
37BN6-24313-10-00 PIPE 3PIPE 3
-
384XY-14568-00-00 JOINTJOINT
-
3990467-09006-00 CLIPCLIP
-
40BN6-24314-00-00 PIPE 4PIPE 4
-
41BN6-24317-00-00 PIPE 7 (EXCEPT CALIF)PIPE 7 (EXCEPT CALIF)
-
41BN6-24317-10-00 PIPE 7 (CALIF ONLY)PIPE 7 (CALIF ONLY)
-
4290467-09006-00 CLIPCLIP
-
43BN6-2171A-00-P0 COVER, TOP (DPBMC - DEEP PURPLISH BLUE)COVER, TOP (DPBMC - DEEP PURPLISH BLUE)
-
43BN6-2171A-00-P2 COVER, TOP (BWP1 - BLUISH WHITE)COVER, TOP (BWP1 - BLUISH WHITE)
-
43BN6-2171A-00-P3 COVER, TOP (MNM3 - MAT GRAY)COVER, TOP (MNM3 - MAT GRAY)
-
4490520-08006-00 DAMPER, PLATEDAMPER, PLATE
-
45BN6-12232-00-00 DAMPERDAMPER
-
4697702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
4790480-12023-00 GROMMETGROMMET
-
4890387-06203-00 COLLARCOLLAR
-
4990110-06233-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5090387-05058-00 COLLARCOLLAR
-
5197012-05010-00 BOLTBOLT
-
522S3-2414N-00-00 DAMPER, PLATE 4DAMPER, PLATE 4
-
535PW-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
545SL-21268-00-00 SEALSEAL
-
5590520-05024-00 DAMPER, PLATEDAMPER, PLATE
-
56BN6-24106-00-00 TANK SIDE COVER ASSY 1TANK SIDE COVER ASSY 1
-
575SL-21268-00-00 ...SEAL...SEAL
-
5890387-05035-00 ...COLLAR...COLLAR
-
597TA-22875-00-00 ...SEAL 3...SEAL 3
-
607CF-22869-00-00 ...MOLE...MOLE
-
6190520-05023-00 ...DAMPER, PLATE...DAMPER, PLATE
-
6290111-05048-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
63BN6-24108-00-00 TANK SIDE COVER ASSY 2TANK SIDE COVER ASSY 2
-
645SL-21268-00-00 ...SEAL...SEAL
-
6590387-05035-00 ...COLLAR...COLLAR
-
667TA-22875-00-00 ...SEAL 3...SEAL 3
-
677CF-22869-00-00 ...MOLE...MOLE
-
6890520-05023-00 ...DAMPER, PLATE...DAMPER, PLATE
-
6990111-05048-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
702CR-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
712CR-24182-00-00 DAMPER, LOCATING 2 (CALIF ONLY)DAMPER, LOCATING 2 (CALIF ONLY)
-
72BN6-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)BRACKET, CANISTOR (CALIF ONLY)
-
7390110-06187-00 BOLT, HEXAGON SOCKET HEAD (CALIF ONLY)BOLT, HEXAGON SOCKET HEAD (CALIF ONLY)
-
7490467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
7590445-10059-00 HOSE (CALIF ONLY)HOSE (CALIF ONLY)
-
761RC-2413B-00-00 EMBLEMEMBLEM
-
7729P-2816R-00-00 LABEL, WARNING GENERAL INFO.LABEL, WARNING GENERAL INFO.
-
78BN6-24244-00-00 GRAPHIC, FUEL TANK 1 (DPBMC - DEEP PURPLISH BLUE)GRAPHIC, FUEL TANK 1 (DPBMC - DEEP PURPLISH BLUE)
