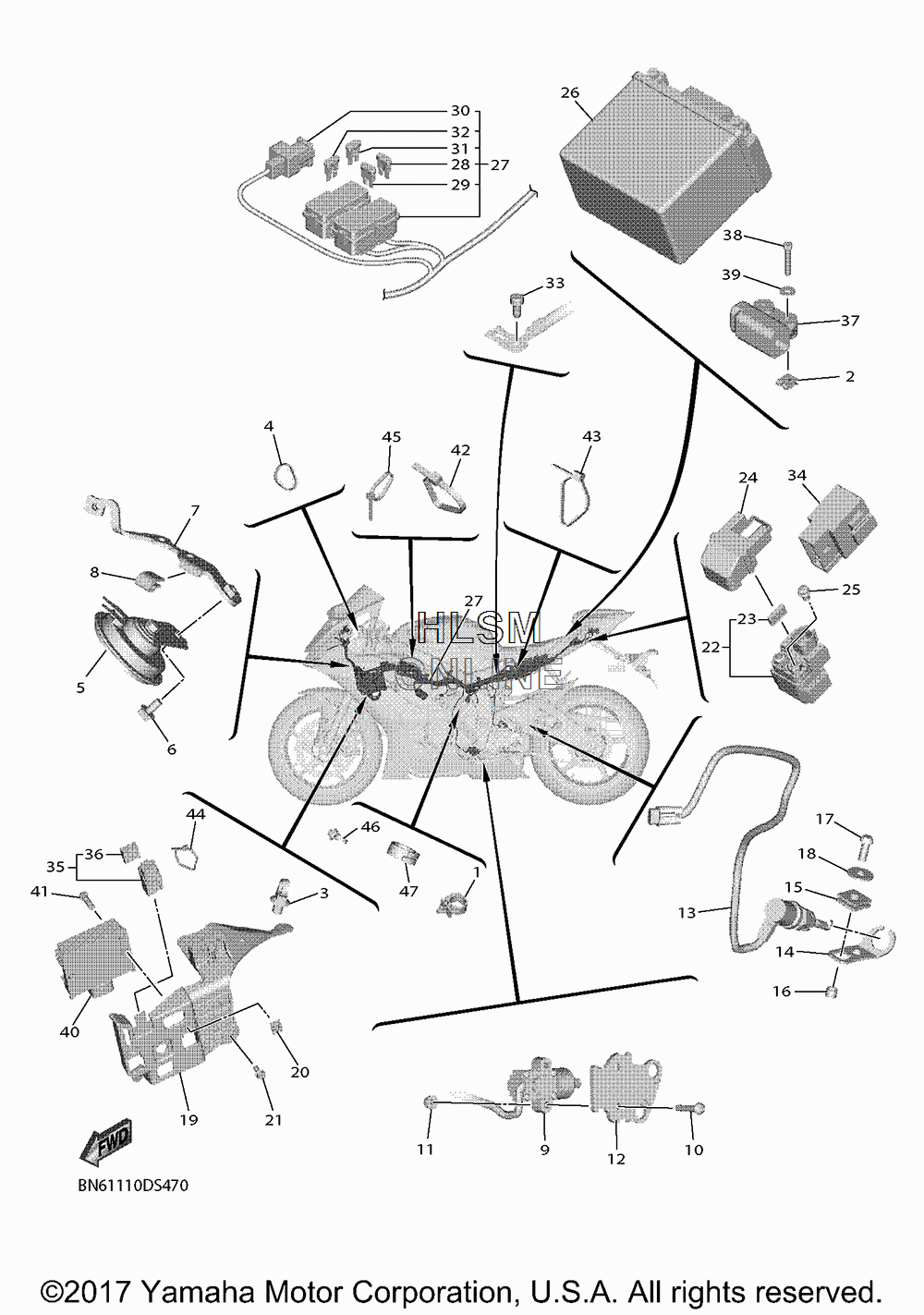

ELECTRICAL 2 для Yamaha YZFR6 - 2018 года выпуска
-
№АртикулНазвание
-
190464-17008-00 CLAMPCLAMP
-
290183-04039-00 NUT, SPRINGNUT, SPRING
-
390464-30010-00 CLAMPCLAMP
-
41UA-82591-00-00 BANDBAND
-
5B67-83371-00-00 HORNHORN
-
695D32-06012-00 BOLT, FLANGE DEEP RECESSBOLT, FLANGE DEEP RECESS
-
7BN6-23377-00-00 BRACKET, HORNBRACKET, HORN
-
85RU-2139X-00-00 DAMPERDAMPER
-
9BN6-82566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
1092012-05025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1195602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
122C0-27961-00-00 BRACKET, SENSOR 1BRACKET, SENSOR 1
-
13BN6-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
1413S-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
1590480-12607-00 GROMMETGROMMET
-
1690387-06023-00 COLLARCOLLAR
-
1792017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1890201-06380-00 WASHER PLAINWASHER PLAIN
-
19BN6-2836H-00-00 BRACKET 5BRACKET 5
-
2090183-06069-00 NUT, SPRINGNUT, SPRING
-
2195D02-06014-00 BOLT, FLANGE DEEP RECESSBOLT, FLANGE DEEP RECESS
-
222CR-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
231AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
245SL-82119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
2595022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
265TJ-82100-01-00 BATTERY ASSY (YTZ7S(F))BATTERY ASSY (YTZ7S(F))
-
27BN6-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
285JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
295JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
305JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
315JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
325JJ-82151-80-00 ...FUSE (2A-BL)...FUSE (2A-BL)
-
3391380-06012-00 BOLTBOLT
-
345VK-81950-40-00 RELAY ASSY (5VK-40)RELAY ASSY (5VK-40)
-
351TP-81950-00-00 RELAY ASSY (1TP-00)RELAY ASSY (1TP-00)
-
365EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
375PS-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
3891317-04025-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
3990201-042E0-00 WASHER, PLATEWASHER, PLATE
-
40BN6-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
4192012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
421UA-82591-00-00 BANDBAND
-
431UA-82591-00-00 BANDBAND
-
441UA-82591-00-00 BANDBAND
-
4590464-13077-00 CLAMPCLAMP
-
4690464-30011-00 CLAMPCLAMP
-
4790464-13227-00 CLAMPCLAMP
