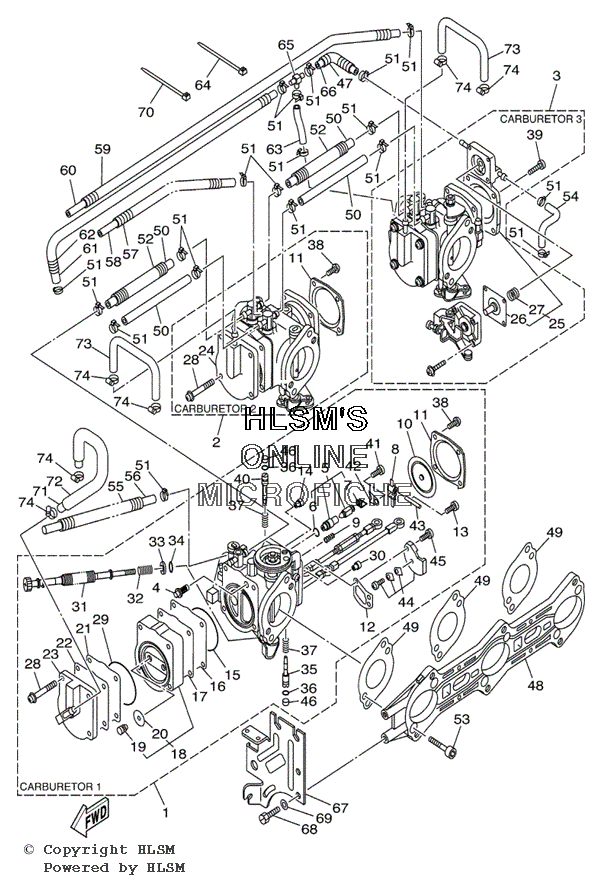

CARBURETOR для Yamaha GP 1200R - 2000 года выпуска
-
№АртикулНазвание
-
167X-14301-00-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
267X-14302-00-00 CARBURETOR ASSY 2CARBURETOR ASSY 2
-
367X-14303-00-00 CARBURETOR ASSY 3CARBURETOR ASSY 3
-
46R7-14569-00-00 ...STRAINER...STRAINER
-
564T-14916-00-00 ...NEEDLE...NEEDLE
-
68F2-14147-00-00 ......O-RING......O-RING
-
77EG-14159-00-00 ......CLIP......CLIP
-
86K8-14547-01-00 ...ARM, FLOAT...ARM, FLOAT
-
96R7-14253-00-00 ...SPRING...SPRING
-
106R7-14541-00-00 ...DIAPHRAGM, PUMP...DIAPHRAGM, PUMP
-
116R7-14542-00-00 ...BODY, PUMP 1 2 CARBURETOR 1...BODY, PUMP 1 2 CARBURETOR 1
-
126K8-14536-11-00 ...GASKET...GASKET
-
136K8-14503-02-00 ...SCREW...SCREW
-
143G2-1423A-74-00 ...JET, MAIN (117.5)...JET, MAIN (117.5)
-
1566E-14563-01-00 ...O-RING...O-RING
-
1666E-24471-00-00 ...DIAPHRAGM...DIAPHRAGM
-
1766E-24411-00-00 ...DIAPHRAGM...DIAPHRAGM
-
1866E-24413-01-00 ...BODY 2...BODY 2
-
1965U-24492-00-00 ......BUSH, FUEL PUMP......BUSH, FUEL PUMP
-
2066E-24362-00-00 ......VALVE, CHECK 1......VALVE, CHECK 1
-
2166E-24421-00-00 ...VALVE, CHECK...VALVE, CHECK
-
2266E-24431-00-00 ...GASKET, FUEL PUMP 1...GASKET, FUEL PUMP 1
-
2366V-24452-00-00 ...COVER (CARB 1) 1 CARBURETOR...COVER (CARB 1) 1 CARBURETOR
-
2466V-24452-10-00 ...COVER (CARB 2, 3) 2 CARBURETOR...COVER (CARB 2, 3) 2 CARBURETOR
-
2566E-14280-00-00 ...COVER, CARBURETOR 1 CARBURETOR...COVER, CARBURETOR 1 CARBURETOR
-
2666E-14170-00-00 ......DIAPHRAGM ASSY (CARB 3) 1 CARBURETOR......DIAPHRAGM ASSY (CARB 3) 1 CARBURETOR
-
2766E-14286-00-00 ......SPRING (CARB 3) 1 CARBURETOR......SPRING (CARB 3) 1 CARBURETOR
-
2890157-05M17-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2966E-14564-01-00 ...O-RING...O-RING
-
301HX-14231-19-00 ...JET, MAIN ( 95)...JET, MAIN ( 95)
-
3166V-14124-00-00 ...SCREW, CABLE ADJUSTING 1 CARBURETOR...SCREW, CABLE ADJUSTING 1 CARBURETOR
-
323KW-14932-00-00 ...SPRING, THROTTLE 2, 1 CARBURETOR...SPRING, THROTTLE 2, 1 CARBURETOR
-
33812-14235-00-00 ...WASHER, NEEDLE 1 CARBURETOR...WASHER, NEEDLE 1 CARBURETOR
-
34812-14147-00-00 ...O-RING 1 CARBURETOR...O-RING 1 CARBURETOR
-
3566V-14211-00-00 ...SCREW, PILOT ADJUSTING...SCREW, PILOT ADJUSTING
-
3693210-03119-00 ...O-RING...O-RING
-
3766V-14160-00-00 ...COIL, SPRING...COIL, SPRING
-
3897880-05010-00 ...SCREW, PAN HEAD 8 CARBURETOR 1,...SCREW, PAN HEAD 8 CARBURETOR 1,
-
3998580-05014-00 ...SCREW, PAN HEAD 4 CARBURETOR...SCREW, PAN HEAD 4 CARBURETOR
-
4066V-14946-00-00 ...PLATE, NEEDLE FITTING...PLATE, NEEDLE FITTING
-
416M6-14503-00-00 ...SCREW...SCREW
-
426K8-14527-11-00 ...PLATE...PLATE
-
43439-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
4466E-24412-00-00 ...BODY 1...BODY 1
-
456K8-14523-11-00 ...SCREW, STOP...SCREW, STOP
-
4666V-1432A-00-00 ...PLUG...PLUG
-
4790447-07003-00 HOSE, WITH SPRINGHOSE, WITH SPRING
-
4866V-14146-00-00 PLATEPLATE
-
4966E-14398-00-00 GASKETGASKET
-
5090445-11M73-00 HOSEHOSE
-
5135H-14139-00-00 CLIP, PIPE 1CLIP, PIPE 1
-
5290446-17MG6-00 HOSEHOSE
-
5366E-14162-00-00 BOLT, HOLDINGBOLT, HOLDING
-
5490445-07004-00 HOSEHOSE
-
5590446-10MG0-00 HOSEHOSE
-
5690446-07MG1-00 HOSEHOSE
-
5790446-10MG2-00 HOSEHOSE
-
5890446-07MG3-00 HOSEHOSE
-
5990446-10MG4-00 HOSEHOSE
-
6090446-07MG5-00 HOSEHOSE
-
6190445-07005-00 HOSEHOSE
-
6290447-07004-00 HOSE, WITH SPRINGHOSE, WITH SPRING
-
6390445-07003-00 HOSEHOSE
-
644KM-14137-00-00 CLIPCLIP
-
6566E-14251-00-00 NIPPLENIPPLE
-
6666V-14294-00-00 HOSEHOSE
-
6766V-14527-00-00 PLATEPLATE
-
6897095-06012-00 BOLTBOLT
-
6992995-06600-00 WASHERWASHER
-
7090465-13M60-00 CLAMPCLAMP
-
7166V-24312-00-00 PIPE 2PIPE 2
-
7290446-14MA9-00 HOSEHOSE
-
7366V-24313-00-00 PIPE 3PIPE 3
-
7490460-11M17-00 CLAMP, HOSECLAMP, HOSE
