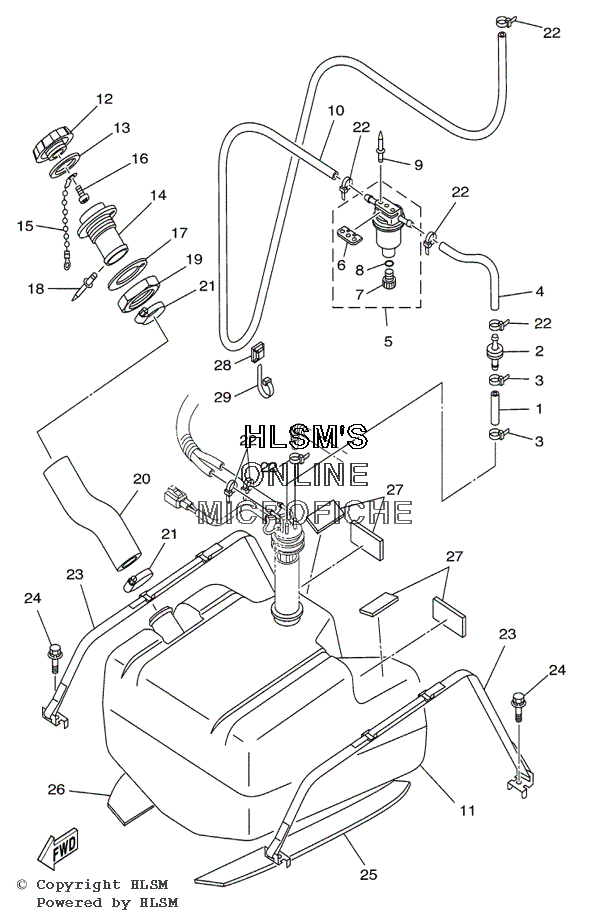

FUEL TANK для Yamaha GP 1200R - 2000 года выпуска
-
№АртикулНазвание
-
1GP7-U785H-00-00 HOSE, AIR VENT 3 (YMUS)HOSE, AIR VENT 3 (YMUS)
-
2EU0-67767-31-00 CHECK VALVECHECK VALVE
-
390465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
4GJ3-U7856-10-00 HOSE, AIR VENT 3 (YMUS)HOSE, AIR VENT 3 (YMUS)
-
5EW2-62140-00-00 FILTER, VENT ASSYFILTER, VENT ASSY
-
6EW2-62142-00-00 ...PLATE, FILTER...PLATE, FILTER
-
770R-24543-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
870R-24489-00-00 ...O-RING...O-RING
-
990267-489U2-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
10GP7-U785G-00-00 HOSE, AIR VENT (YMUS)HOSE, AIR VENT (YMUS)
-
11F0X-U7711-00-00 TANK, FUEL (YMUS)TANK, FUEL (YMUS)
-
12GP7-U7831-00-00 CAP, FUEL FILTER (YMUS)CAP, FUEL FILTER (YMUS)
-
13GP7-U7832-00-00 PACKING 1 (YMUS)PACKING 1 (YMUS)
-
14GP7-U7833-00-00 SOCKET (YMUS)SOCKET (YMUS)
-
15GP7-U7835-00-00 CHAIN BALL (YMUS)CHAIN BALL (YMUS)
-
1690169-049U1-00 TAPPING SCREW (YMUS)TAPPING SCREW (YMUS)
-
17GP7-U7834-00-00 PACKING FUEL FILLER (YMUS)PACKING FUEL FILLER (YMUS)
-
1890267-329UR-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
19GP7-U783F-00-00 NUT, FUEL FILLER (YMUS)NUT, FUEL FILLER (YMUS)
-
20F0X-U7844-00-00 HOSE (YMUS)HOSE (YMUS)
-
2190601-155U4-00 BAND, HOSE 5 (YMUS)BAND, HOSE 5 (YMUS)
-
2290465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
23F0X-67743-00-00 BELT, TANK 1BELT, TANK 1
-
2490119-089U7-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
25F0X-U759B-00-00 MAT 1 (YMUS)MAT 1 (YMUS)
-
26F0X-U759C-00-00 MAT 2 (YMUS)MAT 2 (YMUS)
-
27GJ1-U759C-00-00 MAT 2 (YMUS)MAT 2 (YMUS)
-
2890600-900U6-00 BASE, CLAMP (YMUS)BASE, CLAMP (YMUS)
-
2990464-40825-00 CLAMP (YMUS)CLAMP (YMUS)
