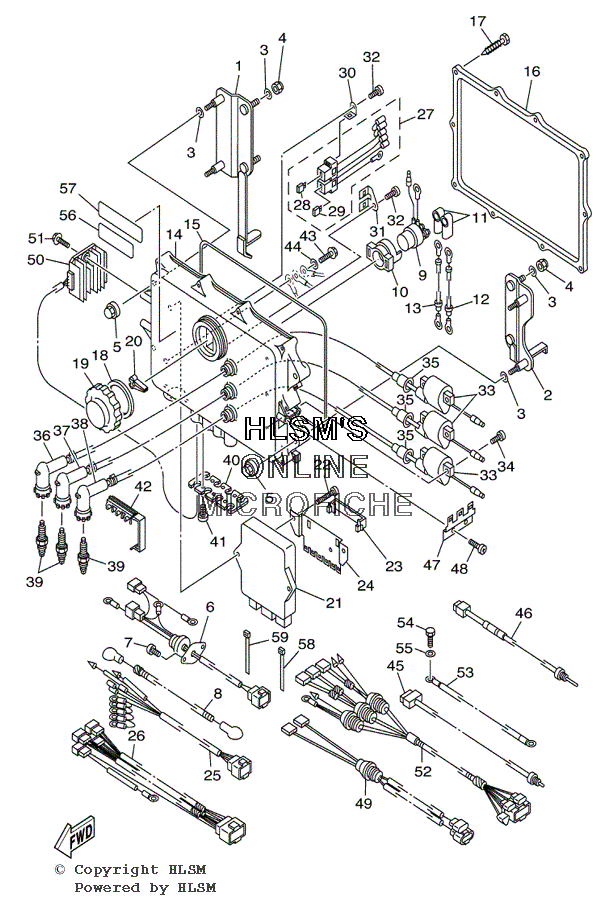

ELECTRICAL 1 для Yamaha GP 1200R - 2000 года выпуска
-
№АртикулНазвание
-
1F0X-6815D-00-00 BRACKET, ELECTRIC BOXBRACKET, ELECTRIC BOX
-
2F0X-6815E-00-00 BRACKET, ELECTRIC BOX 2BRACKET, ELECTRIC BOX 2
-
39299R-08200-00 WASHER, M8 FLAT (YMUS)WASHER, M8 FLAT (YMUS)
-
49572R-08300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
590179-08978-00 NUTNUT
-
666V-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
797780-60425-00 SCREW, TAPPINGSCREW, TAPPING
-
867X-82117-00-00 WIRE, LEADWIRE, LEAD
-
96G1-81941-10-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
106M6-81952-01-00 HOLDER, RELAYHOLDER, RELAY
-
1166V-82119-00-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
1267X-82117-10-00 WIRE, LEADWIRE, LEAD
-
1367X-82117-20-00 WIRE, LEADWIRE, LEAD
-
1466V-8552A-00-00 HOUSINGHOUSING
-
1566V-81921-00-00 GASKET, TERMINALGASKET, TERMINAL
-
1666V-8552E-00-00 COVER, CASECOVER, CASE
-
1797780-60430-00 SCREW, TAPPINGSCREW, TAPPING
-
1866V-81844-00-00 GASKETGASKET
-
1966V-8132W-00-00 CAPCAP
-
2067F-2812A-00-00 PULLER, FUSEPULLER, FUSE
-
2166V-85540-00-00 C.D.IUNIT ASSYC.D.IUNIT ASSY
-
2297780-60530-00 SCREW, TAPPINGSCREW, TAPPING
-
2366V-83919-00-00 CLAMP, HARNESSCLAMP, HARNESS
-
2466V-83955-00-00 BRACKET 1BRACKET 1
-
2566V-85515-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
2666V-83553-00-00 WIRE, LEADWIRE, LEAD
-
2766V-82150-00-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
2867F-82151-00-00 ...FUSE (20A)...FUSE (20A)
-
2966V-82151-00-00 ...FUSE...FUSE
-
3066V-82171-00-00 STAY, FUSE BOXSTAY, FUSE BOX
-
3166V-82153-00-00 STAY, FUSE HOLDERSTAY, FUSE HOLDER
-
3297780-60516-00 SCREW, TAPPINGSCREW, TAPPING
-
3366V-85570-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
3497780-60525-00 SCREW, TAPPINGSCREW, TAPPING
-
3566V-82355-00-00 GROMMETGROMMET
-
3666V-82340-00-00 HIGH TENSION CORD ASSY 1HIGH TENSION CORD ASSY 1
-
3766V-82340-10-00 HIGH TENSION CORD ASSY 1HIGH TENSION CORD ASSY 1
-
3867X-82340-20-00 HIGH TENSION CORD ASSY 1HIGH TENSION CORD ASSY 1
-
3994702-00396-00 PLUG, SPARK (NGK BR8ES-11)PLUG, SPARK (NGK BR8ES-11)
-
4066V-85525-00-00 COVERCOVER
-
4197780-60425-00 SCREW, TAPPINGSCREW, TAPPING
-
4265U-81317-10-00 CLAMP, CORDCLAMP, CORD
-
4397095-06012-00 BOLTBOLT
-
4492995-06600-00 WASHERWASHER
-
4566V-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
4666V-85881-00-00 SENSOR, EXT, TEMPSENSOR, EXT, TEMP
-
4766V-85542-00-00 BRACKETBRACKET
-
4897780-60516-00 SCREW, TAPPINGSCREW, TAPPING
-
4966V-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
5066V-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
5197780-60425-00 SCREW, TAPPINGSCREW, TAPPING
-
5267X-82553-00-00 EXTENSION, WIRE LEADEXTENSION, WIRE LEAD
-
5366V-82127-00-00 WIRE, LEAD 2WIRE, LEAD 2
-
5497013-06016-00 BOLTBOLT
-
5592903-06600-00 WASHER, PLATEWASHER, PLATE
-
566R7-83623-40-00 MARKMARK
-
5766V-2179X-01-00 PLATE, EPAPLATE, EPA
-
5890465-13M36-00 CLAMPCLAMP
-
5990465-11M52-00 CLAMPCLAMP
