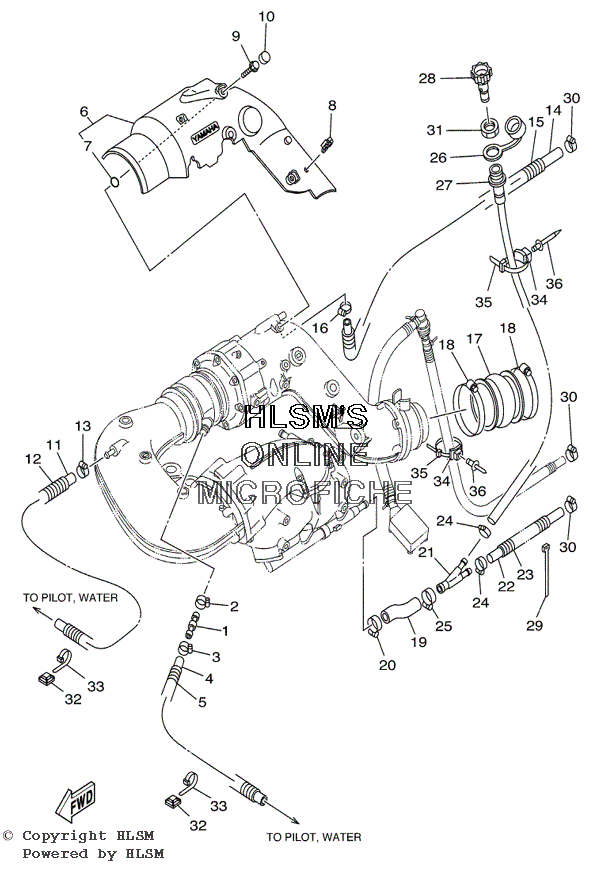

EXHAUST - HOSES для Yamaha GP 1200R - 2000 года выпуска
-
№АртикулНазвание
-
166E-51142-00-00 CONNECTIONCONNECTION
-
290450-18M09-00 HOSE, CLAMP ASSYHOSE, CLAMP ASSY
-
390450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
466V-12589-00-00 HOSE 6HOSE 6
-
590446-20M70-00 HOSEHOSE
-
667X-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
790430-09M10-00 ...GASKET...GASKET
-
890464-07M56-00 CLAMPCLAMP
-
990109-06M99-00 BOLTBOLT
-
1066V-15779-00-00 COVERCOVER
-
1167X-12589-00-00 HOSE 6HOSE 6
-
1290446-20M65-00 HOSEHOSE
-
1390450-18M09-00 HOSE, CLAMP ASSYHOSE, CLAMP ASSY
-
1490445-21002-00 HOSE (L900)HOSE (L900)
-
1590446-27M95-00 HOSEHOSE
-
1690450-22M14-00 HOSE, CLAMP ASSYHOSE, CLAMP ASSY
-
1766V-14752-00-00 PIPE, OUTLETPIPE, OUTLET
-
1890450-99M02-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1966V-12579-00-00 HOSE 4HOSE 4
-
2090450-22M14-00 HOSE, CLAMP ASSYHOSE, CLAMP ASSY
-
2166V-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
2290445-18M02-00 HOSE (L700)HOSE (L700)
-
2390446-24M52-00 HOSEHOSE
-
2490450-18M09-00 HOSE, CLAMP ASSYHOSE, CLAMP ASSY
-
2590450-22M14-00 HOSE, CLAMP ASSYHOSE, CLAMP ASSY
-
26682-84385-01-00 CAP, 1CAP, 1
-
2764T-12580-00-00 JOINT ASSYJOINT ASSY
-
2867X-12590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
2990601-200U2-00 BAND (YMUS)BAND (YMUS)
-
3090601-118UF-00 BAND, HOSE 8 (YMUS)BAND, HOSE 8 (YMUS)
-
31EU0-61652-00-00 NUTNUT
-
3290600-900U6-00 BASE, CLAMP (YMUS)BASE, CLAMP (YMUS)
-
3390464-40825-00 CLAMP (YMUS)CLAMP (YMUS)
-
3490600-917U4-00 CLAMP COMP (YMUS)CLAMP COMP (YMUS)
-
3590601-200U2-00 BAND (YMUS)BAND (YMUS)
-
3690267-489U7-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
