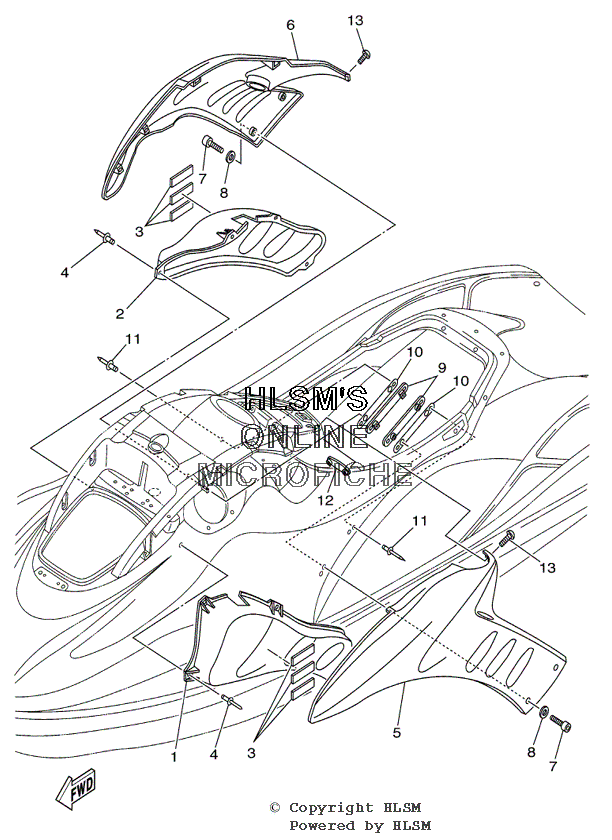

SIDE COVERS для Yamaha GP 1200R - 2000 года выпуска
-
№АртикулНазвание
-
1F0X-62187-00-00 BOX, INDICATION 1BOX, INDICATION 1
-
2F0X-62188-00-00 BOX, INDICATION 2BOX, INDICATION 2
-
3F0X-6351C-00-00 MAT, SIDE 1MAT, SIDE 1
-
490267-48806-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
5F0X-U377B-00-P0 COVER, SIDE 1 (YMUS)COVER, SIDE 1 (YMUS)
-
6F0X-U377C-00-P0 COVER, SIDE 2 (YMUS)COVER, SIDE 2 (YMUS)
-
790110-06008-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
89299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
9F0X-6377M-00-00 BRKT., COVER SIDE 1BRKT., COVER SIDE 1
-
10F0X-U3635-00-00 TAPE, FITTING (YMUS)TAPE, FITTING (YMUS)
-
1190267-48806-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
12F0X-6377P-00-00 BRKT., COVER SIDE 3BRKT., COVER SIDE 3
-
1390111-05001-00 BOLTBOLT
