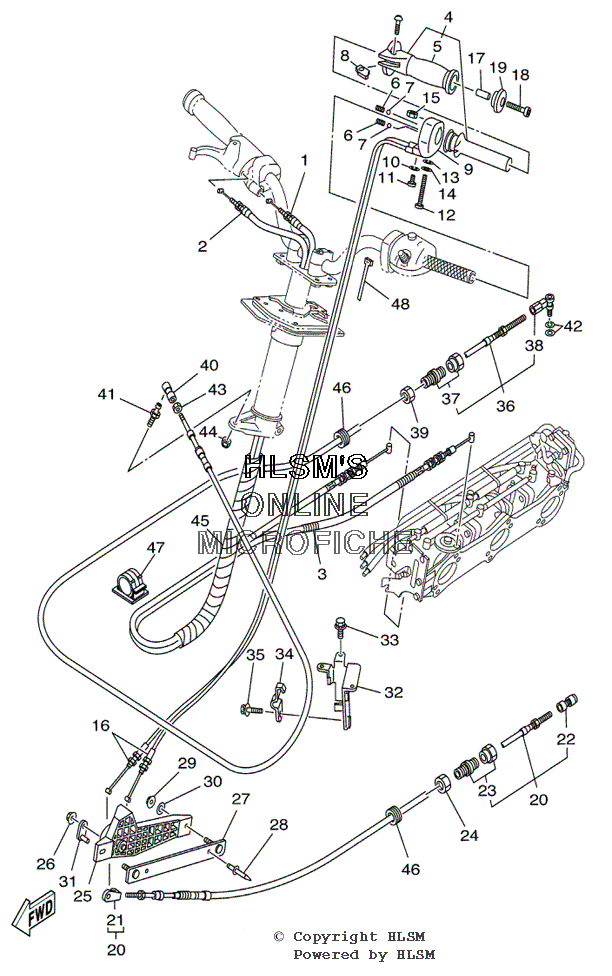

CONTROL CABLES для Yamaha GP 1200R - 2000 года выпуска
-
№АртикулНазвание
-
167X-67242-00-00 CABLE, CHOKECABLE, CHOKE
-
266V-67252-00-00 CABLE, THROTTLECABLE, THROTTLE
-
390446-10ME3-00 HOSEHOSE
-
4GP7-U157A-00-00 GRIP HANDLE ASSY(YMUS)GRIP HANDLE ASSY(YMUS)
-
5GP7-U155C-00-00 ...GRIP, HANDLE (YMUS)...GRIP, HANDLE (YMUS)
-
6GP7-U152P-00-00 SPRING (YMUS)SPRING (YMUS)
-
7GP7-U152R-00-00 BALL (YMUS)BALL (YMUS)
-
8GP7-U151M-00-00 LEVER ASSY (YMUS)LEVER ASSY (YMUS)
-
9GP7-U152M-00-00 HOUSING ASSY (YMUS)HOUSING ASSY (YMUS)
-
1092990-04600-00 WASHER, PLATEWASHER, PLATE
-
1198980-04010-00 SCREW, BINDSCREW, BIND
-
1297880-06065-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1392990-06600-00 WASHER, PLATEWASHER, PLATE
-
149299R-06100-00 WASHER (YMUS)WASHER (YMUS)
-
15GH1-U143B-00-00 NUT, SPECIAL (YMUS)NUT, SPECIAL (YMUS)
-
16F0D-U153D-01-00 CABLE, NOZZLE CONTROL 2 (YMUS)CABLE, NOZZLE CONTROL 2 (YMUS)
-
1790387-05800-00 COLLAR (YMUS)COLLAR (YMUS)
-
1890110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
19GP7-U155F-00-00 GRIP, END (YMUS)GRIP, END (YMUS)
-
20F0X-U153E-00-00 CABLE, NOZZLE CONTROL 3 (YMUS)CABLE, NOZZLE CONTROL 3 (YMUS)
-
21GH1-U046C-00-00 ...END, CABLE (YMUS)...END, CABLE (YMUS)
-
22EU0-U1461-30-00 ...JOINT, BALL (YMUS)...JOINT, BALL (YMUS)
-
23EU0-67267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
24EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
25F0D-U153J-00-00 REMOCON, NOZZLE 2 (YMUS)REMOCON, NOZZLE 2 (YMUS)
-
269572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
27F0X-U4958-00-00 BASE, REMOCON(YMUS)BASE, REMOCON(YMUS)
-
2890267-489U6-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
299572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
309299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
31F0D-U152C-00-00 PIN (YMUS)PIN (YMUS)
-
32F0X-61467-00-00 BRACKET, STOPPER CABLEBRACKET, STOPPER CABLE
-
3390119-06827-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
34F0X-61468-00-00 STOPPER, CABLESTOPPER, CABLE
-
3590119-069UH-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
36F0X-U1481-00-00 CABLE, STEERING (YMUS)CABLE, STEERING (YMUS)
-
37GK5-67267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
38GP8-U1461-T0-00 ...STUD, JOINT BALL (YMUS)...STUD, JOINT BALL (YMUS)
-
39EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
40GK5-U146F-00-00 SHAFT, JOINT BALL (YMUS)SHAFT, JOINT BALL (YMUS)
-
41EU0-U1461-01-00 STOOD, JOINT BALL (YMUS)STOOD, JOINT BALL (YMUS)
-
4290201-06906-00 WASHER, PLATEWASHER, PLATE
-
439538R-06700-00 NUT (YMUS)NUT (YMUS)
-
449572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
4590448-25800-00 HOSE, WITH UNION (YMUS)HOSE, WITH UNION (YMUS)
-
4690480-279U1-00 GROMMET (YMUS)GROMMET (YMUS)
-
4790600-925U9-00 CLAMP (YMUS)CLAMP (YMUS)
-
4890601-200U2-00 BAND (YMUS)BAND (YMUS)
