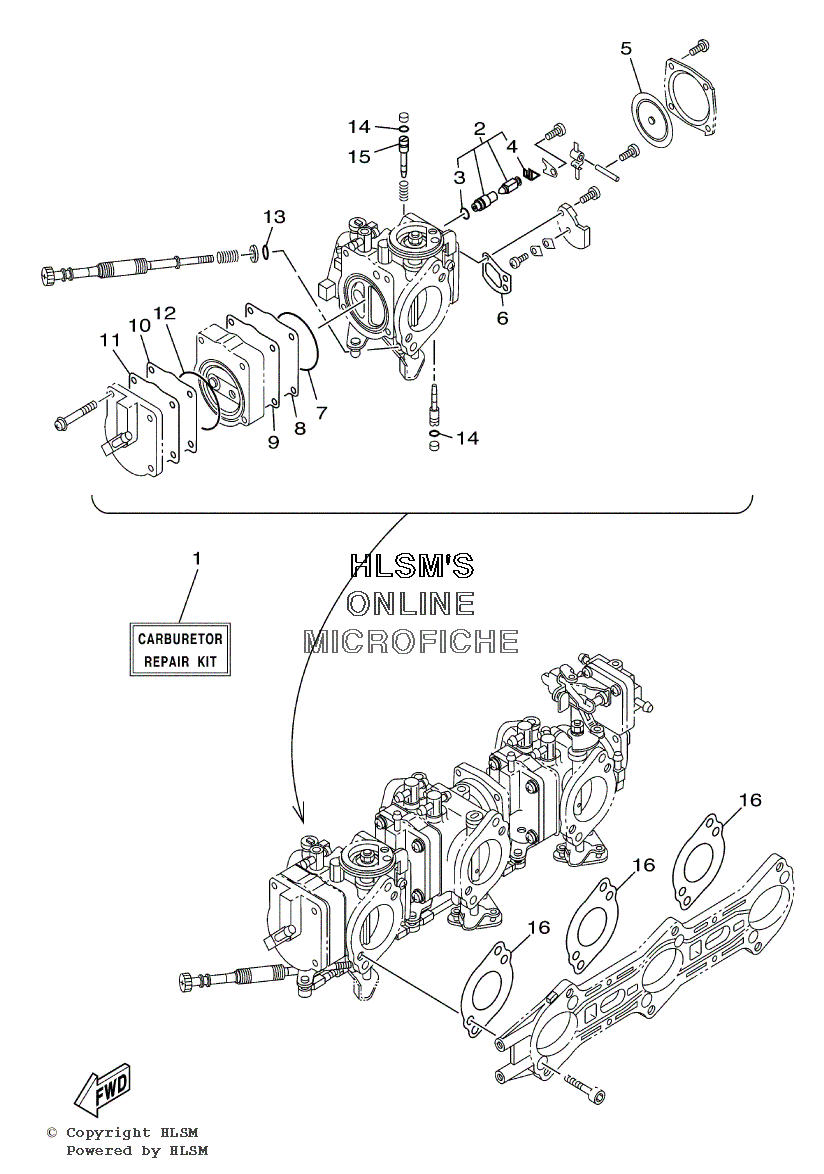

CARBURETOR REPAIR KIT для Yamaha XL 1200 Z - 2001 года выпуска
-
№АртикулНазвание
-
166V-W0093-01-00 CARBURETOR REPAIR KITCARBURETOR REPAIR KIT
-
264T-14916-00-00 ...NEEDLE...NEEDLE
-
38F2-14147-00-00 ......O-RING......O-RING
-
47EG-14159-00-00 ......CLIP......CLIP
-
56R7-14541-00-00 ...DIAPHRAGM, PUMP...DIAPHRAGM, PUMP
-
66K8-14536-11-00 ...GASKET...GASKET
-
766E-14563-01-00 ...O-RING...O-RING
-
866E-24471-00-00 ...DIAPHRAGM...DIAPHRAGM
-
966E-24411-00-00 ...DIAPHRAGM...DIAPHRAGM
-
1066E-24421-00-00 ...VALVE, CHECK...VALVE, CHECK
-
1166E-24431-00-00 ...GASKET, FUEL PUMP 1...GASKET, FUEL PUMP 1
-
1266E-14564-01-00 ...O-RING...O-RING
-
13812-14147-00-00 ...O-RING...O-RING
-
1493210-03119-00 ...O-RING...O-RING
-
1566V-14946-00-00 ...PLATE, NEEDLE FITTING...PLATE, NEEDLE FITTING
-
1666E-14398-00-00 ...GASKET...GASKET
