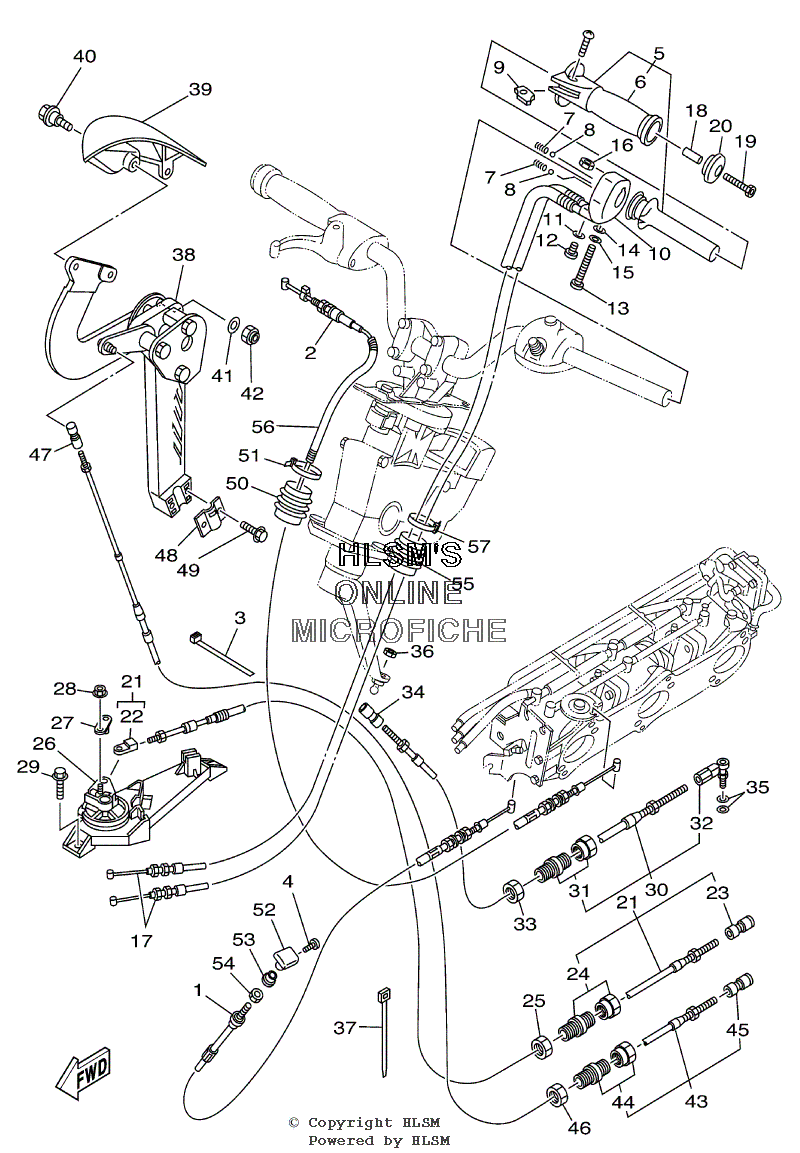

CONTROL CABLES для Yamaha XL 1200 Z - 2001 года выпуска
-
№АртикулНазвание
-
166V-67242-01-00 CABLE, CHOKECABLE, CHOKE
-
266V-67252-00-00 CABLE, THROTTLECABLE, THROTTLE
-
390465-11M10-00 CLAMPCLAMP
-
490149-03M15-00 SCREWSCREW
-
5GP7-U157A-00-00 GRIP HANDLE ASSY.GRIP HANDLE ASSY.
-
6GP7-U155C-00-00 ...GRIP, HANDLE...GRIP, HANDLE
-
7GP7-U152P-00-00 SPRINGSPRING
-
8GP7-U152R-00-00 BALLBALL
-
9GP7-U151M-00-00 LEVER ASSYLEVER ASSY
-
10GP7-U152M-00-00 HOUSING ASSYHOUSING ASSY
-
1192990-04600-00 WASHER, PLATEWASHER, PLATE
-
1298980-04010-00 SCREW, BINDSCREW, BIND
-
1397880-06065-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492990-06600-00 WASHER, PLATEWASHER, PLATE
-
159299R-06100-00 WASHERWASHER
-
16GH1-U143B-00-00 NUT, SPECIALNUT, SPECIAL
-
17F0D-U153D-01-00 CABLE, NOZZLE CONTROL 2CABLE, NOZZLE CONTROL 2
-
1890387-05800-00 COLLARCOLLAR
-
1990110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
20GP7-U155F-00-00 GRIP, ENDGRIP, END
-
21F0D-U153E-00-00 CABLE, NOZZLE CONTROL 3CABLE, NOZZLE CONTROL 3
-
22GH1-U046C-00-00 ...END, CABLE...END, CABLE
-
23EU0-U1461-30-00 ...SHAFT, JOINT BALL...SHAFT, JOINT BALL
-
24EU0-67267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
25EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
26F0D-U153J-00-00 REMOCON, NOZZLE 2REMOCON, NOZZLE 2
-
27F0D-U152C-00-00 PINPIN
-
289572R-06300-00 NUT, FLANGENUT, FLANGE
-
2990119-069UJ-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
30F0D-U1481-00-00 CABLE, STEERINGCABLE, STEERING
-
31GK5-67267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
32GP8-U1461-T0-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
33EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
34GK5-U146F-00-00 SHAFT, JOINT BALLSHAFT, JOINT BALL
-
3590201-06906-00 WASHER, PLATEWASHER, PLATE
-
369538R-06700-00 NUTNUT
-
3790601-200U1-00 BANDBAND
-
38F0V-6134A-00-00 REMOCON. LEVER ASSY.REMOCON. LEVER ASSY.
-
39F0V-U2714-00-00 GRIPGRIP
-
4090109-06803-00 BOLTBOLT
-
419299R-06200-00 WASHERWASHER
-
429572R-06300-00 NUT, FLANGENUT, FLANGE
-
43F0D-U149C-00-00 CABLE, REVERSECABLE, REVERSE
-
44EU0-67267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
45EU0-U1461-30-00 ...SHAFT, JOINT BALL...SHAFT, JOINT BALL
-
46EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
47EU0-U1461-30-00 SHAFT, JOINT BALLSHAFT, JOINT BALL
-
48GH1-61468-01-00 STOPPER, CABLESTOPPER, CABLE
-
4990119-069UJ-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
50F0D-6822E-00-00 GROMMETGROMMET
-
5190601-200U1-00 BANDBAND
-
52EW2-67243-00-00 KNOBKNOB
-
53F0N-6724E-00-00 NUT, COMPRESSIONNUT, COMPRESSION
-
54F0P-6724F-00-00 NUTNUT
-
55F0D-6822E-00-00 GROMMETGROMMET
-
56F0D-6773E-00-00 TUBE, 2TUBE, 2
-
5790601-200U1-00 BANDBAND
