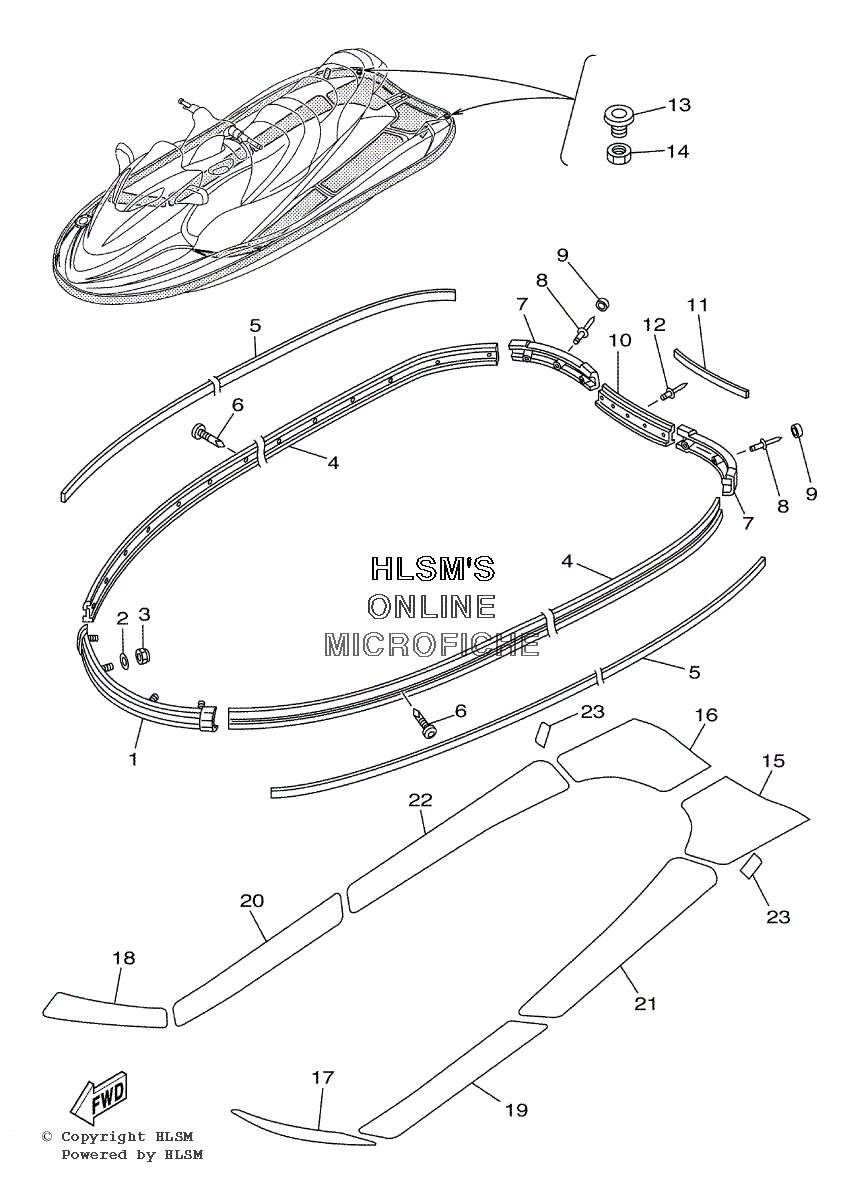

HULL - GUNWALE - MAT для Yamaha XL 1200 Z - 2001 года выпуска
-
№АртикулНазвание
-
1GP7-U2501-20-00 BOW GUNWALE COMP. (YB)BOW GUNWALE COMP. (YB)
-
29299R-06200-00 WASHERWASHER
-
39572R-06300-00 NUT, FLANGENUT, FLANGE
-
4F0D-U2512-00-00 GUNWALE, SIDE (YB)GUNWALE, SIDE (YB)
-
5F0D-U2519-00-00 INNER, GUNWALE (YB)INNER, GUNWALE (YB)
-
690169-059U1-00 SCREW, TAPPING 3SCREW, TAPPING 3
-
7F0D-U251D-00-00 GUNWALE, STERN 1GUNWALE, STERN 1
-
890267-489UT-00 RIVET, BLINDRIVET, BLIND
-
9F0D-U352E-00-00 MAT, BOW (DGY)MAT, BOW (DGY)
-
10F0D-U252C-00-00 COVER, GUNWALE 1 (YB)COVER, GUNWALE 1 (YB)
-
11F0D-U252D-00-00 COVER, GUNWALE 2 (YB)COVER, GUNWALE 2 (YB)
-
1290267-489US-00 RIVET, BLINDRIVET, BLIND
-
13GH1-61651-01-00 ROPE HOLEROPE HOLE
-
14EU0-61652-00-00 NUTNUT
-
15F0V-U358F-00-00 MAT, UPPER LH (BL)MAT, UPPER LH (BL)
-
16F0V-U358G-00-00 MAT, UPPER RH (BL)MAT, UPPER RH (BL)
-
17F0P-U351H-00-00 MAT, STEP 1 (BL)MAT, STEP 1 (BL)
-
18F0P-U351J-00-00 MAT, STEP 2 (BL)MAT, STEP 2 (BL)
-
19F0D-U351K-00-00 MAT, STEP 3 (BL)MAT, STEP 3 (BL)
-
20F0D-U351M-00-00 MAT, STEP 4 (BL)MAT, STEP 4 (BL)
-
21F0D-U351N-00-00 MAT, STEP 5 (BL)MAT, STEP 5 (BL)
-
22F0D-U351P-00-00 MAT, STEP 6 (BL)MAT, STEP 6 (BL)
-
23F0D-U351R-00-00 MAT, STEP 7 (BL)MAT, STEP 7 (BL)
