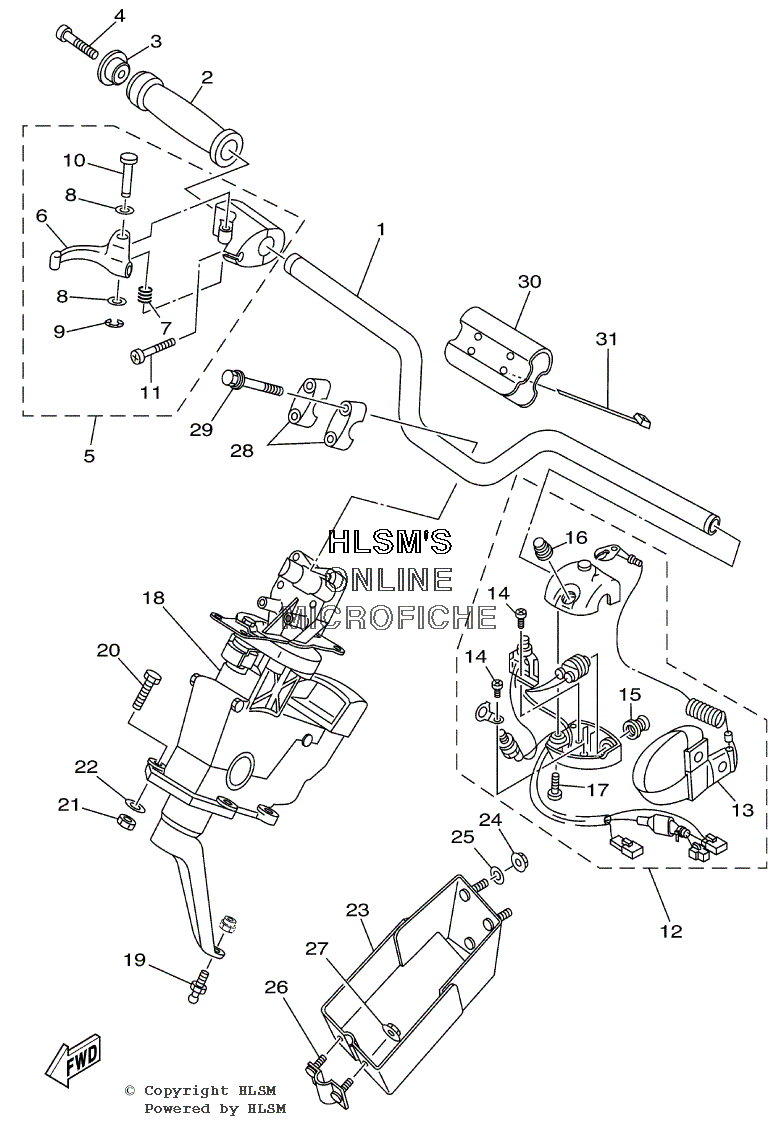

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha XL 1200 Z - 2001 года выпуска
-
№АртикулНазвание
-
1F0D-U1552-00-00 HANDLEHANDLE
-
2GP7-U155D-00-00 GRIP, HANDLEGRIP, HANDLE
-
3GP7-U155F-00-00 GRIP, ENDGRIP, END
-
490110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5F0D-67250-03-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
6F0D-67255-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
7EW2-67256-00-00 ...SPRING...SPRING
-
8EW2-67258-01-00 ...WASHER...WASHER
-
9EW2-67259-01-00 ...E-RING...E-RING
-
10F0D-67257-00-00 ...SHAFT...SHAFT
-
1198500-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
12F0D-68310-01-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
13EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
1497880-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
15FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
16FK7-68313-02-00 ...START BUTTON COMP....START BUTTON COMP.
-
1797880-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
18F0D-61400-03-00 STEERING MASTER ASSYSTEERING MASTER ASSY
-
19EU0-61461-02-00 STUD, JOINT BALLSTUD, JOINT BALL
-
2097080-08030-00 BOLTBOLT
-
219572R-08300-00 NUT, FLANGENUT, FLANGE
-
2290201-099U3-00 WASHER, PLATEWASHER, PLATE
-
23F0D-61467-00-00 BRACKET, STOPPER CABLEBRACKET, STOPPER CABLE
-
249572R-06300-00 NUT, FLANGENUT, FLANGE
-
259299R-06200-00 WASHERWASHER
-
26GH3-61468-00-00 STOPPER, CABLESTOPPER, CABLE
-
279572R-06300-00 NUT, FLANGENUT, FLANGE
-
28EU0-23814-30-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
2990119-089UU-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
30F0D-U156E-00-00 PAD 1PAD 1
-
3190601-200U2-00 BANDBAND
