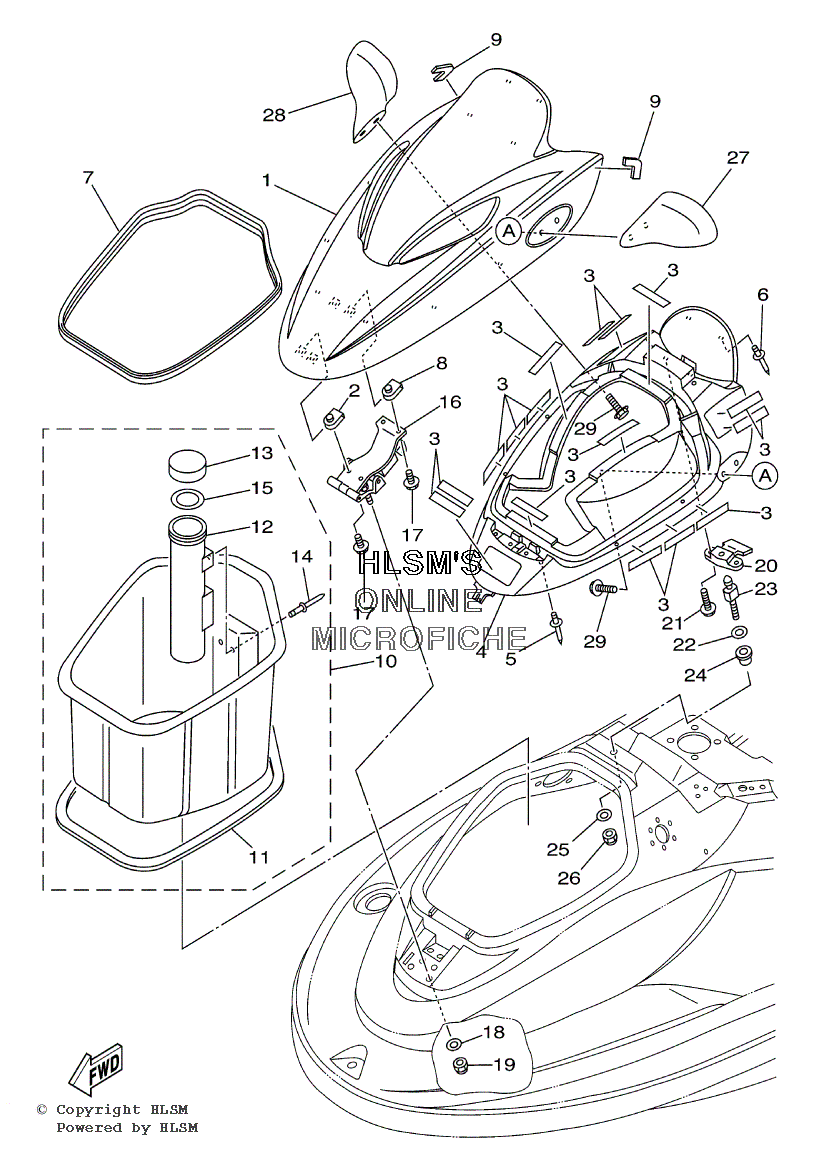

FRONT STORAGE W/ COVER для Yamaha XL 1200 Z - 2001 года выпуска
-
№АртикулНазвание
-
1F0V-U517B-00-P0 LID, ENGINE ROOM (LIGHT GRAY METALLIC)LID, ENGINE ROOM (LIGHT GRAY METALLIC)
-
290183-06902-00 NUT, SPRINGNUT, SPRING
-
3F0V-U3635-00-00 TAPE, FITTINGTAPE, FITTING
-
4F0V-U2103-00-00 VENTILATOR COVER COMP., 2VENTILATOR COVER COMP., 2
-
590267-489UN-00 RIVET, BLINDRIVET, BLIND
-
690267-48807-00 RIVET, BLINDRIVET, BLIND
-
7F0V-U266B-00-00 PACKING 3PACKING 3
-
890183-06902-00 NUT, SPRINGNUT, SPRING
-
9F0V-U517M-00-00 PAD, HATCH 1PAD, HATCH 1
-
10F0D-U475A-00-00 BOWLOCKER ASSYBOWLOCKER ASSY
-
11GJ3-U266C-31-00 ...PACKING 4...PACKING 4
-
12GP7-U5983-00-00 ...BOX, FIRE EXTINGUISHER...BOX, FIRE EXTINGUISHER
-
13EW2-U5912-01-00 ...CAP, CASE...CAP, CASE
-
1490267-489UP-00 ...RIVET, BLIND...RIVET, BLIND
-
15EW2-U5913-01-00 ...PACKING, CASE...PACKING, CASE
-
16F0V-6515A-00-00 HINGE ASSY.HINGE ASSY.
-
1790119-069UB-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1890201-06802-00 WASHER, PLATEWASHER, PLATE
-
199572R-06300-00 NUT, FLANGENUT, FLANGE
-
20F0D-6517C-04-00 LOCK, LIDLOCK, LID
-
2190119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
22F0V-U515E-00-00 DAMPER 2DAMPER 2
-
23F0D-63774-01-00 PINPIN
-
2490387-08802-00 COLLARCOLLAR
-
259299R-08200-00 WASHERWASHER
-
269572R-08300-00 NUT, FLANGENUT, FLANGE
-
27F0D-U596B-00-00 MIRROR LH (YB)MIRROR LH (YB)
-
28F0D-U596C-00-00 MIRROR RH (YB)MIRROR RH (YB)
-
2990119-089UN-00 BOLT, WITH WASHERBOLT, WITH WASHER
