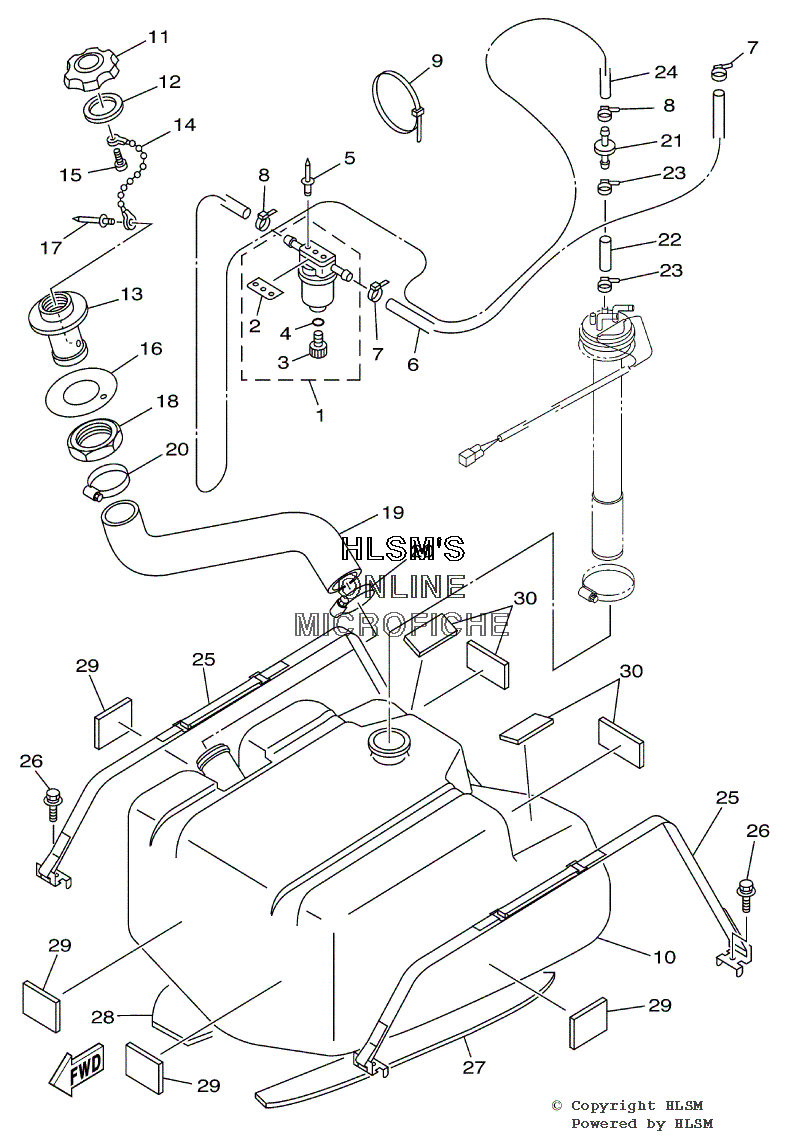

FUEL TANK для Yamaha XL 1200 Z - 2001 года выпуска
-
№АртикулНазвание
-
1EW2-62140-00-00 FILTER, VENT ASSYFILTER, VENT ASSY
-
2EW2-62142-00-00 ...PLATE, FILTER...PLATE, FILTER
-
370R-24543-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
470R-24489-00-00 ...O-RING...O-RING
-
590267-489U2-00 RIVET, BLINDRIVET, BLIND
-
6F0D-U785G-00-00 HOSE, AIR VENTHOSE, AIR VENT
-
790465-11829-00 CLAMPCLAMP
-
890465-11829-00 CLAMPCLAMP
-
990464-99804-00 CLAMPCLAMP
-
10F0D-U7711-00-00 TANK, FUELTANK, FUEL
-
11GP7-U7831-00-00 CAP, FUEL FILLER (PURE WHITE)CAP, FUEL FILLER (PURE WHITE)
-
12GP7-U7832-00-00 PACKINGPACKING
-
13GP7-U7833-00-00 SOCKETSOCKET
-
14GP7-U7835-00-00 CHAIN BALLCHAIN BALL
-
1590169-049U1-00 TAPPING SCREWTAPPING SCREW
-
16GP7-U7834-00-00 PACKING FUEL FILLERPACKING FUEL FILLER
-
1790267-329UR-00 RIVET, BLINDRIVET, BLIND
-
18GP7-U783F-00-00 NUT, FUEL FILLERNUT, FUEL FILLER
-
19F0D-U7844-00-00 HOSEHOSE
-
2090601-155U4-00 BAND, HOSE 5BAND, HOSE 5
-
21EU0-67767-31-00 CHECK VALVECHECK VALVE
-
22GP7-U785H-00-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
2390465-11829-00 CLAMPCLAMP
-
24F0D-U7856-00-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
25GH3-67743-01-00 BELT, TANK 1BELT, TANK 1
-
2690119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
27F0D-U759B-00-00 MAT 1MAT 1
-
28F0D-U759B-10-00 MAT 1MAT 1
-
29F0D-U759C-00-00 MAT 2MAT 2
-
30GJ1-U759C-00-00 MAT 2MAT 2
