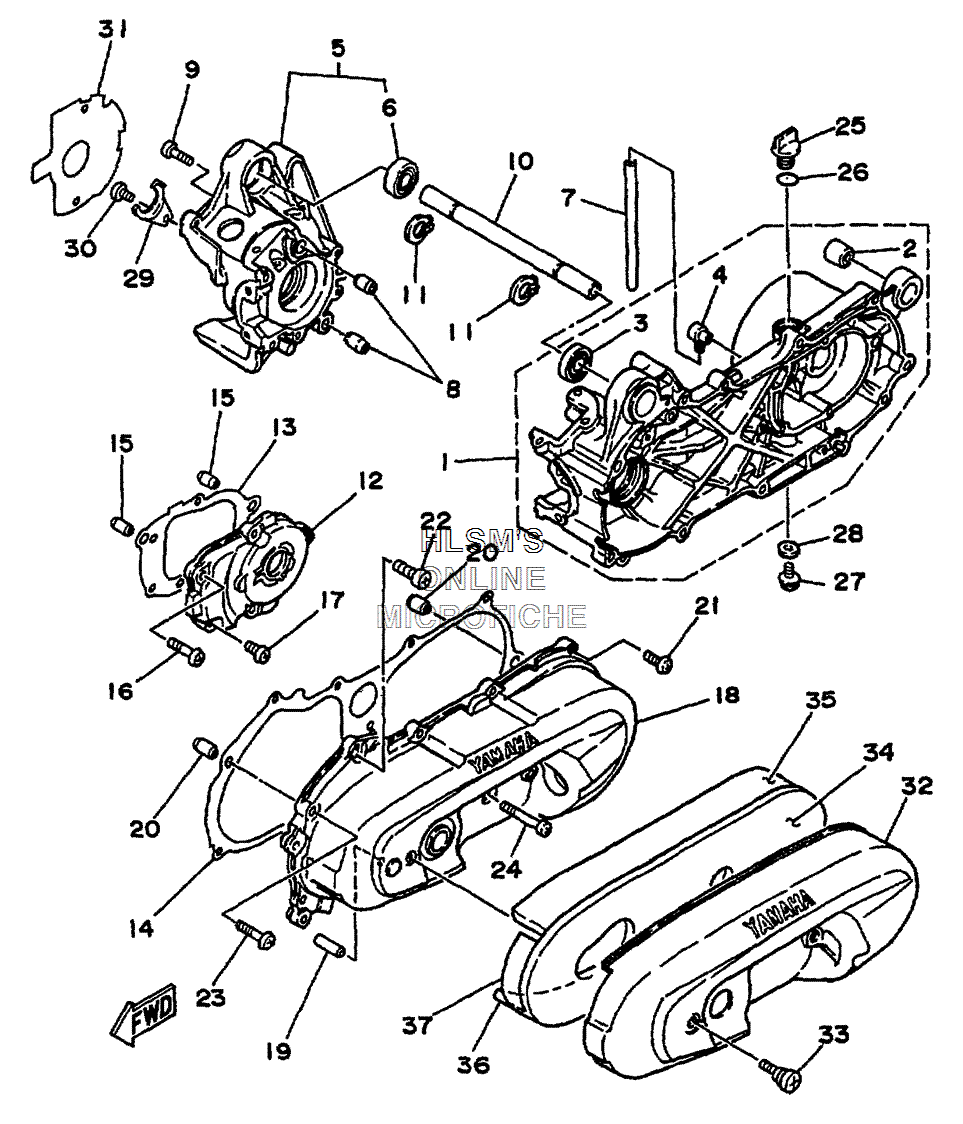

CRANKCASE ASSY. для Yamaha RIVA JOG - 2001 года выпуска
-
№АртикулНазвание
-
13KJ-15110-02-00 CRANKCASE ASSY. 1CRANKCASE ASSY. 1
-
2164-22216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
393306-00316-00 ...BEARING...BEARING
-
43YJ-15371-00-00 ...BREATHER...BREATHER
-
53KJ-15120-01-00 CRANKCASE ASSY. 2CRANKCASE ASSY. 2
-
693306-00316-00 ...BEARING...BEARING
-
791A20-07014-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
899510-12016-00 PIN, DOWELPIN, DOWEL
-
998507-06035-00 BOLT, SMALL FLANGEBOLT, SMALL FLANGE
-
103KJ-15317-00-00 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
1199009-17400-00 CIRCLIPCIRCLIP
-
123KJ-15421-00-00 COVER, CRANKCASE RCOVER, CRANKCASE R
-
134FB-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
144FB-15451-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
15995301-10014-00 PIN, DOWELPIN, DOWEL
-
1698507-06035-00 BOLT, SMALL FLANGEBOLT, SMALL FLANGE
-
1798517-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
183YJ-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
193KJ-15659-00-00 SHAFTSHAFT
-
2099530-10014-00 PIN, DOWELPIN, DOWEL
-
2198517-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2298580-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2398507-06035-00 BOLT, SMALL FLANGEBOLT, SMALL FLANGE
-
2498507-06065-00 SCREW, PAN HEADSCREW, PAN HEAD
-
254J2-15363-00-00 PLUG, OILPLUG, OIL
-
2693210-14104-00 O-RINGO-RING
-
2795817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2890201-08087-00 WASHER, PLATEWASHER, PLATE
