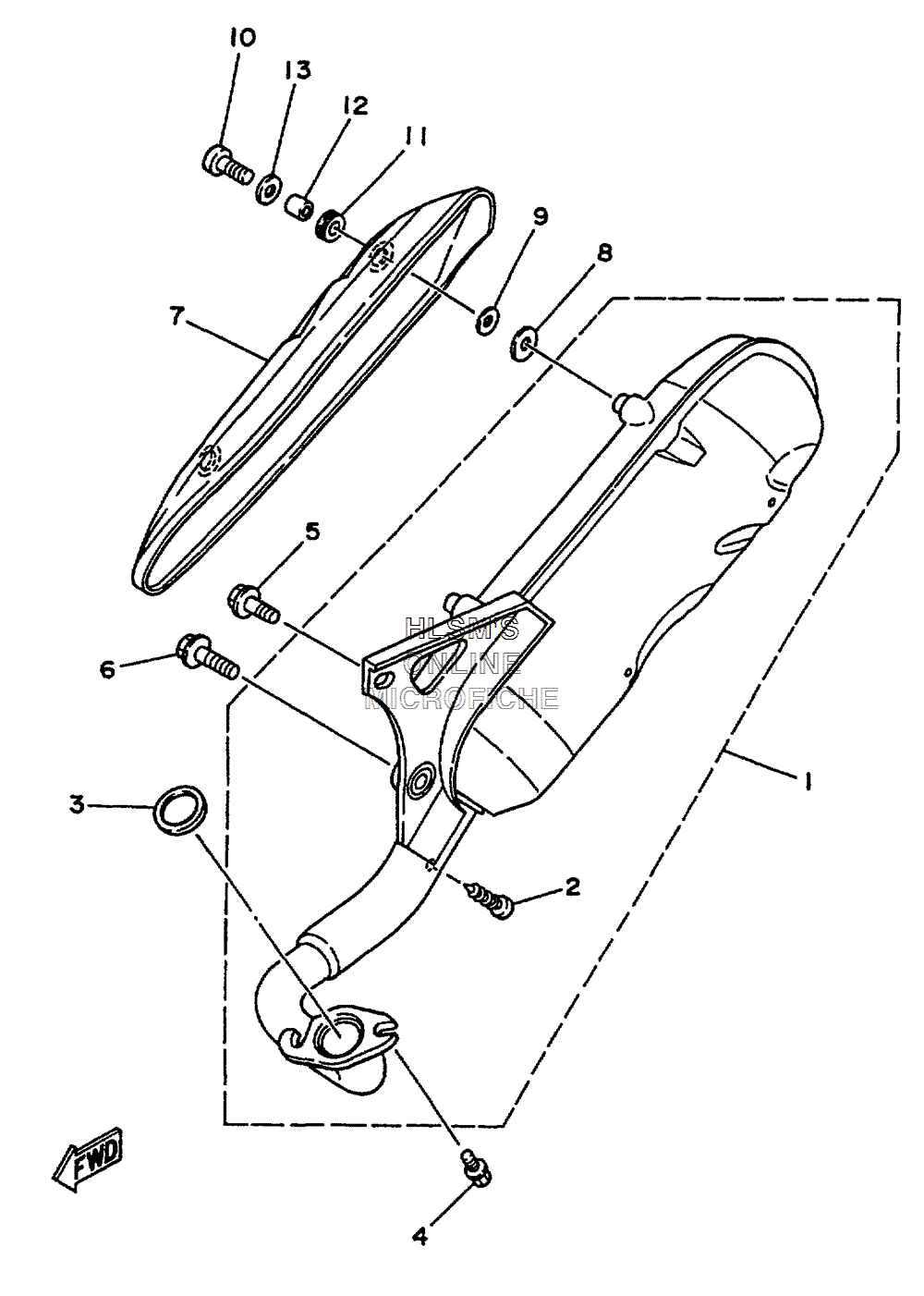

EXHAUST ASSY. для Yamaha RIVA JOG - 2001 года выпуска
-
№АртикулНазвание
-
13KJ-14610-12-00 EXHAUST PIPE ASSY. 1EXHAUST PIPE ASSY. 1
-
297707-30605-00 ...SCREW, TAPPING...SCREW, TAPPING
-
33HK-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
490153-06061-00 SCREW, HEXAGONSCREW, HEXAGON
-
595817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
695817-08030-00 BOLT, FLANGEBOLT, FLANGE
-
73VR-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
83HK-14766-01-00 WASHER, PROTECTORWASHER, PROTECTOR
-
992907-06200-00 WASHERWASHER
-
1098907-06016-00 SCREW, BINDSCREW, BIND
-
1190480-12237-00 GROMMETGROMMET
-
1290387-060G7-00 COLLARCOLLAR
-
134FB-14766-00-00 WASHER, PROTECTORWASHER, PROTECTOR
