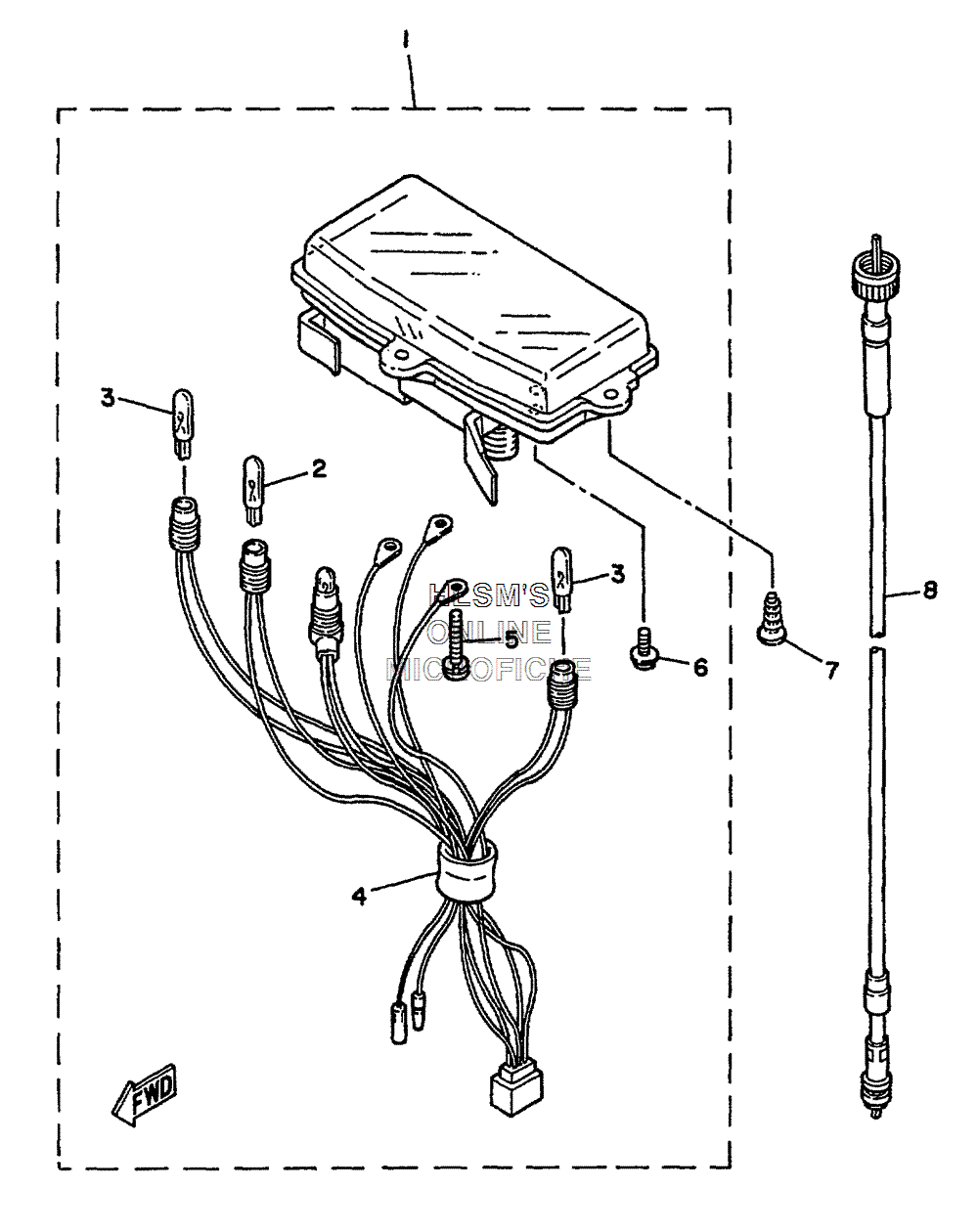

INSTRUMENT PANEL для Yamaha RIVA JOG - 2001 года выпуска
-
№АртикулНазвание
-
13YE-83510-00-00 SPEEDOMETER ASSY.SPEEDOMETER ASSY.
-
23GM-83517-00-00 ...BULB (12V-1.7W)...BULB (12V-1.7W)
-
34G1-84744-00-XX ...BULB (12V-3.4W T10)...BULB (12V-3.4W T10)
-
43SA-83509-00-00 ...SOCKET CORD ASSY....SOCKET CORD ASSY.
-
590159-03102-00 ...SCREW, WITH WASHER...SCREW, WITH WASHER
-
636F-83549-00-00 ...SCREW, TAPPING...SCREW, TAPPING
-
790167-05030-00 SCREW, TAPPINGSCREW, TAPPING
-
83SA-83550-00-00 SPEEDOMETER CABLE ASSY.SPEEDOMETER CABLE ASSY.
