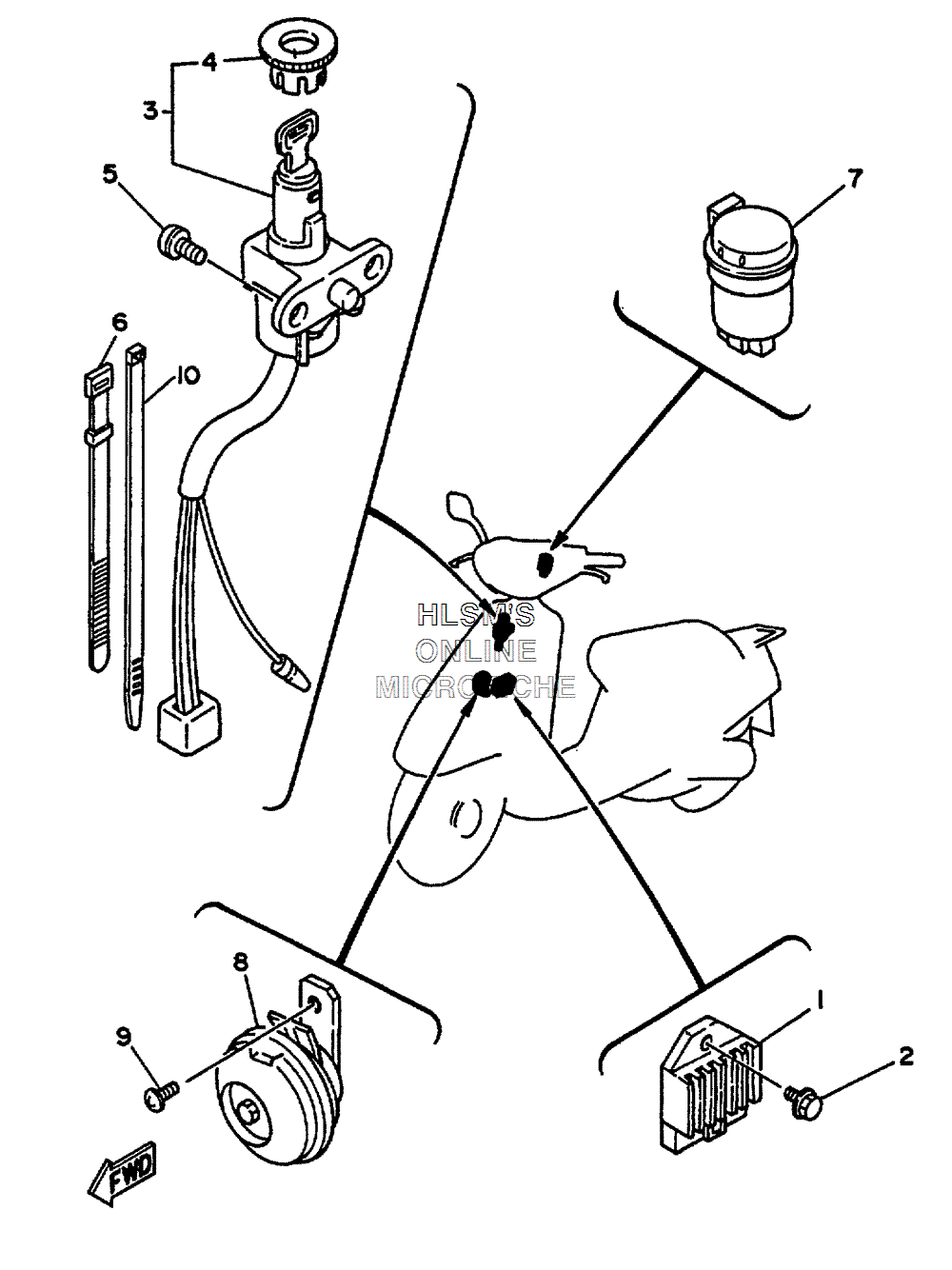

ELECTRICAL для Yamaha RIVA JOG - 2001 года выпуска
-
№АртикулНазвание
-
13YK-81960-00-00 RECTIFIER AND REGULATORRECTIFIER AND REGULATOR
-
295027-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
34FB-82501-00-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
42EX-82552-20-00 ...CAP, SWITCH...CAP, SWITCH
-
590149-06250-00 SCREWSCREW
-
625G-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
729G-83350-20-00 FLASHER RELAY ASSY.FLASHER RELAY ASSY.
-
84AG-83371-00-00 HORNHORN
-
995027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1012R-82591-00-00 BANDBAND
