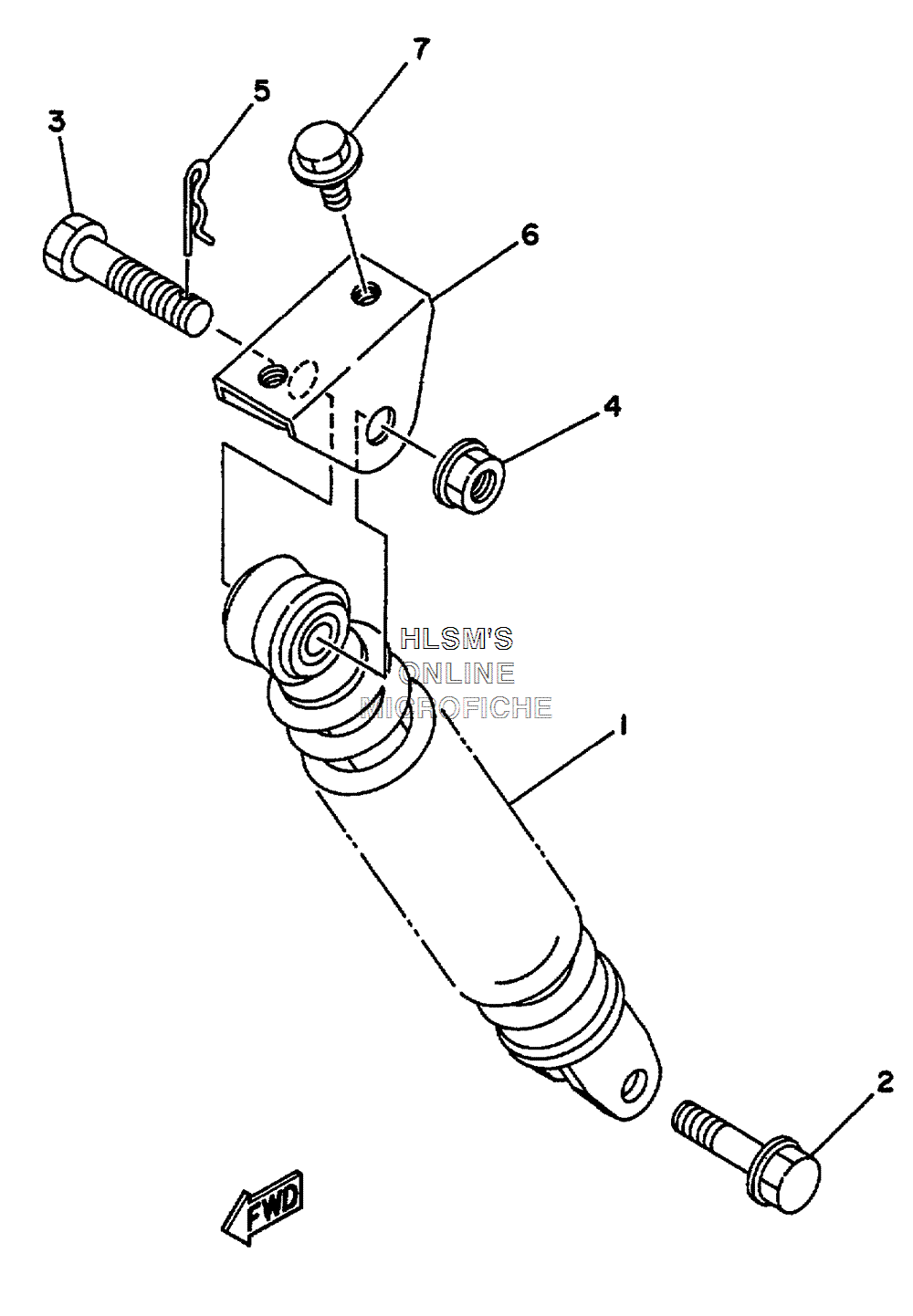

SUSPENSION - REAR SHOCK для Yamaha RIVA JOG - 2001 года выпуска
-
№АртикулНазвание
-
13YJ-22210-50-00 SHOCK ABSORBER ASSY., REARSHOCK ABSORBER ASSY., REAR
-
290105-08121-00 BOLT, FLANGEBOLT, FLANGE
-
390102-10031-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
495707-10500-00 NUT, FLANGENUT, FLANGE
-
590468-12006-00 CLIPCLIP
-
63KJ-21381-00-00 BRACKET, REAR SHOCK ABSORBERBRACKET, REAR SHOCK ABSORBER
-
795817-08012-00 BOLT, FLANGEBOLT, FLANGE
