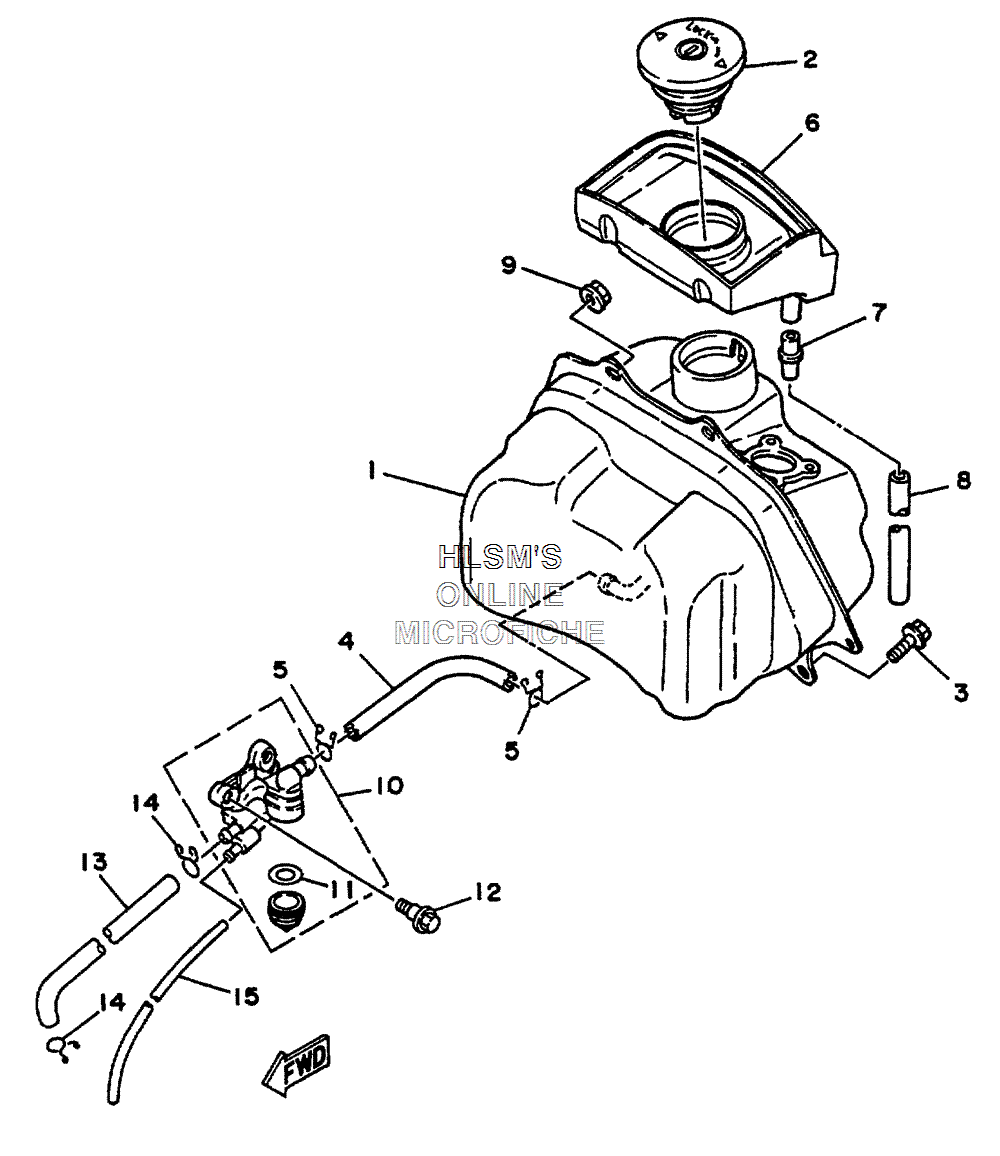

FUEL TANK ASSY. для Yamaha RIVA JOG - 2001 года выпуска
-
№АртикулНазвание
-
13KJ-24110-01-00 FUEL TANK COMP.FUEL TANK COMP.
-
24JP-24602-11-00 CAP ASSY.CAP ASSY.
-
395817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
490445-111G1-00 HOSEHOSE
-
590467-10129-00 CLIPCLIP
-
63KJ-2414A-01-00 COVER, FILLERCOVER, FILLER
-
74JP-21753-00-00 BOSS, CONNECTORBOSS, CONNECTOR
-
891A20-07033-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
995707-06500-00 NUT, FLANGENUT, FLANGE
-
103KJ-24500-02-00 FUEL COCK ASSY. (1)FUEL COCK ASSY. (1)
-
114X8-24565-00-00 ...GASKET...GASKET
-
1290109-063F5-00 BOLTBOLT
-
132KJ-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
1490467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
1590445-071G6-00 HOSEHOSE
