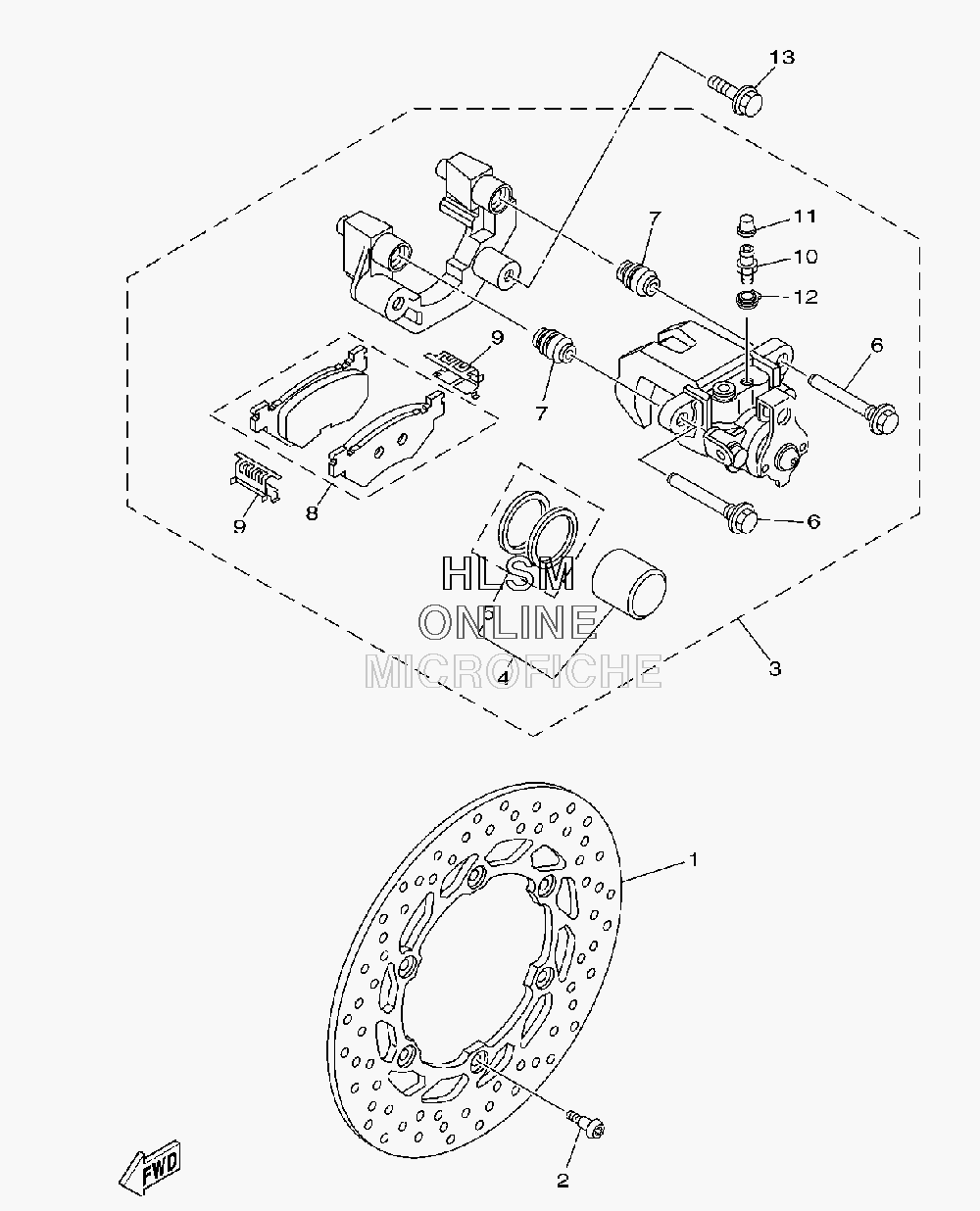

BRAKE - REAR CALIPER для Yamaha TMAX (XP500YY) (YELLOW) - 2009 года выпуска
-
№АртикулНазвание
-
14B5-2582V-00-00 DISC, REAR BRAKE 1DISC, REAR BRAKE 1
-
290109-064G6-00 BOLTBOLT
-
34B5-2580V-00-00 CALIPER ASSY, REAR 1CALIPER ASSY, REAR 1
-
44D9-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
55GJ-W0047-01-00 CALIPER SEAL KITCALIPER SEAL KIT
-
64D9-25914-10-00 PIN, SLIDEPIN, SLIDE
-
74TT-25937-00-00 BOOT 2BOOT 2
-
85RU-W0046-00-00 BRAKE PAD KIT 2BRAKE PAD KIT 2
-
94TT-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
105GM-25824-00-00 SCREW, BLEEDSCREW, BLEED
-
111D7-25825-00-00 CAPCAP
-
125GM-25975-00-00 RUBBER, BUSHINGRUBBER, BUSHING
-
1390105-10638-00 BOLT, FLANGEBOLT, FLANGE
