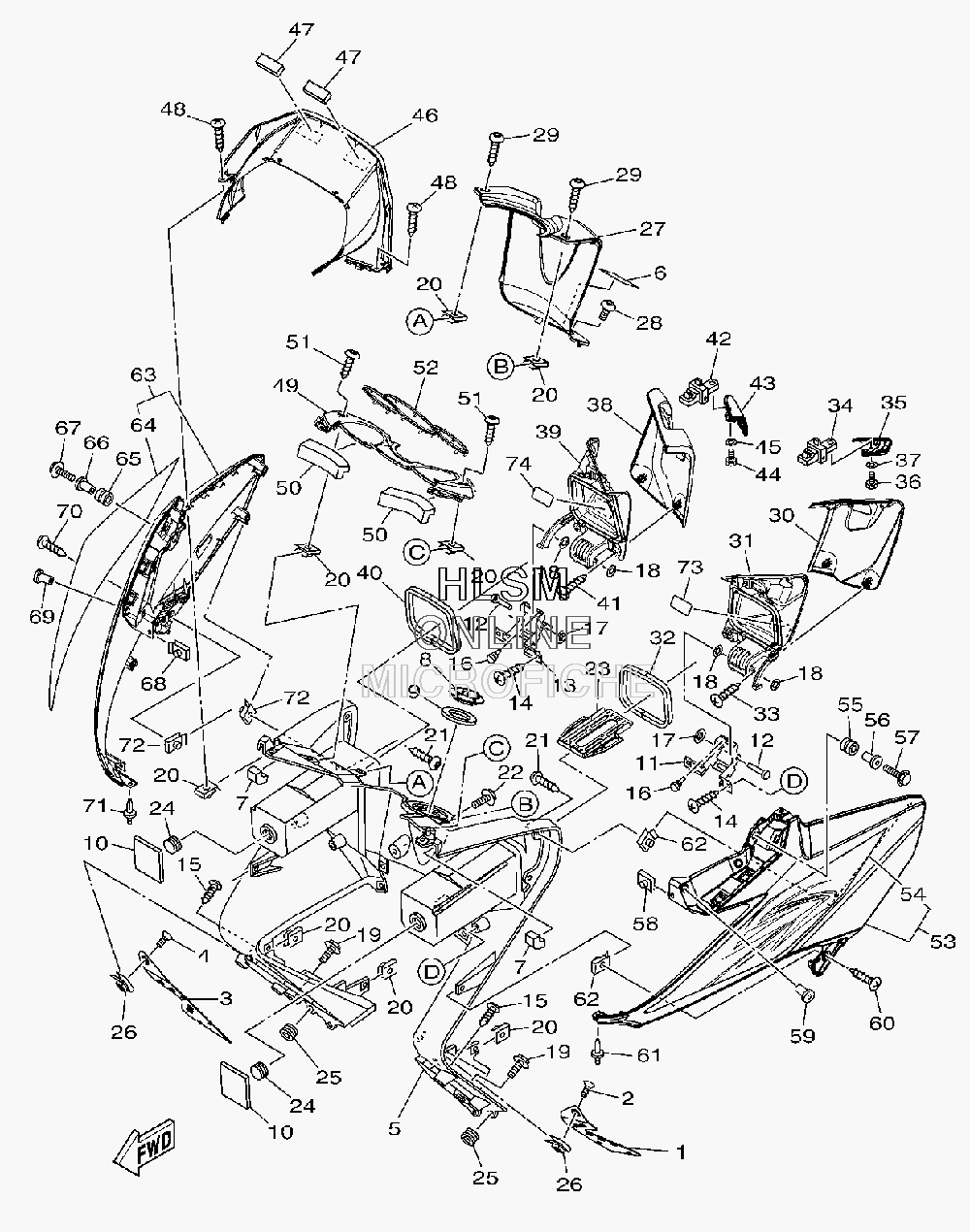

COWLING W/ LEG SHIELD для Yamaha TMAX (XP500YY) (YELLOW) - 2009 года выпуска
-
№АртикулНазвание
-
14B5-27411-00-00 FOOTREST 1FOOTREST 1
-
290151-06052-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
34B5-27421-00-00 FOOTREST 2FOOTREST 2
-
490151-06052-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
54B5-28311-00-00 LEG SHIELD 1LEG SHIELD 1
-
64C8-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
74B5-2836U-01-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
84B5-82552-00-00 CAP, SWITCHCAP, SWITCH
-
95VU-28307-00-00 SEALSEAL
-
104B5-28416-00-00 DAMPER 2DAMPER 2
-
114B5-21796-01-00 HINGEHINGE
-
1290241-06002-00 PINPIN
-
134B5-21797-00-00 HINGEHINGE
-
1490160-04008-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
1597702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1690338-05009-00 PLUGPLUG
-
1790183-06008-00 NUT, SPRINGNUT, SPRING
-
1890202-06004-00 WASHER, PLATEWASHER, PLATE
-
1990119-06209-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2090183-05042-00 NUT, SPRINGNUT, SPRING
-
2190167-05076-00 SCREW, TAPPINGSCREW, TAPPING
-
2290119-06212-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
234B5-2839N-00-00 HOLDERHOLDER
-
2490338-20113-00 PLUGPLUG
-
2590480-13567-00 GROMMETGROMMET
-
2690183-060A8-00 NUT, SPRINGNUT, SPRING
-
274B5-28312-00-00 LEG SHIELD 2LEG SHIELD 2
-
2890111-06095-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2990169-05003-00 TAPPING SCREWTAPPING SCREW
-
304B5-28313-00-00 LIDLID
-
314B5-2836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
324B5-28371-00-00 DAMPERDAMPER
-
3390160-04008-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
344B5-21780-00-00 LOCK ASSYLOCK ASSY
-
354B5-2836X-00-00 KNOB, 1KNOB, 1
-
3697022-05012-00 BOLTBOLT
-
3790201-05043-00 WASHER, PLATEWASHER, PLATE
-
384B5-2839K-00-00 LID 1LID 1
-
394B5-2836N-00-00 PANEL, INNER 4PANEL, INNER 4
-
404B5-28371-00-00 DAMPERDAMPER
-
4190160-04008-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
424B5-21780-00-00 LOCK ASSYLOCK ASSY
-
434B5-2836Y-00-00 KNOB, 2KNOB, 2
-
4497022-05012-00 BOLTBOLT
-
4590201-05043-00 WASHER, PLATEWASHER, PLATE
-
464B5-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
474B5-2814E-00-00 HOOKHOOK
-
4897702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
494B5-28346-00-00 MOLE 2MOLE 2
-
504B5-2834E-00-00 DAMPER 3DAMPER 3
-
5190167-05076-00 SCREW, TAPPINGSCREW, TAPPING
-
524B5-2839R-00-00 PANEL, ACCESSORYPANEL, ACCESSORY
-
534B5-Y2835-40-P4 COWLING SUB ASSY FOR RYC1COWLING SUB ASSY FOR RYC1
-
544B5-28391-10-00 GRAPHIC 1GRAPHIC 1
-
5590480-14003-00 GROMMETGROMMET
-
5690387-0602X-00 COLLARCOLLAR
-
5795802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
5890183-060A6-00 NUT, SPRINGNUT, SPRING
-
5990179-05523-00 NUTNUT
-
6097702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
6190269-06008-00 RIVETRIVET
-
6290183-05042-00 NUT, SPRINGNUT, SPRING
-
634B5-Y2877-40-P4 COWLING SUB ASSY 2 FOR RYC1COWLING SUB ASSY 2 FOR RYC1
-
644B5-28392-10-00 GRAPHIC 2GRAPHIC 2
-
6590480-14003-00 GROMMETGROMMET
-
6690387-0602X-00 COLLARCOLLAR
-
6795802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
6890183-060A6-00 NUT, SPRINGNUT, SPRING
-
6990179-05523-00 NUTNUT
-
7097702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
7190269-06008-00 RIVETRIVET
-
7290183-05042-00 NUT, SPRINGNUT, SPRING
-
735RU-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
745RU-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
