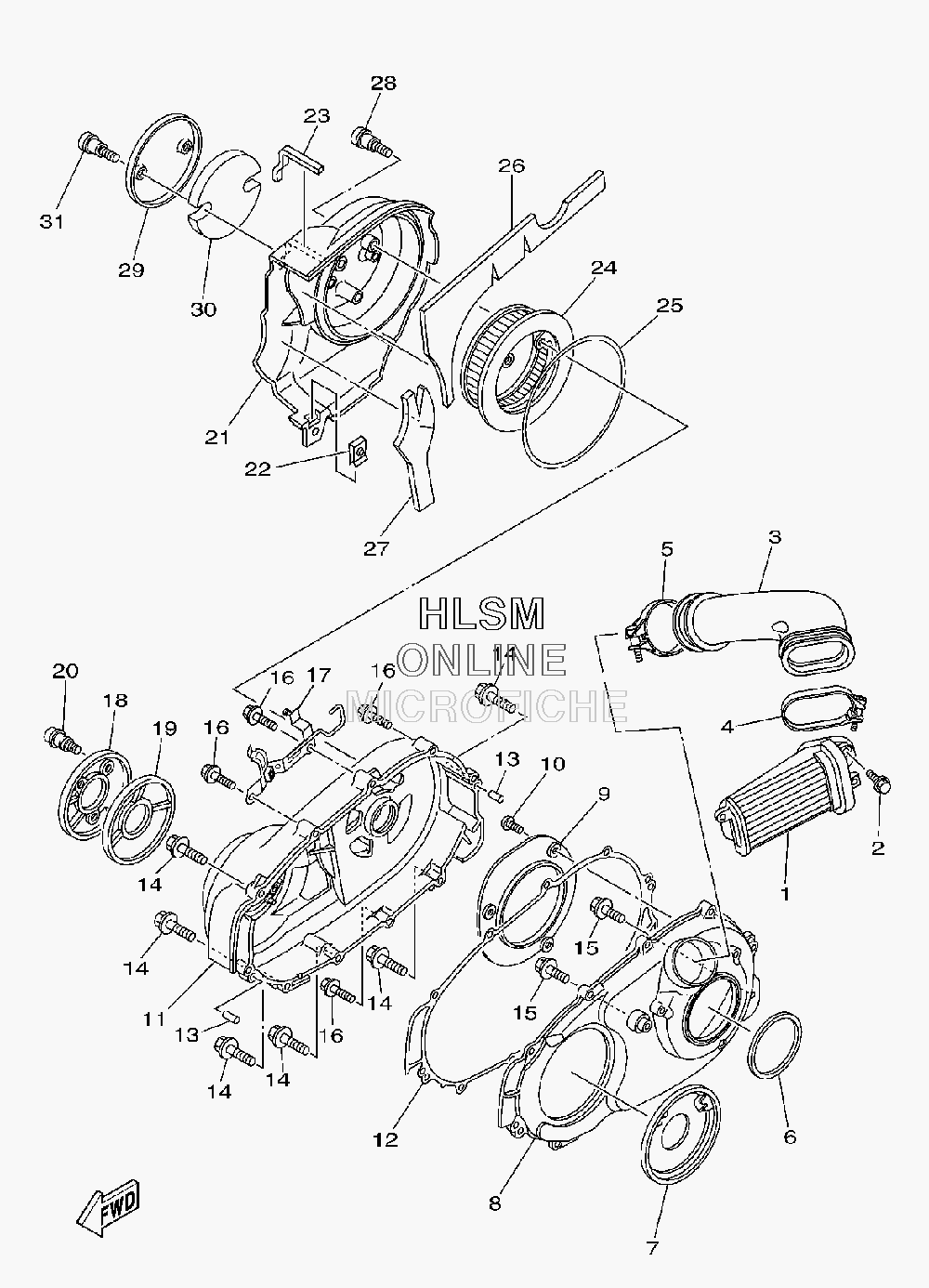

CRANKCASE COVER 2 для Yamaha TMAX (XP500YY) (YELLOW) - 2009 года выпуска
-
№АртикулНазвание
-
14B5-15407-00-00 ELEMENT 1ELEMENT 1
-
295822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
34B5-15473-00-00 DUCT, AIRDUCT, AIR
-
490450-01001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
590450-72005-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
65GJ-15474-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
715B-15191-00-00 PLATEPLATE
-
85GJ-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
95GJ-15113-00-00 PLATEPLATE
-
1092012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
115GJ-15421-01-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
125GJ-15461-01-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1399480-08020-00 PINPIN
-
1495022-08040-00 BOLT, FLANGEBOLT, FLANGE
-
1595022-08025-00 BOLT, FLANGEBOLT, FLANGE
-
1695022-06035-00 BOLT, FLANGEBOLT, FLANGE
-
174B5-26279-01-00 GUIDE, CABLEGUIDE, CABLE
-
184B5-15492-00-00 COVERCOVER
-
195GJ-1542A-00-00 DAMPER 1DAMPER 1
-
203KJ-15481-00-00 BOLT 1BOLT 1
-
214B5-15423-00-00 COVER 2COVER 2
-
2290183-05042-00 NUT, SPRINGNUT, SPRING
-
233CV-28378-00-00 PADPAD
-
245GJ-15408-00-00 ELEMENT 2ELEMENT 2
-
2548U-14452-00-00 SEALSEAL
-
264B5-15326-00-00 DAMPER 2DAMPER 2
-
275GJ-1542B-00-00 DAMPER 2DAMPER 2
-
283KJ-15481-00-00 BOLT 1BOLT 1
-
295GJ-15499-10-00 PROTECTOR, COVERPROTECTOR, COVER
-
305GJ-15789-00-00 DAMPERDAMPER
-
313KJ-15481-00-00 BOLT 1BOLT 1
